Jacto DJB-20S - Sprayer Assembly; Lance to Trigger Valve Assembly; Hose to Sprayer Assembly; Electric Cord Installation

8/52
trigger valve
Spray lance
trigger valve
hose

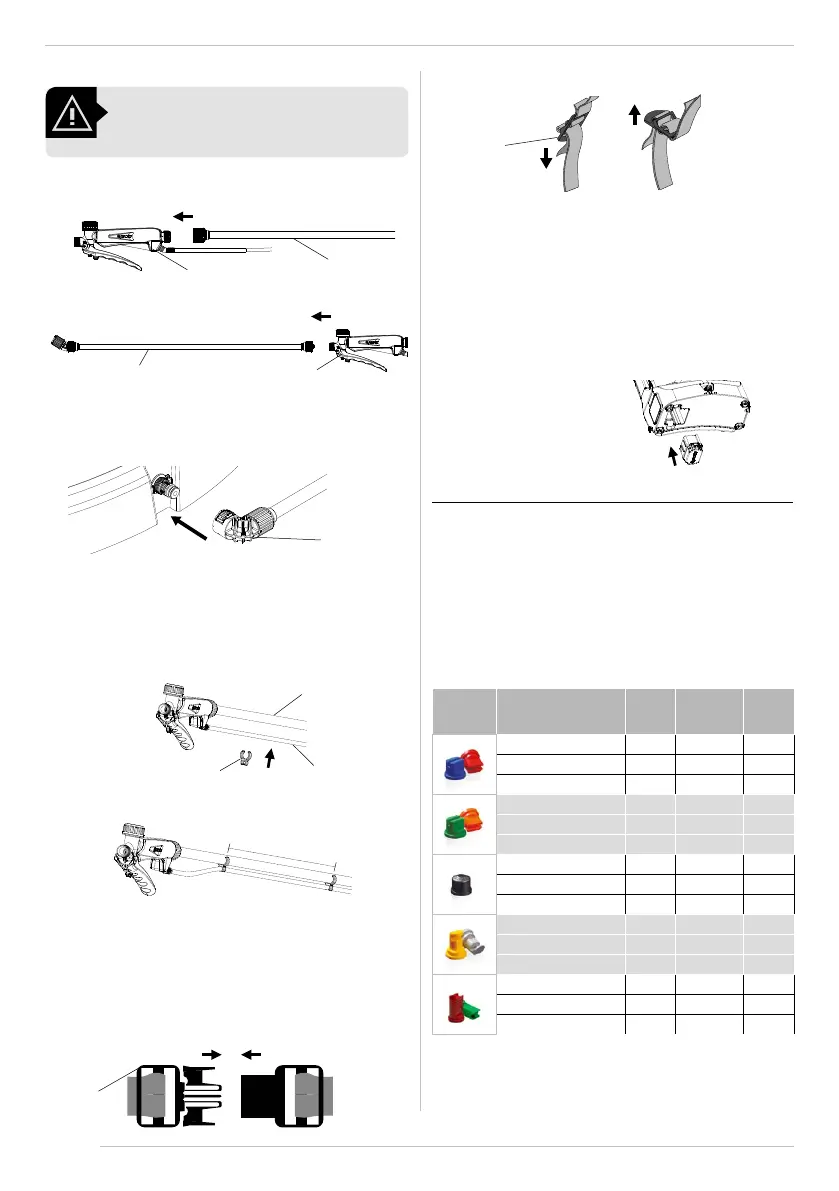

8.2. Assembling the lance to the trigger valve
WARNING!
Do not overtighten the screw cap.
8.3. Assembling the hose to the sprayer
• Plug the connector into the quick coupler and press until it clicks.
• Fit the lance into the trigger valve and thread enough so that there is no leak-
age, as shown in the image below:
• Next, t the trigger valve in the spray lance.
8.4. Installing the electric cord in the hose
• For better and safer use of the equipment, use fasteners to secure the electric
cord to the hose.
8.5. Shoulder strap adjust
The tank is contoured for the operator comfort. The shoulder straps can be quickly
adjusted to properly position the sprayer on the operator’s back.
• Close the buckle to better adjust the strap and ensure the safety of the oper-
ator and the equipment.
• Use the buckles to adjust the strap as desired.
• Fit the fasteners separately to secure the entire cord to the hose.
Hose
Electric cord
Buckle
Buckle
Fastener
Quick coupler
To remove the battery:
1. Press both locking buttons;
2. Pull the battery out of the
battery housing.
8.6. Installing and removing the battery
To install the battery:
1. Locate the battery housing, on the bottom of the sprayer’s base, as shown
in the gure.
2. Identify the correct battery position according to the position guides. Do
not force to install the battery in the wrong position.
3. Press the battery until a “click” is heard.
9. Operating Instructions
The following steps describe how to safely use the sprayer.
9.1. Choosing nozzle type
Our sprayers are compatible with all ISO certied nozzles or hydraulic tips. Each
nozzle oers a range of options and specications for product application, so it
is extremely important to know how to choose the right nozzle for your equip-
ment. See the table below to identify which nozzle is best suited for ow rate and
droplet size
NOTE: The following nozzles are optional, so they do not accompany this sprayer.
Nozzle
type
Identication (code)
Pressure
(psi)
Droplet size
(vmd )
Flow
rate
(l/min)
JEF 8001 orange (1197534) 45 VF 0,40
JEF 80015 green (1197535) 45 VF 0,60
JEF 8002 yellow (1197536) 45 VF 0,80
JSF 11001 orange (1197473) 30 F 0,33
JSF 110015 green (1197475) 30 F 0,49
JSF 11002 yellow (1197476) 30 F 0,65
JHC 80015 green (1197555) 60 F 0,69
JHC 8002 yellow (1197565) 60 F 0,92
JHC 8003 blue (1197571) 60 F 1,36
JDF 02 yellow (1197483) 30 M 0,65
JDF 03 blue (1197485) 30 M 0,98
JDF 03 red (1197486) 30 M 1,31
AirMix 110015 green (255091) 20 C 0,41
AirMix 11002 y el l ow (255109) 20 C 0,54
AirMix 110025 lilac (255177) 20 C 0,68
NOTE: To t the quick coupler more easily, apply graphite-based grease around
the connector sealing ring.
