Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 21 FL61000B • 10/07

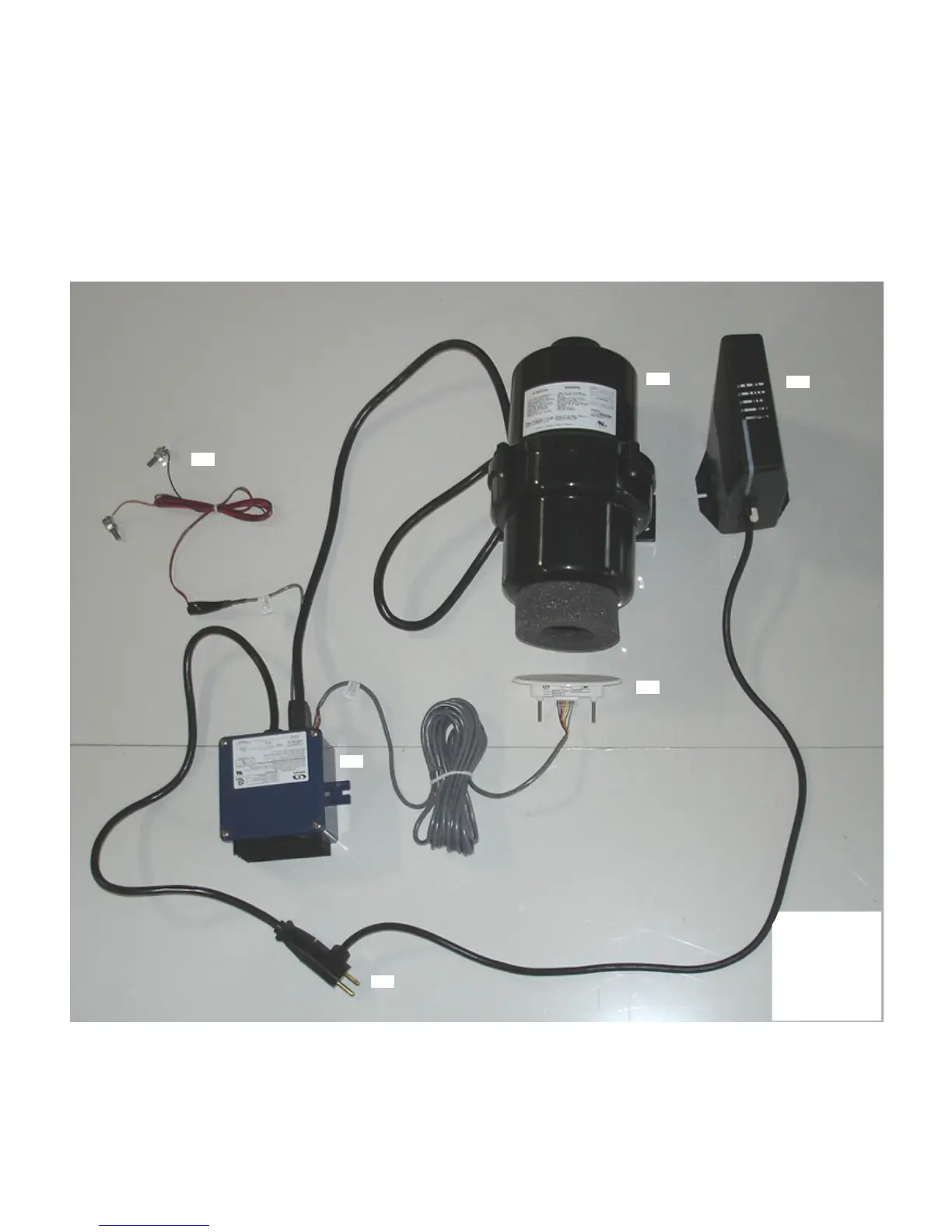

AIRBATH INTERCONNECTION DIAGRAM
The Airbath equipment is shown in the following gure. It
shows the only acceptable manner in which the system
components may be interconnected for efcient and safe
operation. If the equipment is not congured as shown in
the gure, the equipment may not operate or it may result
in damage to the equipment
MODEL NUMBERS
EV95, EW00, EW25, EW30,
EY20, EY25, EY60, and EY75
See Specications for details
ELECTRICAL SPECS
Requires a separate dedicated GFCI protected circuit
Blower: 115 VAC, 15 A, 60 Hz
B
C
A
E
D
LEGEND
A Water sensors
B Blower
C Ozone system
D Control panel
E Control box
F GFCI Plug, 15 A
F
