J-200 Series
To gain access to the spa’s power terminal block, remove the screws secur-
ing the synthetic cabinet panel under the control panel (Figure A). Then
remove the four control box door screws and door (Figure B).
Select the power supply inlet you want to use (Figure A). Feed power cable
to control box, then install it through the large opening provided in the bot-
tom side of the box.
Connect wires, color to color, on terminal blocks TB1 and TB3 (Figure C,
page 15). TIGHTEN SECURELY! All wires must be hooked up securely or
damage could result.
Figure-B - Control Box
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
TB1
3
2
1
7
8
36
2 2

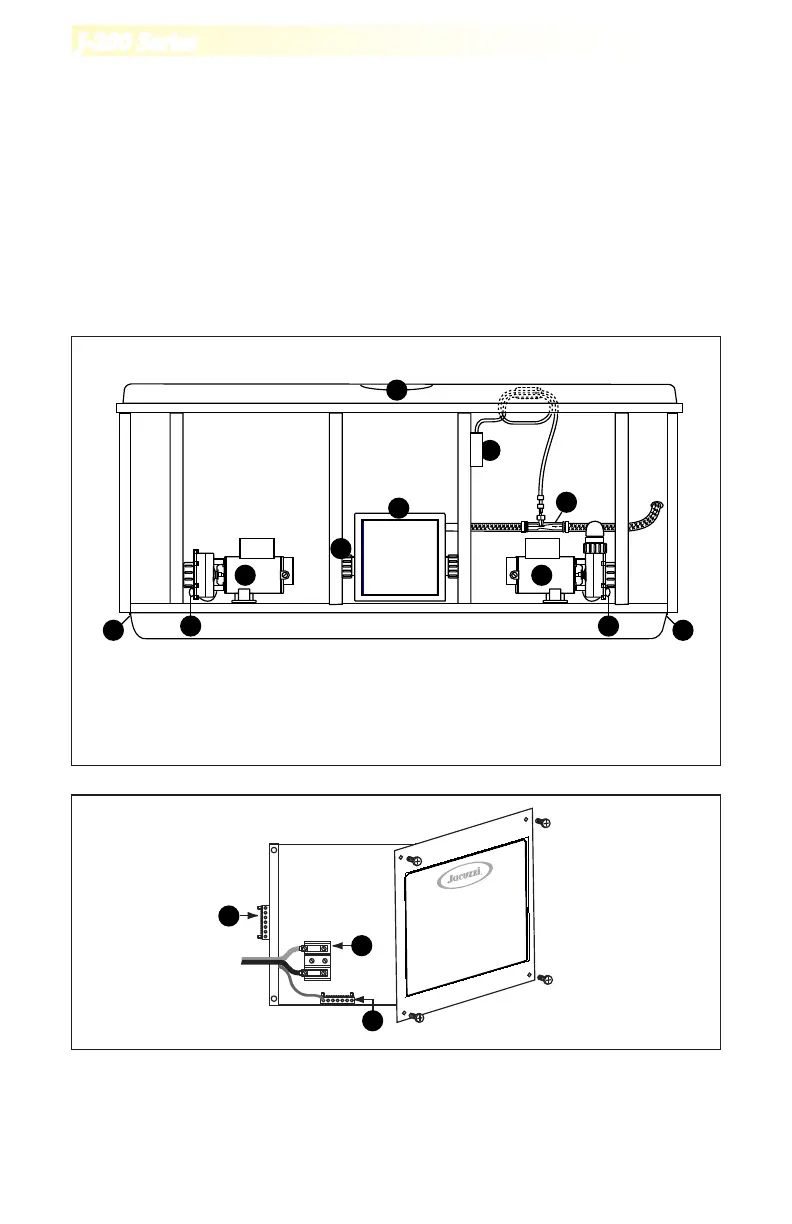

Figure-A
Equipment Area
1. Control Box
2. Power Supply Inlet(s)
3. 2-Speed Pump #1
4. Heater
5. Pump Drain Plug
Flow
Note: Pump Locations Vary by Model
5 5
1
4
6. 1-Speed Pump #2
7. Optional CD Ozonator (Purchased Separately)
8. Ozone Injector
9. Control Panel
9
7.
8.
9.
14
To Next Page
