17.0 Dip Switch Settings and Wiring
17.1 Switch settings for Domestic 60Hz Models
The dip switches are at the S1 location on the board.
A. 2-Pump Models
BREAKER
DIP SWITCH NUMBER
1 2 3 4 5 6 7 8 9** 10
40A OFF OFF OFF OFF OFF OFF OFF OFF ON OFF
50A* OFF OFF ON OFF OFF OFF OFF OFF ON OFF
60A OFF OFF OFF ON OFF OFF OFF OFF ON OFF
*50A is the factory default setting
**Dip switch #9 must be ON for a 2-pump model

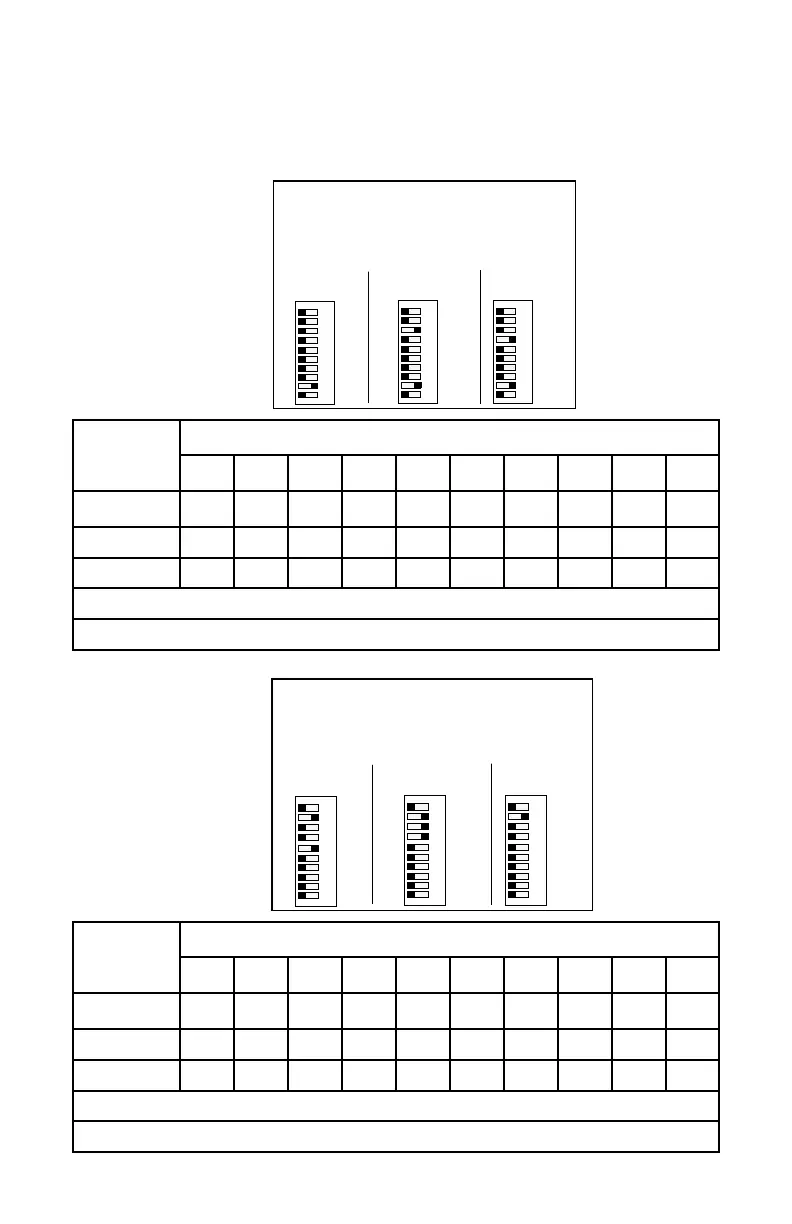

B. 1-Pump Models
240V DOMESTIC
DIP SWITCH SETTINGS
S1 LOCATION
40A
50A
(factory default)
60A
1
2
3
4
5
6
7
8
9
10
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
ONOFF
120V/240V CONVERTIBLE
DOMESTIC DIP SWITCH SETTINGS
S1 LOCATION
15A
(factory default)
30A 40A
1
2
3
4
5
6
7
8
9
10
OFF
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ONOFF
1
2
3
4
5
6
7
8
9
10
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
ONOFF
BREAKER
DIP SWITCH NUMBER
1 2 3 4 5 6 7 8 9** 10
15A* OFF ON OFF OFF ON OFF OFF OFF OFF OFF
30A OFF ON ON ON OFF OFF OFF OFF OFF OFF
40A OFF ON OFF OFF OFF OFF OFF OFF OFF OFF
*15A is the factory default setting (GFCI Cord)
**Dip switch #9 must be OFF for a 1-pump model
