Jacuzzi J-300 Installation, Use & Maintenance Manual

71
J-335/345/355/365/375/385
GRN
A B C D
CIRC PUMP
OZONE
P1 2SPD
P2 1SPD
UV
A/V
STEP LIGHT
(OPTIONAL)
5AT~250V
30A (PMP 1)
30A (PMP 2)
J33
J36 J53
J41
J46
J47
J51
J59
J38
J44
J49
J22
J23
J24
J9
J14
J18
J17
J50
F4
J27
J34J29
F6
J56
J57
S1
ZONE 1
ZONE 2
F2
J35
J37
4A
5A

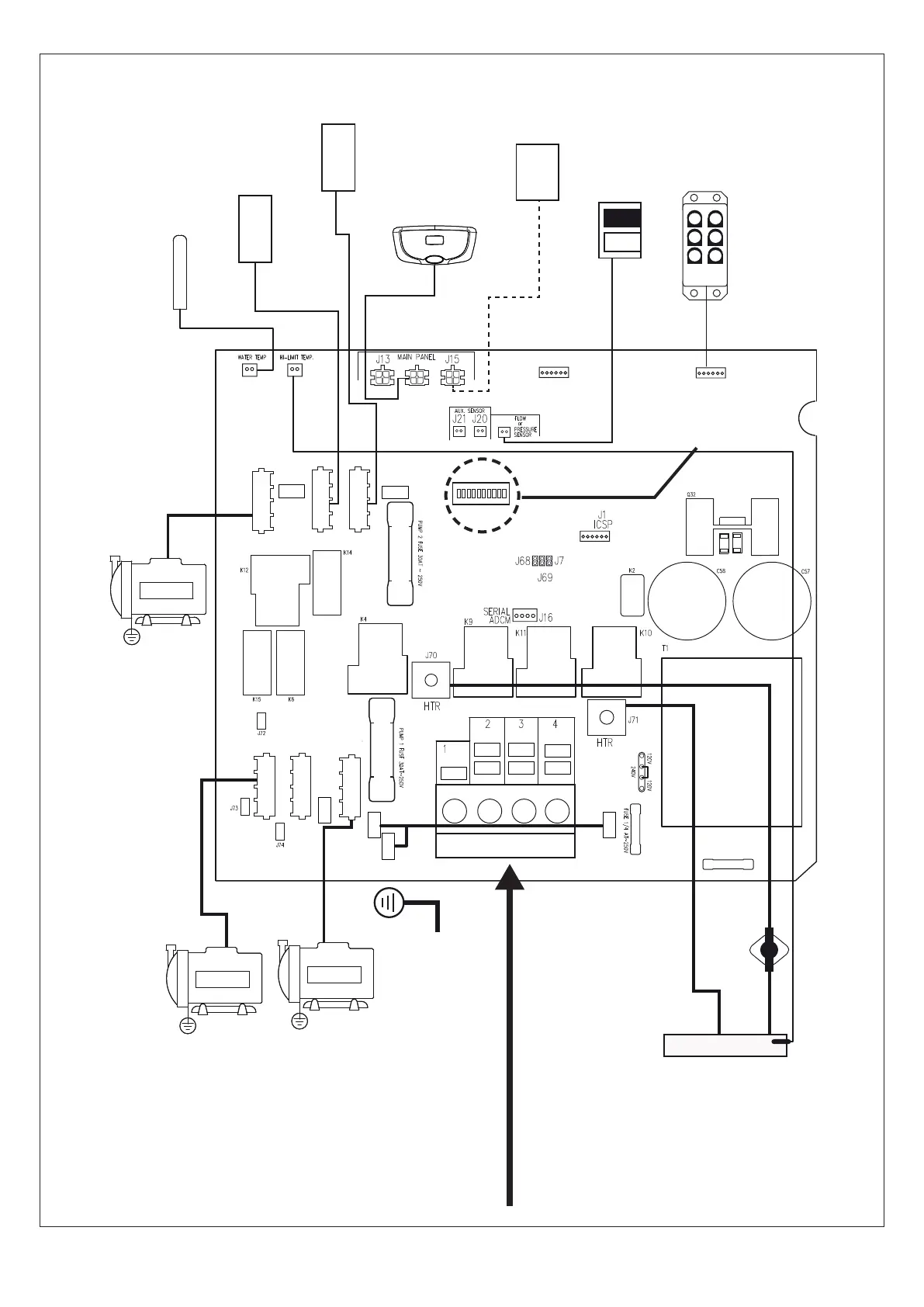

1 2 3 4 5 6 7 8 9 10
Riscaldatore-2,7 kW
2,7 kW Heater
Chaue au 2,7 kW
- vedi “impostazione dei dip switch”
- see “Setting the dip switches”
- voir « conguration des dip switch »
Pannello di controllo
Control panel
Panneau de commande
Pompa di ricircolo
Circulation pump
Pompe de circ
230V - 50 Hz
- 1 linea/line/ligne (1L)
- 2 linee/lines/lignes (2L)
- 3 linee/lines/lignes(3L)
- vedere “Collegamento dell’alimentazione elettrica”
- see “Connecting the electrical power supply”
- voir « Branchement de l'alimentation électrique »
Pompa 1
Pump 1
Pompe 1
Pompa 2
Pump 2
Pompe 2
Sensore portata
Flow sensor
CAPTEUR DE
DÉBIT
Sensore acqua
Water sensor
CAPTEUR D'EAU
Clearray
Alimentazione stereo
Stereo power supply
ALIMENTATION STÉRÉO
SmartTub™
(optional)

Jacuzzi J-300 Specifications

General

Shell Material	Acrylic
Dimensions	84" x 84" x 36"
Pumps	2
Pump	2 HP
Cabinet Material	Synthetic
Insulation	Full foam
Control System	Digital
Lighting	LED
Warranty	5 years
