Installation & Operating Instructions
Cover

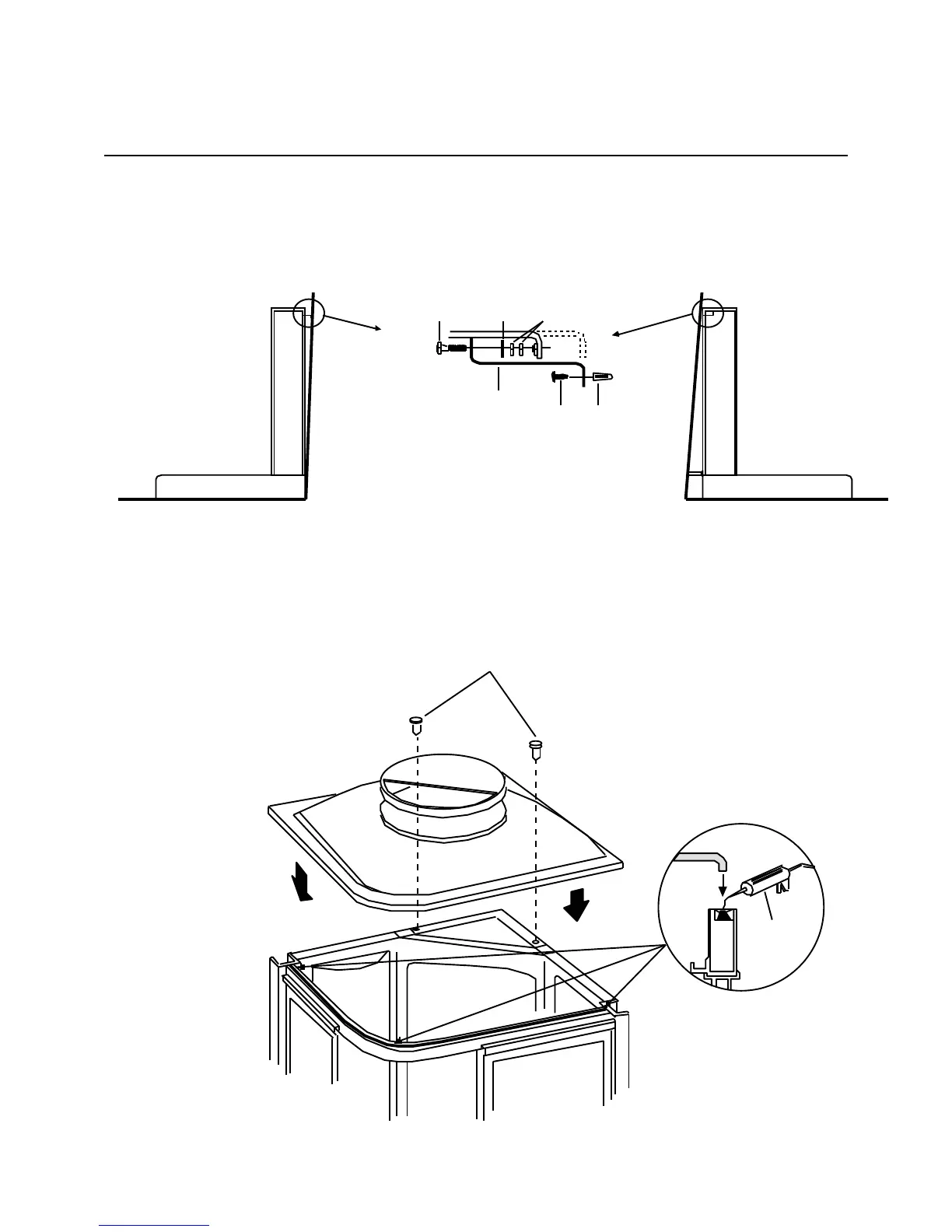

Lay a bead of sealant on top of frame as shown in illustration. Lay
cover in place making sure that the holes in the cover line up with
the holes in the frame and then install the two locating pins provided.
Anchoring the J-Carré to the Wall
Anchor unit to the wall using the "S" brackets, hex bolts, hex nuts, washers, wall
anchors and screws provided as shown below.
This will also provide an adjustment for squaring the shower wall to the shower pan.
SEALANT
LOCATING PINS
HEX NUTSHEX BOLT WASHER
SCREW WALL
ANCHOR
"S" BRACKET
9
To Next Page
