Installation & Operating Instructions
WASHING
MACHINE
OUTLET BOX
CONNECT #8 GAUGE (10mm
2
)
MINIMUM SOLID COPPER BOND
WI RE TO THE HOUS E
ELE CTRI CA L PANEL OR
APPROVED LOCAL GROUND.
AN APPROVED GROUND MAY BE
AN 8 FOOT LONG GROUND ROD
(3 METER LONG EARTH ROD), A
PLATE ELECTRODE, OR OTHER
ACCEPTABLE BOND LOCATION.
CHECK YOUR LOCAL BUILDING
CODE FOR REQUIREMENTS.
(SEE PAGE 7 FOR BONDING
INSTRUCTIONS)
ELECTRICAL
OUTLET
240V 15A
RATING
BOILER
DRAIN
VALVES (2)
1/2 " HOT
& COLD
WATER
SUPPLY
LINES
16"
62 "
FINISHED
WALL
9"
11-13/16"
1-11/16"
30 "
2" WASTE STUB-OUT
NOTE: LOCATION
DIMENSIONS ARE
APPROXIMATE
10 1/2"
2"
8 5/32"
6"
6"
STUB-OUT FOR STEAM TANK DRAIN.
LINE SHOULD BE 1/2" COPPER,
MINIMUM. PROVIDE 3/4" MALE PIPE
THREAD FOR INTERFACE. END OF
THREADED FITTING SHOULD BE
OVERFLUSH WITH FINISH WALL 2".

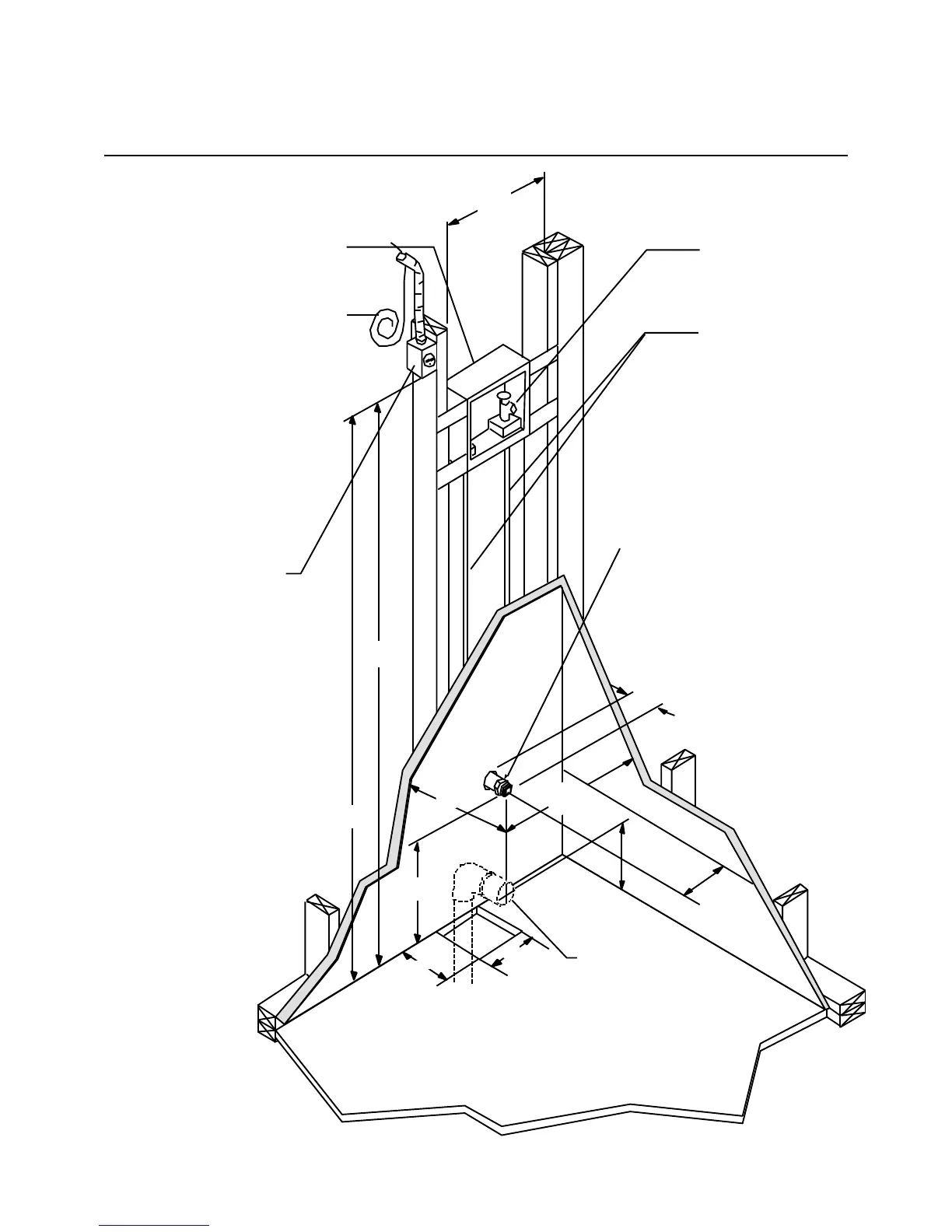

Rough-in
5
