1. Adjust the levelling screws in the base frame and lock them in position.
2. Connect bonding wire from line cord junction box to proper ground. (See bonding, page 8.)
3. Connect hot and cold water supply lines.
4. Plug in electric line cord.
5. Move J-Carré into final position. Make final leveling adjustment if necessary. If the shower is still level when set
in place, secure the unit in place using the clamps provided. See illustration below.
If the shower is not level in its final position and you do not have the immediate access to all levelers, the rear corner
leveler is accessible by opening the service panel (see illustration on page 7). Otherwise it will be necessary to
remove the shower from the corner and readjust the levelers until the shower is stable in its final position.
6. Connect the steam tank drain line to the stub-out specified in the rough-in instructions on page 5. See illustration
on page 7.

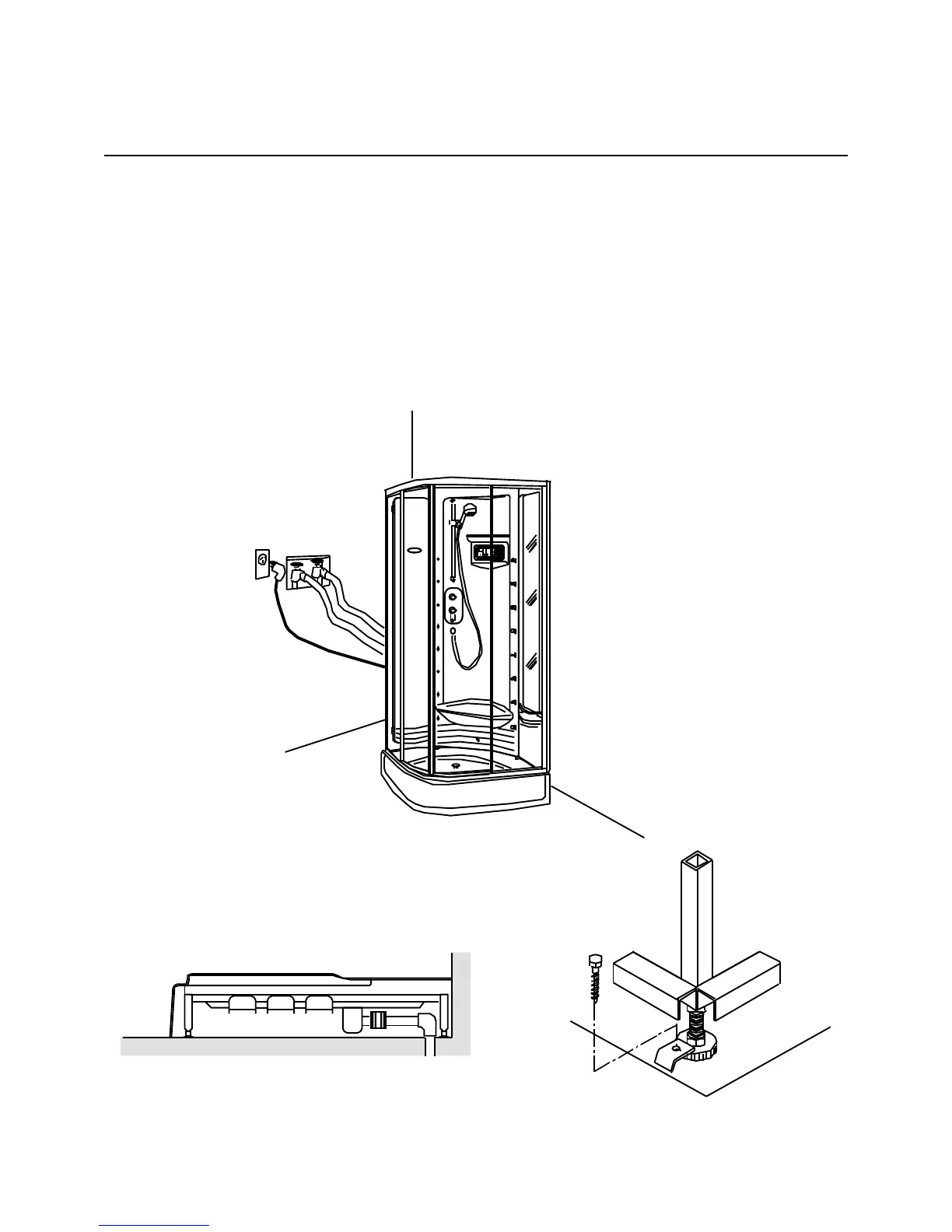

Installation & Operating Instructions
LAG
SCREW
FLOOR
CLAMPS
ADJUSTABLE
FOOT
6
To Next Page
