J-Sha II Owner's Manual
4
Drain Information
A drain/overflow assembly must be installed on the bath, water tested, and connected to the sanitary system of the
house. After opening the carton, inspect for damage. A solvent weld type drain is included and must be installed as
shown. The drain solenoid wiring plug must be connected to the control box prior to drain/overflow assembly. The
plug position (Drain Solenid) is shown on the control box. It is recommended that the tail pipe be installed on the drain
before the drain/overflow is installed on the bath. Hand tighten and then use a wrench to tighten until the tail pipe does
not turn. Follow the installation instructions provided with the drain/overflow kit to install the drain/overflow assembly.
Note: the bath must be propped up due to the length of the tail pipe.
NOTE: Watertight installation of the drain is the installer's responsibility. Drain leakage is excluded from the
Jacuzzi Whirlpool Bath warranty of this product.

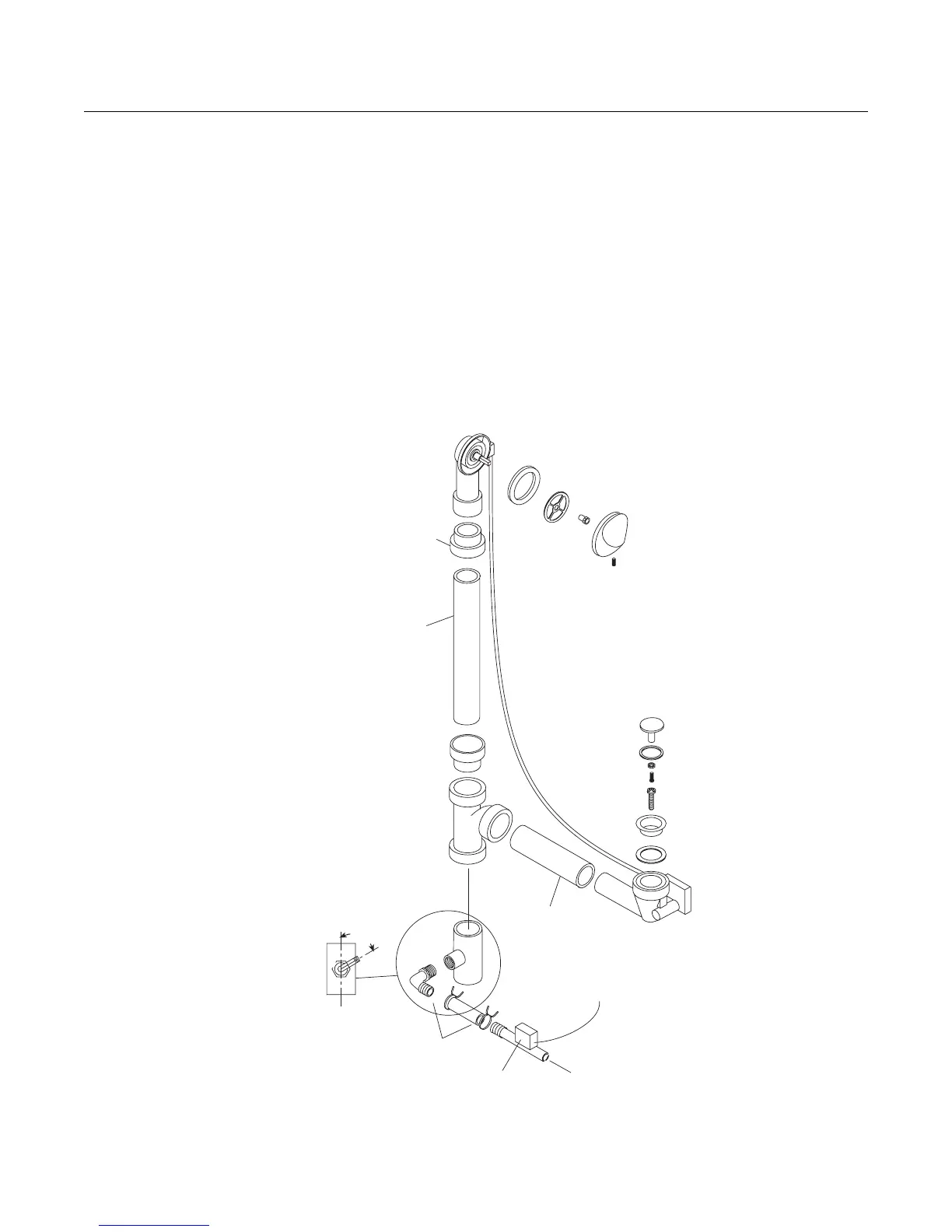

1-1/4" FLEXIBLE PIPE
SOLENOID WIRING
TO CONTROL BOX
1-1/2" RIGID PIPE
(NOT PROVIDED)
1-1/2" TO 1-1/4" BUSHING (2)
TO BACK JET
DRAIN HOSE
BACK JET MANIFOLD
DRAIN SOLENOID VALVE
SPRING
CLAMPS
60°
