Jaga Room Thermostat JRT-300
manual:
installation

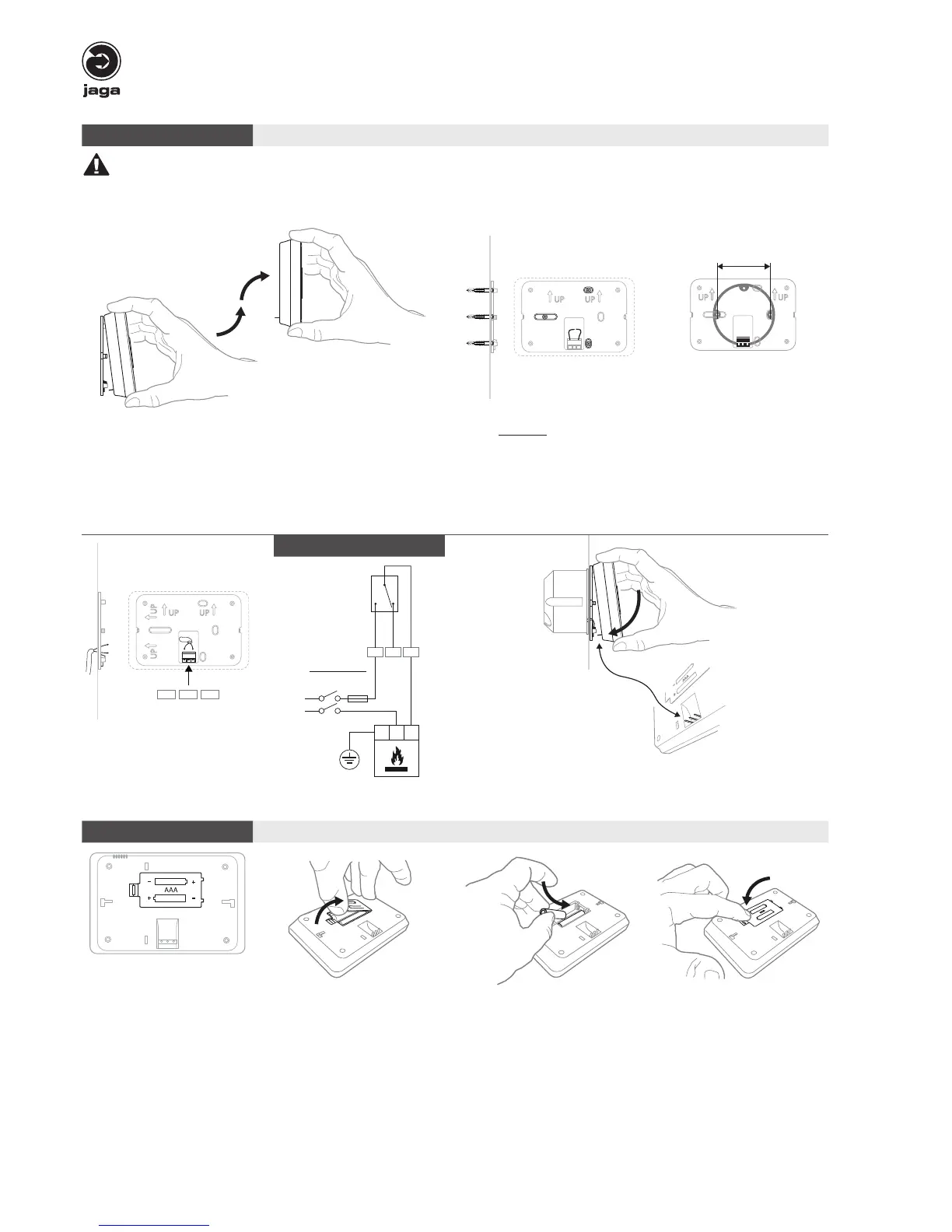

Installation
WIRING:
Warning: The installation of the thermostat should be performed by qualified personnel and must comply with the applicable local and
national electrical codes and utility requirements. All wire connections must be tightened and properly arranged to prevent a shortcircuit.
UPUP
6
- Carefully remove the front panel - When not using a recessed con-
duit box:
• mark out and drill the holes
• screw the back plate to the
wall. The type of wall, solid or
cavity, determines the type of
screw or plug that is used.
Mount the JRT-300 Room ther-
mostat on a wall recessed box
(60.3 mm fixing centers) or direct
onto a flat wall using wall plugs.
NONCCOM
JRT 300 Wiring diagram
1 2 3
L
N
N
L
max. 8A
24 - 230V
˜
NO
NC
COM
Insert the wire through the hole
of the back plate
Follow this wiring diagram Re-assemble the front panel: be careful with the connection pins !
Replacing batteries
Carefully remove the front panel
2 x AAA1.5 V, Alkaline batteries. Carefully remove the battery
cover
NOTE: POS + and NEG - are
marked on the battery cover !!
Gently close the cover.
