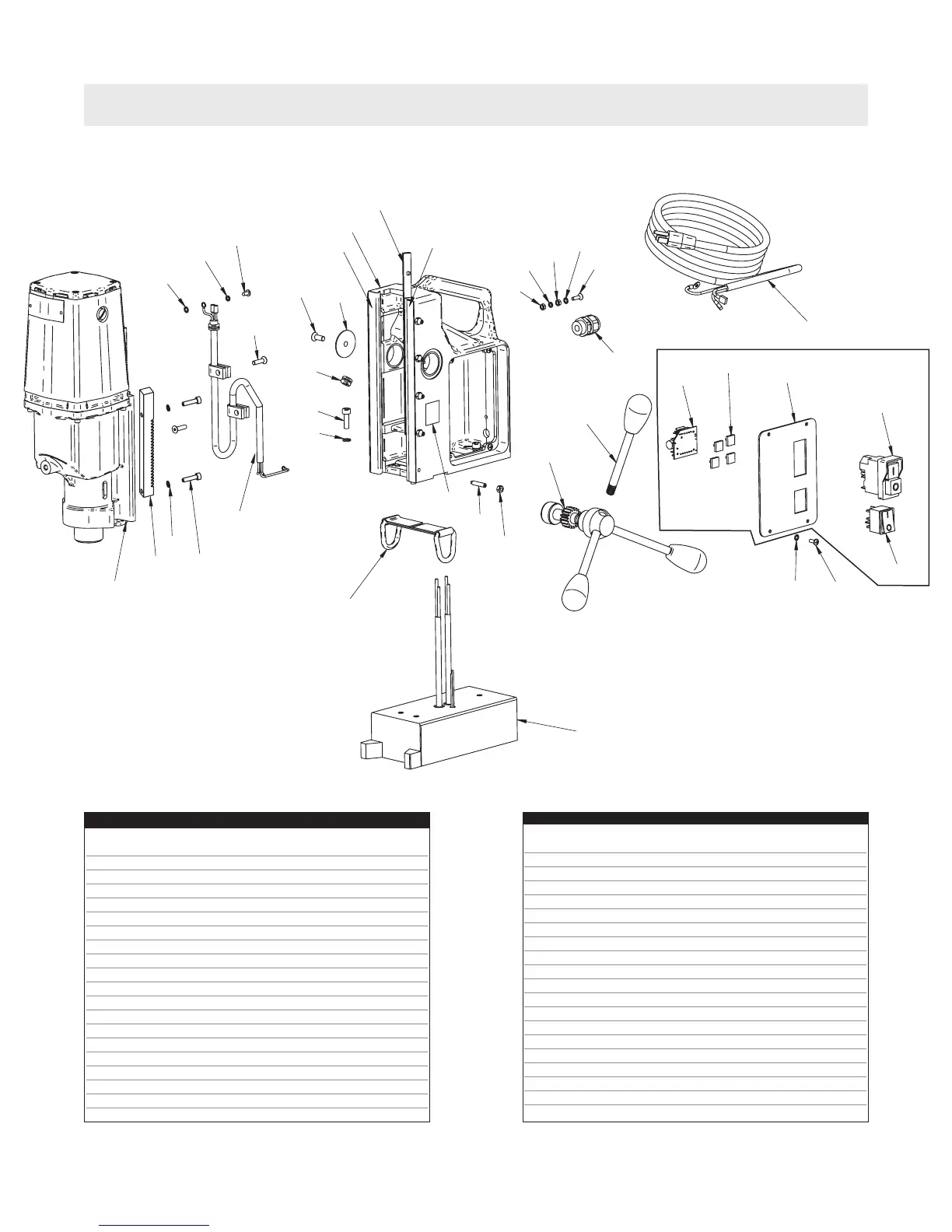

Jancy Engineering 17982 - Machine Breakdown and Parts List

machine parts list
11
item description part # qty
001 MOTOR ASSEMBLY 120V 07201 1
MOTOR ASSEMBLY 240V 07203 1
101 FRAME 07205 1
102 PRESSURE PLATE 07004 1
103 D-RING STRAP 06796 1
104 NUT, M5 0151181 5
105 SSS, M5 X 25 07020 5
106 SHCS, M6 X 20 0014102 3
107 WASHER, SPLIT M6 07016 3
108 LABEL, GIB ADJUSTMENT 07503 1
109 SLIDE INSERT (LEFT) 07251 1
110 SLIDE INSERT (RIGHT) 07252 1
200 MAGNET 07017 1
401 PINION 07019 1
402 FHSCS, M6 X 20 080404 1
403 HUB WASHER 07006 1
404 SPOKE HANDLE 07018 3
406 GEAR RACK 6-3/8" LONG 07024MT2 1
407 SHCS, M5 X 20 06774 2
408 WASHER, SPLIT M5 07023 2
701 STRAIN RELIEF 015064 1
item description part # qty
702 POWER CORD 120V 06564 1
POWER CORD 220V CALL 1
703 NUT, M4 0070133 2
704 WASHER, LOCK M4 06773 6
705 WASHER, SPLIT M4 080720 2
706 FHSCS, M4 X 16 07116 1
707 MOTOR CORD ASSEMBLY 07239 1
708 CRPHMS, M4 X 8 04820 1
709 CONTROL PANEL ASSY. 07206 1
709.1 PANEL PLATE WITH LABEL 07207 1
709.2 CIRCUIT BOARD 120V 07294 1
CIRCUIT BOARD 240V 07295 1
709.3 MOTOR SWITCH 07208 1
709.4 MAGNET SWITCH-4 CONNECTOR BM507 1
709.5 LOCKING PILLAR 07209 4
709.6 WIRE GROUP 1-NOT SHOWN 07210 1
709.7 WIRE GROUP 2-NOT SHOWN 07211 1
710 CRPHMS, M4 X 10 080710 4
711 GROMMET, RUBBER 3/8 STYLE 2 07117 1
712 FHSCS, M5 X 20 07212 2
