Fridgewatch 2000 Controller Mk5
Publication 3-59 Section 3
Page 103 of 222 Issue 3.2 : 05.23
Function Terminals Remarks
1
Liquid Line
Solenoid Valve
230/110 V ac
N
4
L
o
o
284
285
Energise (open) when the compressor starts,
de-energise (close) when the compressor stops.
If the system is designed to pump-down on stopping, the
liquid line solenoid valve de-energises (closes) when the
pump-down sequence begins.
1
Condenser/
Evaporator Vent
Solenoid Valve
230/110 V ac
N
4
L
o
o
288
289
Normally energise (close) when the compressor starts,
de-energise (open) when the compressor stops.
Under low pressure difference conditions, de-energise
(open) while the compressor is running in order to lower
the evaporator gauge pressure.
1
Oil Feed (Gland
and Bearings)
Solenoid Valve
230/110 V ac
N
4
L
o
o
290
291
Used on applications having a separate solenoid valve
for the compressor gland and bearings lube oil supply (in
addition to the oil injection solenoid connected to
184/185).
Requires S194 Oil Pump/Oil System Type and S195 Oil
Feed Type; refer to 15.10. Oil Management Systems.
Energise (open) while the compressor starts,
de-energise (close) when the compressor stops.
1
Oil Cooler Water
Line Solenoid
Valve
230/110 V ac
N
4
L
o
o
292
293
When fitted for thermostatic control of oil temperature.
Relays outputs are either 110 V ac or 230 V ac.
1
If fitted, depends on the application.
2
Solid State Relay Load rating is 3A @ 24 to 240 V ac.
3
2 pole relay contacts rated at 5A continuous/ 2A inductive at 250 V ac.
4
Single pole relay contacts rated at 6A continuous/ 2.5A inductive at 250 V ac
5
Can be used to drive unload valve on VSD applications.

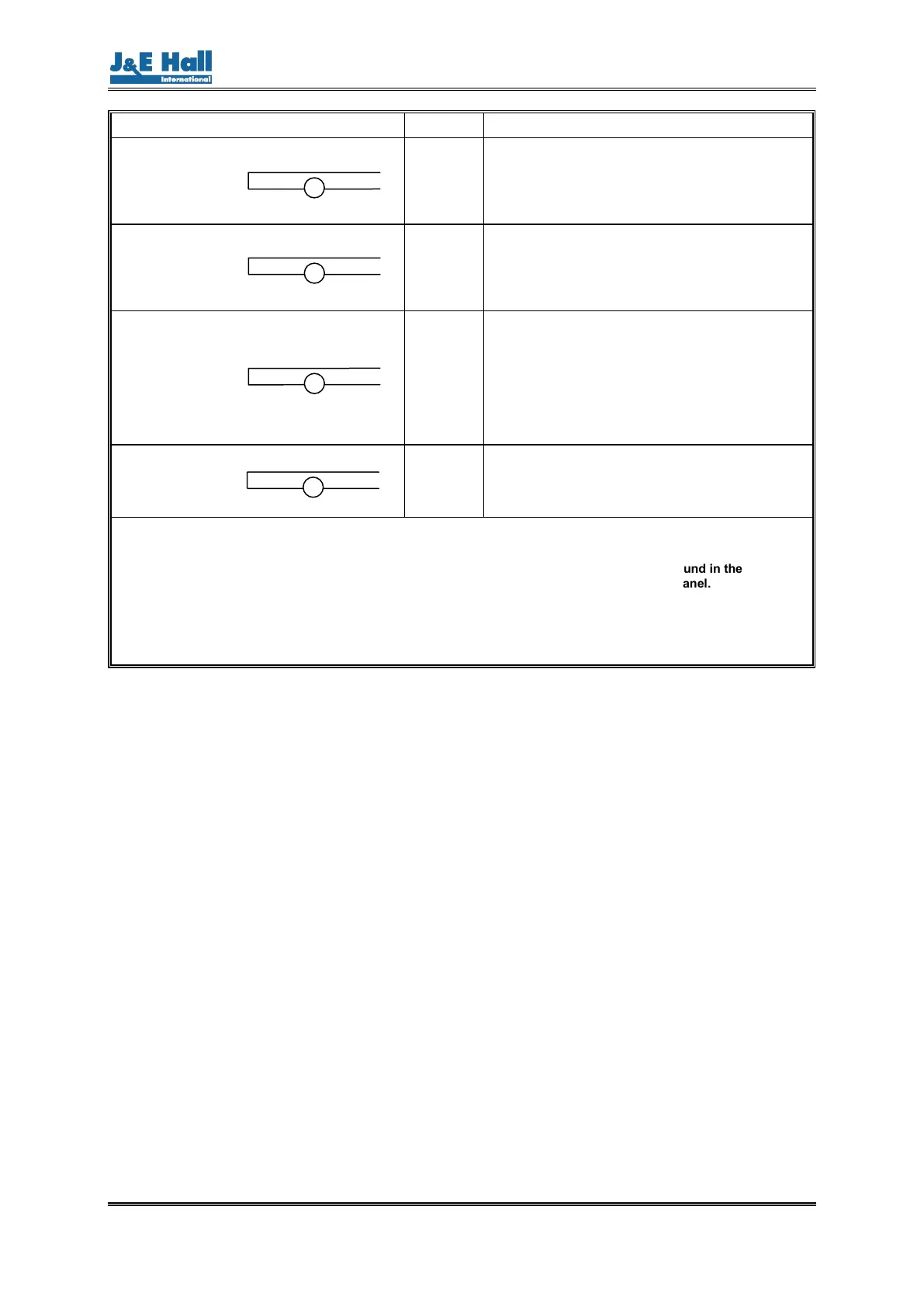

Fig 73 Wiring Connections Relay Outputs Lower Half of Panel Continued
NOTE: Terminals are found in the
bottom section of the panel.
To Next Page
