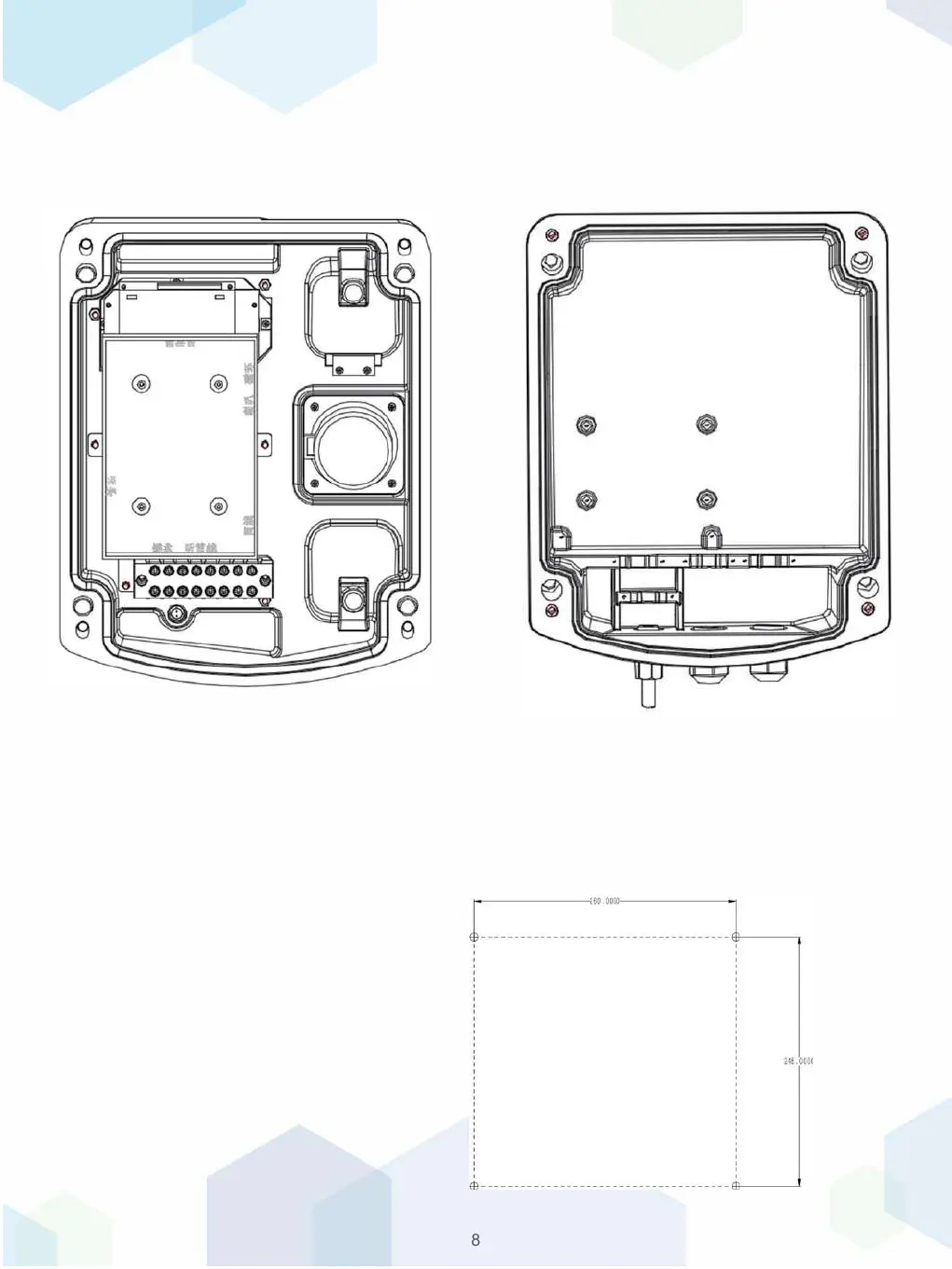

Inside View of Telephone upper Part Inside View of Telephone lower Part
Requirements for cables
The line requires the use of cables larger than 0.5mm. The larger the diameter, the better the effect. It is best to connect the cable with a protective sleeve.
Sling holder
The holding strength for the handset is continuously adjustable. Loosen the screws and move the stopping catches. Pushing the stopping catches
together increases the holding strength whereas pulling them apart reduces it. Tighten the screws again.
Drilling Diagram
For making a drilling template
please use the right side dimensions (in mm).
The diameter of the drilled hole is dependent on the
screw employed (screw diameter max. 8 mm) and the
type of supporting base material (steel, wood, concrete,
plasterboard etc.) and must be chosen accordingly.
