J&W JW-A780LM-D2 User Manual

- 12 -
AMD Series User's Manual
JHP D
SF
AN
1
FUSB1
FUSB2
PS 2
USB 1
DIM M1
DIM M2
JRS790M2C 02_D V1 0
184*234
.
HDM I
CF
AN
JKB
B T1
AUD IO
JCO M
SFAN 2
AT
XPW
R
SPE AK
FDD
JHPD
SF
AN
1
FUSB1
FUSB2
PS 2
USB1
DIMM 1
DIMM 2
JRS790M2C02 _DV1 0
184*234
.
HDMI
CF
AN
JKB
B T1
AUD IO
JCOM
SFAN2
AT
XPW
R
SPEA K
FDD

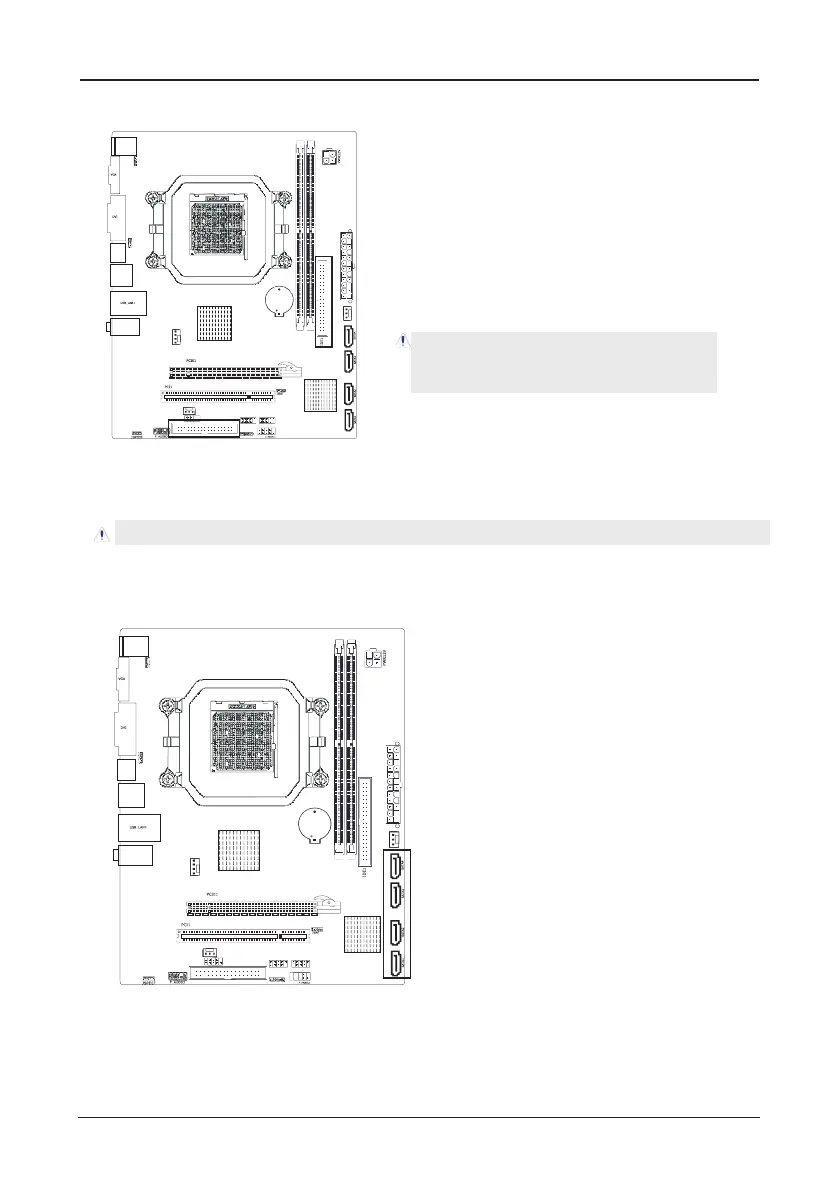

2.5 Connecting Peripheral Devices
2.5.1 Floppy and IDE Disk Drive Connectors
The FDD connector connects up to two oppy drives with a 34-wire, 2-connector oppy
cable.Connect the single end at the longer length of ribbon cable to the FDD on the board,
the two connectors on the other end to the oppy disk drives connector. Generally you need
only one oppy disk drive in your system.
2.5.2 Serial ATA Connectors
Each SATA connector serves as one single channel to connect one SATA device by SATA
cable.
2.5.3 PCI and PCI Express slots
Install PCI Express X16 graphics card into slot “PCIE1”.
Install PCI card into slots “PCI1” .
Each of the IDE port connects up to two IDE
drives at Ultra ATA 133/100/66/33 mode by
one 40-pin, 80-conductor,and 3-connector Ultra
ATA/66 ribbon cables.
Connect the single end (blue connector) at the
longer length of ribbon cable to the IDE port of
this board, the other two ends (gray and black
connector) at the shorter length of the ribbon
cable to the connectors of your hard drives.
Make sure to congure the “Master” and “Slave” relation
before connecting two drives by one single ribbon cable.
The red line on the ribbon cable must be aligned with
pin-1 on both the IDE port and the hard-drive connector.
The red line on the ribbon cable must be aligned with pin-1 on both the FDD port and the oppy connector.
