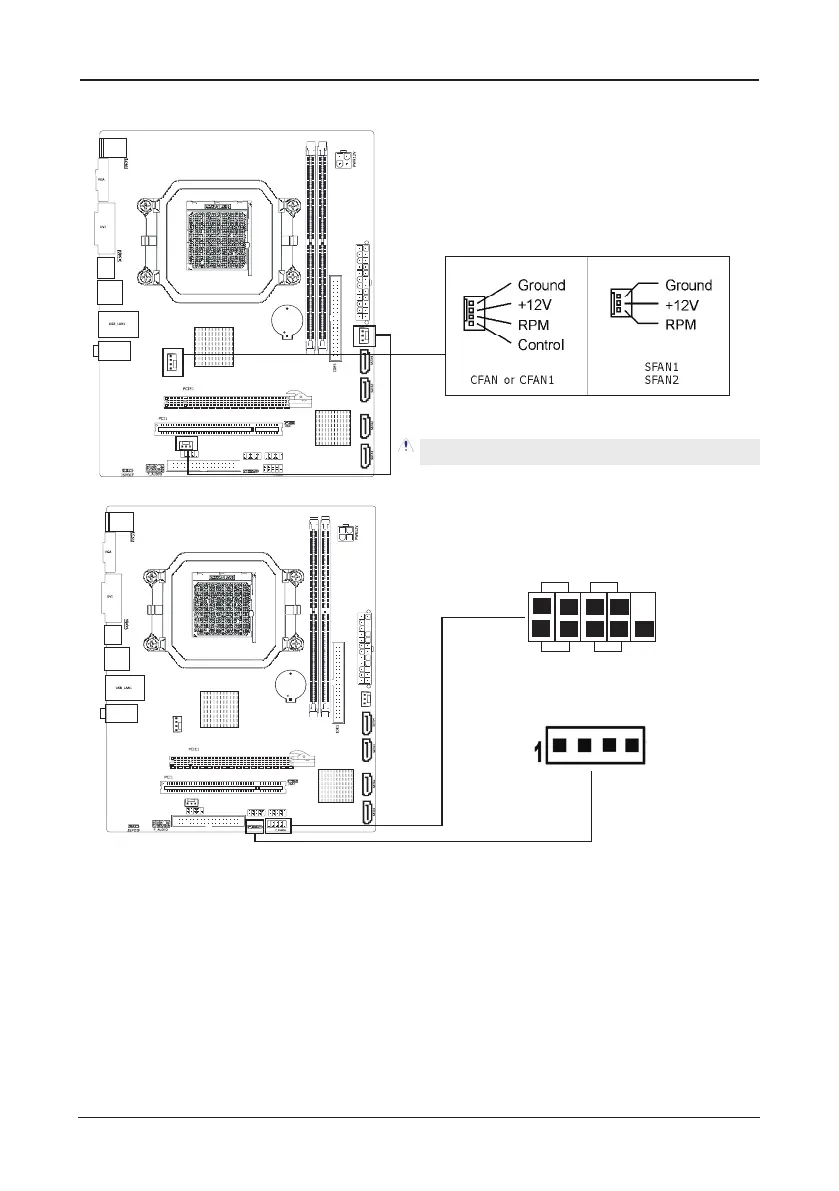

3.3 FAN Power Connectors
These connectors each provide power to the cooling fans installed in your system.
CFAN1: CPU Fan Power Connector
SFAN1/2: System Fan Power Connector
These fan connectors are not jumpers. DO NOT place
jumper caps on these connectors.
JHPD
SF
AN
1
FUSB1
FUSB2
PS 2
USB1
DIMM 1
DIMM 2
JRS790M2C0 2_DV 1 0
184*234
.
HDMI
CF
AN
JKB
B T1
AUD IO
JCOM
SFAN2
ATXPW
R
SPEA K
FDD
3.4 Front Panel Switches & Speaker Headers
HD_LED (Red): Hard Driver LED connector
This connector connects to the case-mounted HD LED cable, and the LED will light when the
hard drive(s) is/are being accessed.
RST (Blue): Reset Switch
This connector connects to the case-mounted reset switch which allows you to reboot without
having to power-off the system and thus prolonging the life of the power supply or system.
PWR_ON (Black): Power Switch
Depending on the setting in the BIOS setup, this switch serves two functions which will allow
you to power-on/off the system or to enter the suspend mode.
PWR_LED (Green): Power/Standby LED
When the system's power is on, this LED will light. When the system is in the S1 (POS - Power
on Suspend) or S3 (STR - Suspend to RAM, optional) state, it will blink every second.
SPEAKER (Yellow or Black): Speaker Connector
This 4-pin connector connects to the case-mounted speaker.
Speaker
+
-
+
-
PW R LE D_
PW R ON_
HD LED_
RS T
