- 13 -
AMD Series User's Manual

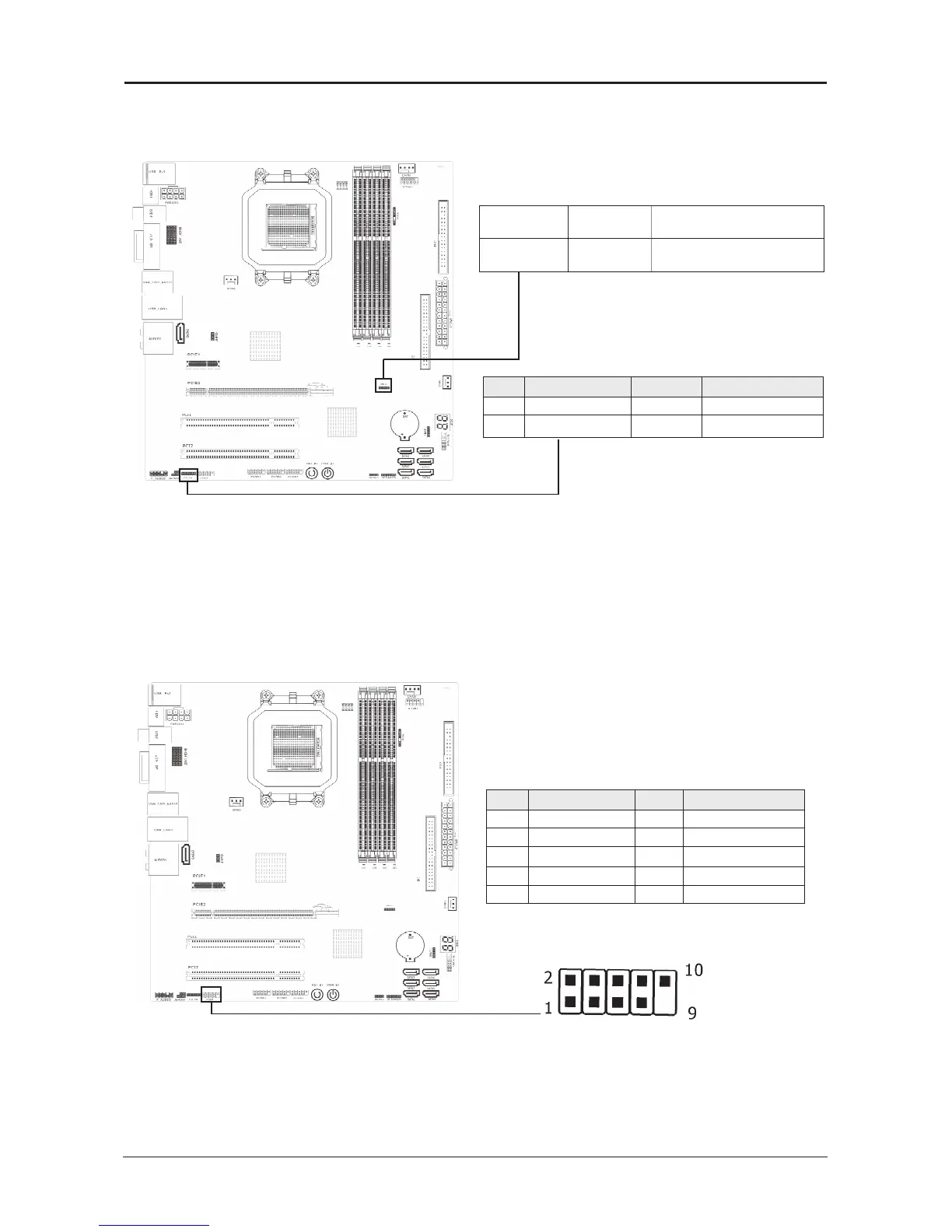

3.5 CD_IN Headers &JHDT Jumper
3.6 1394 Headers(Optional)
CD_IN Headers
JHDT Jumper
Pin Pin Assignment Pin Pin Assignment
1 TA+ 2 TA-
3 GND 4 GND
5 TB- 6 TB+
7 +12V 8 +12V
9 10 NC
Pin Pin Assignment Pin Pin Assignment
1 CD_L 2 GND
3 GND 4 CD_R
1-2
（
Default
）
Normal HDT Default status
.
2-3 OVER_DRIVE
Enab l e to allow t h e AM D
OverDrive feature to function.
