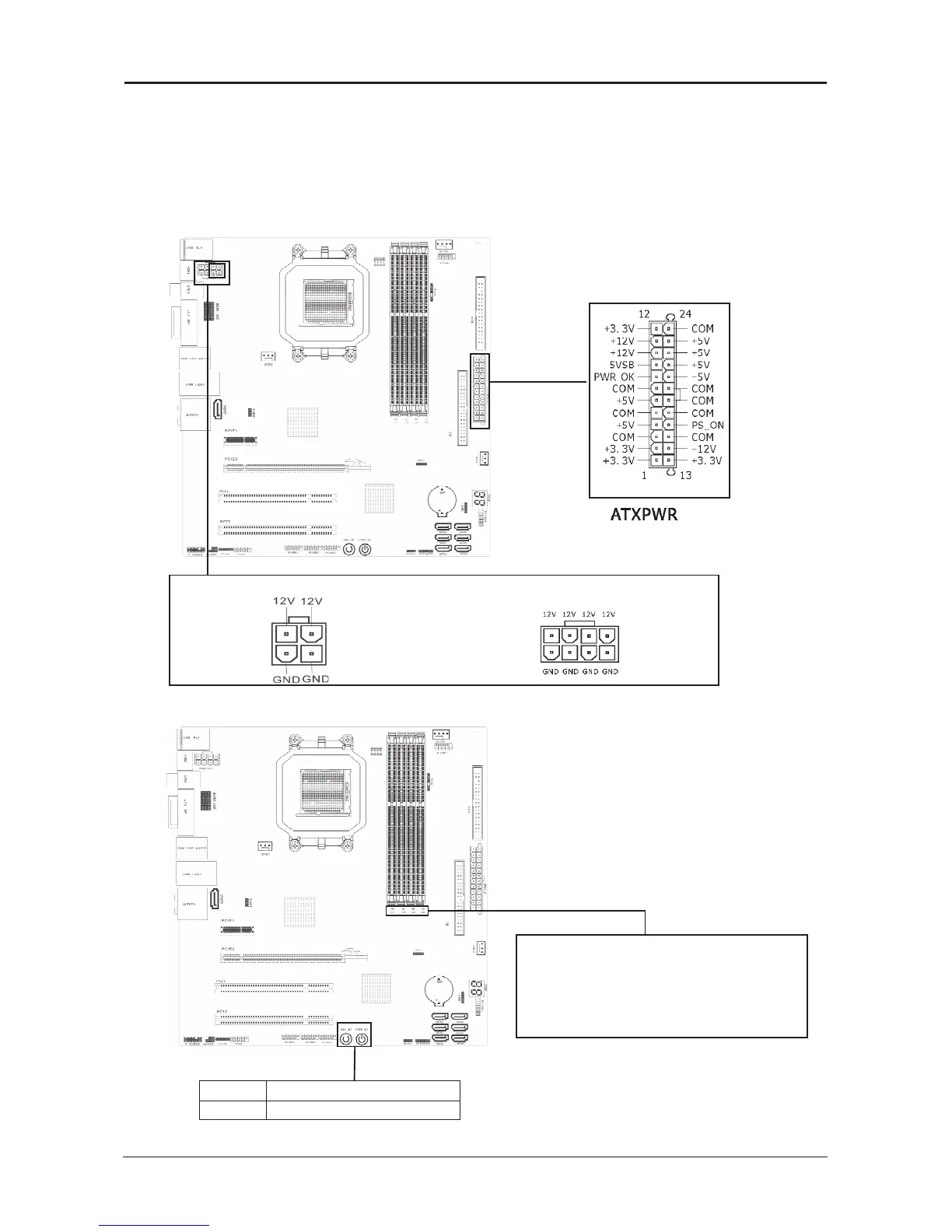

Figure 2: Reference for 8 pin PWR12V.
Figure 1: Reference for 4 pin PWR12V.
3.13 ATX Power Input Connectors
This mainboard provides two power connectors to connect power supplier.
This connector allows you to connect an ATX 24-pin power supply.To connect the ATX 24-pin
power supply,make sure the plug of the power supply is inserted in the proper orientation
and the pins are aligned. Then push down the power supply rmly into the connector.
Your may use the 20-pin ATX power supply as you like.If you'd like to use the 20-pin ATX
power supply, please plug your power supply along with pin 1 & pin 13.
3.14 PWR_BT/RST_BT & LED Indicator
PWR_BT power on Button
RST_BT Reset Button
When you install a system memory
at the DIMM slo t , the DIM M 's
LED indicator will be highlight.(the
motherboard must be Connected
power)
