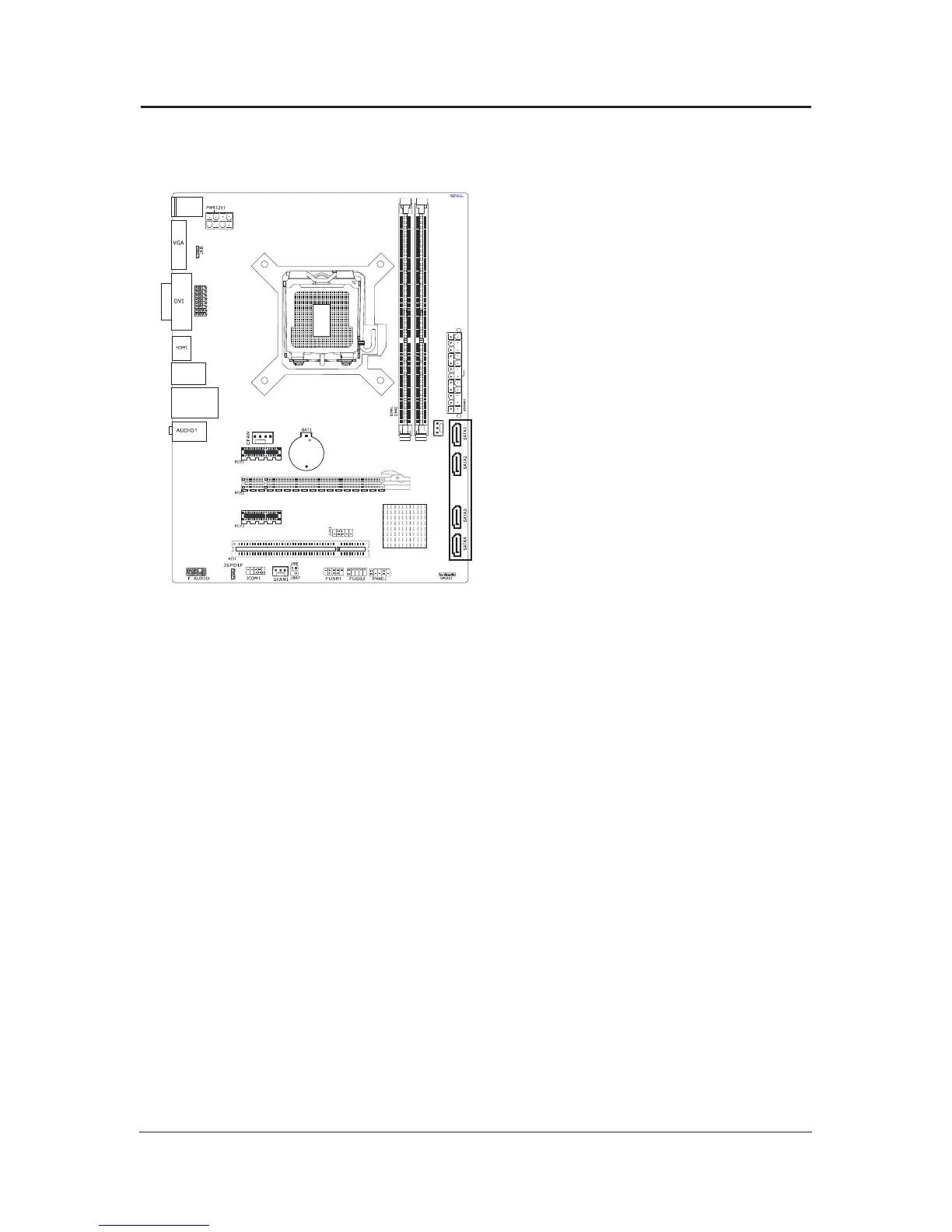

2.5 Connecting Peripheral Devices

2.5.1 Serial ATA Connectors

Each SATA connector serves as one single channel to connect one SATA device by SATA

cable.

2.5.2 PCI and PCI Express slots

Install PCI Express X16 graphics card into slot “PCIE2”.

Install PCI Express X1 card into slots “PCIE1” or "PCIE3".

Install PCI card into slot “PCI1”.
