3.9 S/PDIF Output Connection Header (Optional)
S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer le format. It is usually
found on digital audio equipment such as a DAT (Digital Audio Tape) machine or audio
processing device. It allows the transfer of audio from one le to another without the
conversion to and from an analog format, which could degrade the signal quality.

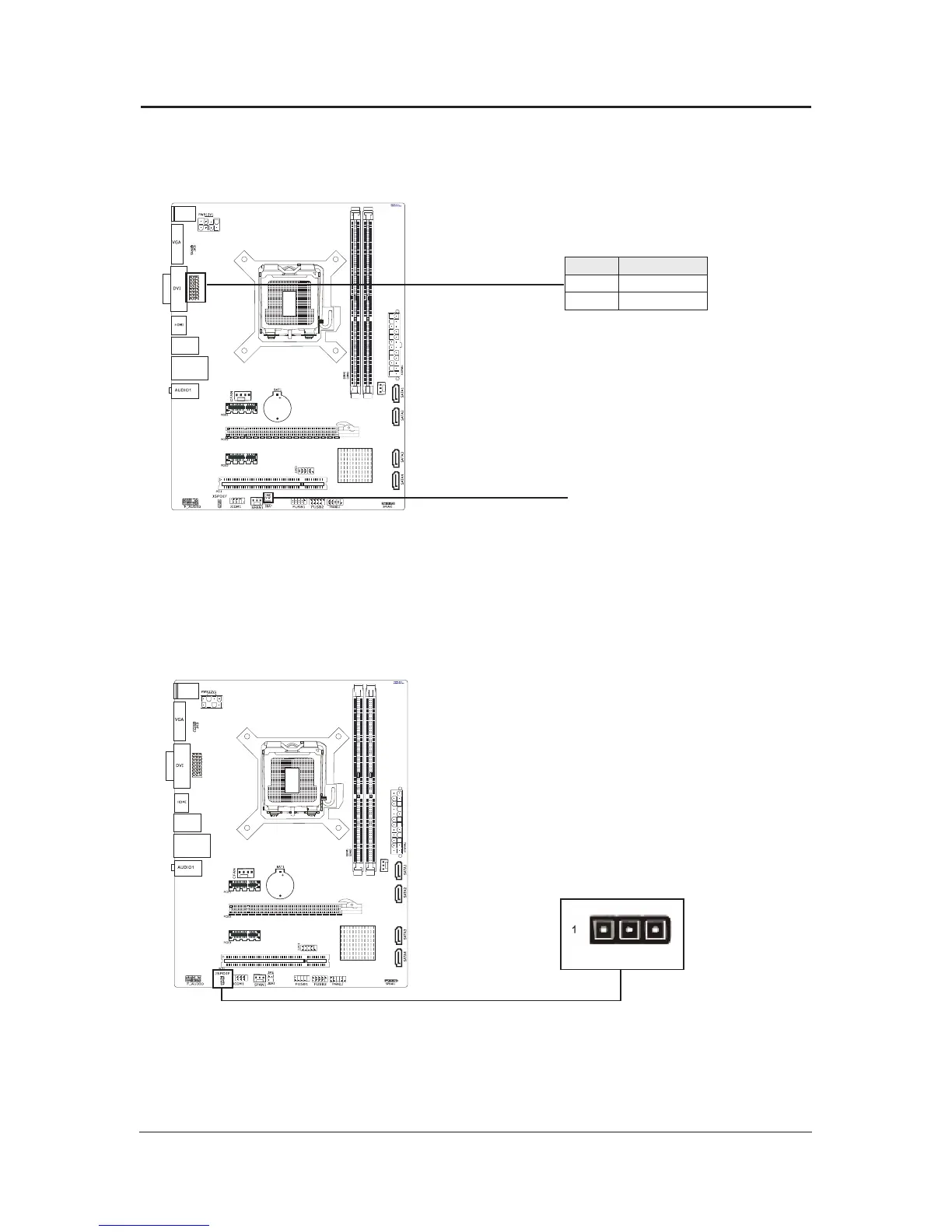

3.8 JDVI_HDMI jumper and JME jumper
While JVDI_HDMI jumper be shorted #pin 1-2, it will auto detect HDMI or DVI device, but if
some DVI or HDMI device cann't be detected, please be shorted #pin 2-3.
JME jumper: If you want to refresh your ME,you must short #pin 1-2 before doing so.
Pin No. Denition
Pin1-2 DVI
Pin2-3 HDMI
JDVI_HDMI Jumper
JME Jumper
VCC OUT GND
