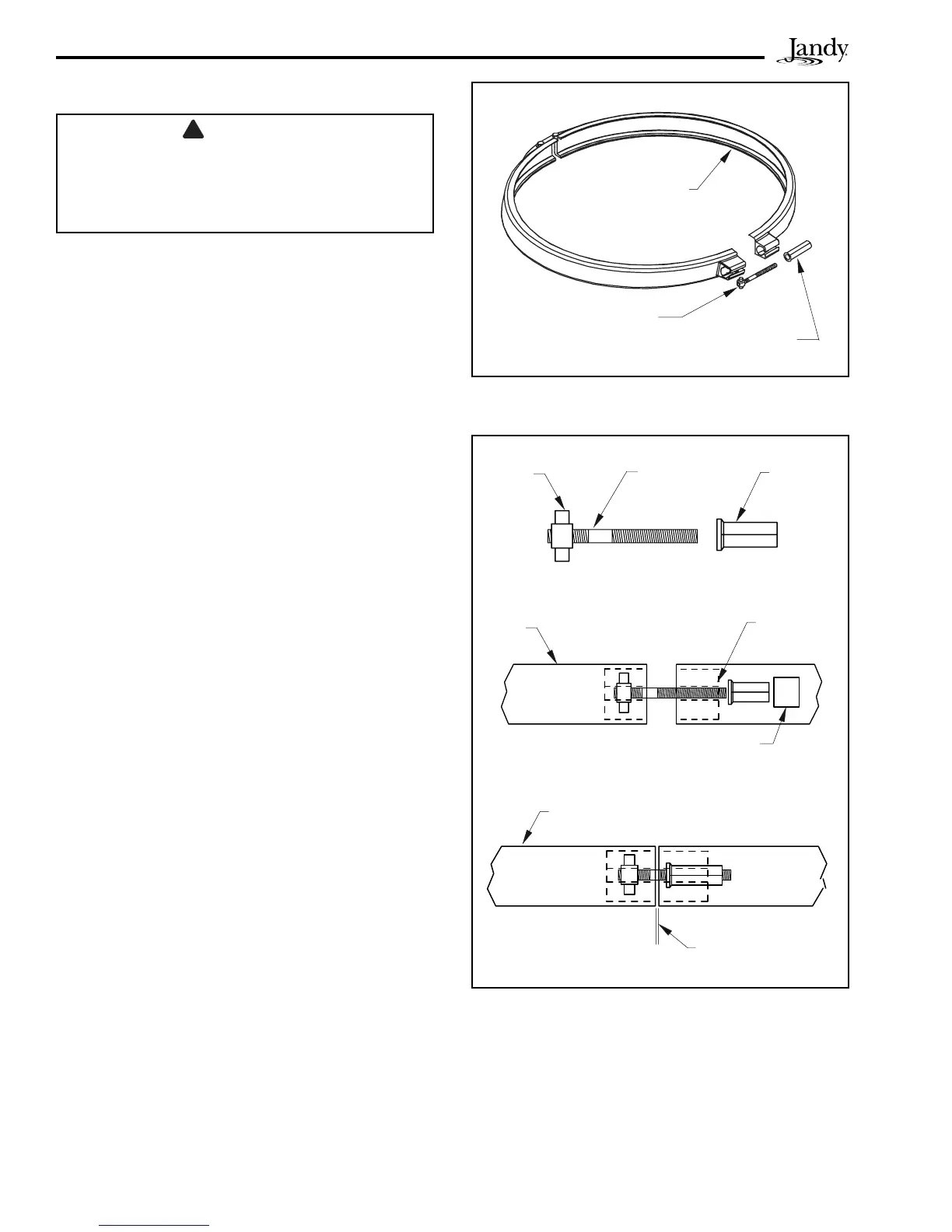

Figure 5- Filter Clamp Ring
Clamp Ring
"T" Nut and
Threaded Rod
Tightening Nut
w/ Shoulder
Figure 6- Filter Clamp Ring Assembly
"T" Nut Threaded
Rod
Tightening
Nut w/
Shoulder
Clamp
Ring
Tightening
Nut w/
Shoulder
Use a 9/16" Socket
to tighten
Clamp Ring,
Closed Position
GAP NOT TO
EXCEED 1/16"
3.4 Clamp Installation, DEL Series
1. Be certain the o-ring is in position in the lower tank half.
Press the filter lid over the lower half sandwiching the
o-ring between the two halves.
2. Holding the ends of the filter clamp apart, position the
hinged segment of the filter clamp over both upper and
lower tank flanges. Bring the ends of the filter clamp
together.
3. Place the "T" nut and threaded rod assembly into the
clamp. Besure the "T" nut is seated in the clamp in the
proper orientation (See Fig. 6).
4. Use a 9/16" socket on the tightening nut until the clamp
ring halves touch each other, or are within 1/16"
(See Fig. 6) but do not overtighten as the clamp can
break. If unable to tighten as indicated, do not operate
the filter and call a service technician immediately.
5. After the first week of operation, check the clamp and
retighten if necessary.
6. Check the filter clamp at least once a month.
Warning
Follow these instructions carefully. Improper
clamp installation can cause the filter lid to be
blown off which can result in death, serious
personal injury or property damage.
!
