Page 6

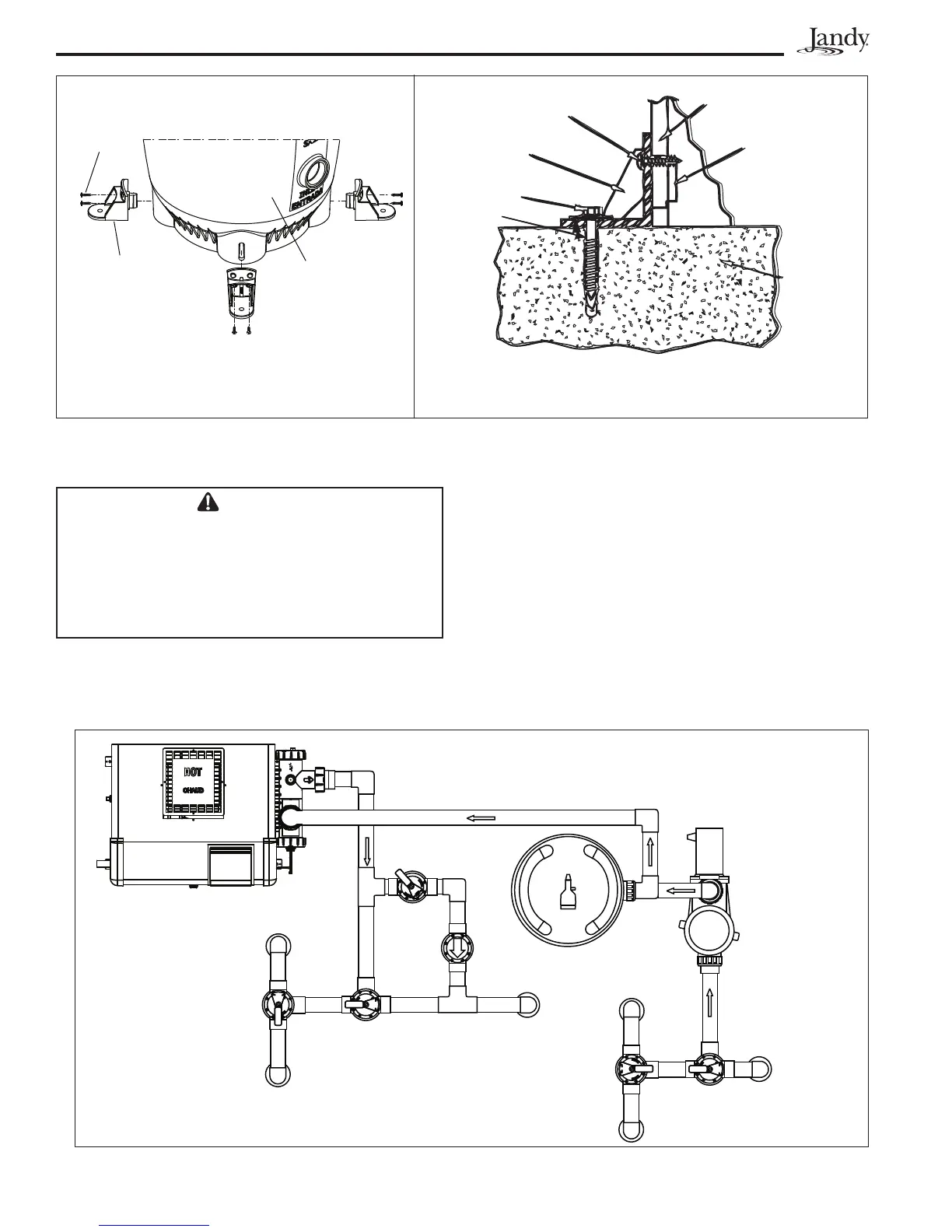

Figure 3. Anchor Filter to Equipment Pad
Jandy Heater
Waterfall
Pool Return
Spa Make Up
Spa Return
From Pool Skimmer
From Pool
Drain
Spa Suction
Jandy Pump
Jandy
Check
Valve
To Inlet Port
Jandy Filter
2. If doubt exists as to the pressure which the system
will be subjected to, install an ASME
®
approved
automatic Pressure Relief Valve or Pressure
Regulator in the circulation system set to the
lowest working pressure of any of the components
in the system.
3. Place the fi lter on the concrete pad, lined up with
the inlet/outlet pipes (see Figure 4). Remove the
shipping screw.
4. To mount the pressure gauge/air release assembly
to the top of the fi lter tank (located in the
accessory bag):
3.4 Filter Plumbing
Figure 4. Basic Pool/Spa Combination Plumbing
Anchor
Bracket
(Qty 4)
#12x1” Pan
Head Screw
(Qty 8)
Tank Bottom
Filter Tank Anchor Bracket Installation Anchor Bracket to Platform Installation
From Outlet Port
Filter Base
Drill 5/32” Hole
Mounting Tab
Mounting Bracket
#12x1” Pan
Head Screws
1/4” x 2-1/4” Tapcon
Screw and Washer
3-1/2” Thick
(Min.)
Concrete Pad
WARNING
To avoid an electrical shock hazard, which can result
in serious injury or death, ensure that all electrical
power to the system is turned off before approaching,
inspecting or troubleshooting any leaking valves
or plumbing that may have caused other electrical
devices in the surrounding area to get wet.
1. This fi lter operates under pressure. When clamped
properly and operated without air in the water
system, this fi lter will operate in a safe manner.
To Next Page
