Section 2. Getting Started
Install the JXi in accordance with the procedures
in this manual, local codes and ordinances, and in
accordance with the latest edition of the appropriate
national code. See Section 1.7.
If the heater is to operated in below freezing
conditions it should be installed in a protected
outdoor shelter. See Section 3.3.
All gas-fi red products require correct installation to
ensure safe operation.
The requirements for pool heaters include the
following:
• Field assembly (if required)
• Appropriate site location, clearances and fl ooring
• Suffi cient combustion and ventilation air
• Properly sized gas meter and piping
• Proper electrical wiring
• Suffi cient water fl ow
This manual provides the information needed to
meet these requirements. Review all applications
and installation procedures before continuing the
installation.
JXI400P
DIRECT IGNITION
E15XJ1232
399,000
JXI, US
Zodiac Pool Systems LLC
2882 Whiptail Loop #100, Carlsbad CA 92010
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:

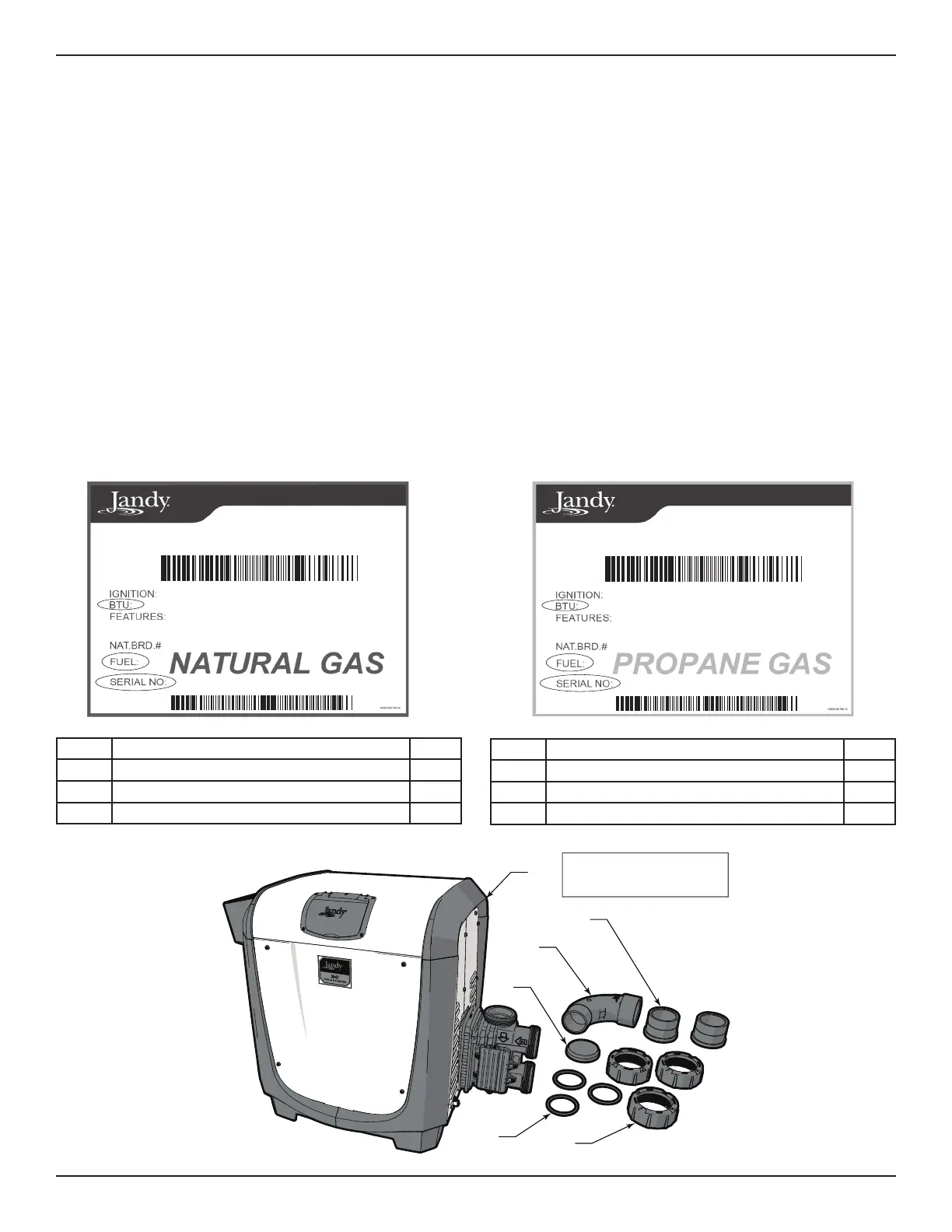

2.1 Package Contents
For ASME heater models JXi400NC, JXi400PC, JXi260NC and JXi260PC please go to “Appendix A. ASME
®
Header” on page 55.
Before completely unpacking the unit please inspect carton for damage. In addition, please check the carton
label to ensure that you have the correct fuel type and BTU rating for your application.
JXI400N
DIRECT IGNITION
E15XJ1000
399,000
JXI, US
Zodiac Pool Systems LLC
2882 Whiptail Loop #100, Carlsbad CA 92010
CSA Certified for installations up to 4,500 FT (1,372m), BTU output
is reduced about 4% per 1000 ft (305 m) over 4,500 ft (1,372m). In
general efficiency is not affected by altitude.
ALTITUDE:
Item Description Qty.
1 JXi Heater 1
2 Versa Plumb
®
Sweep Elbow 1
3 2 in Universal Union Tailpiece 2
Item Description Qty.
4 2 in Universal Union Cap 1
5 2 in Universal Union O-ring 3
6 2 in Universal Union Nut 3
