Jandy JXi 200 - Cabinet Assembly Spare Parts List and Exploded Parts Diagram

Page 59
Jandy
®
JXi
™
Gas-Fired Pool and Spa Heater | Installation & Operation Manual

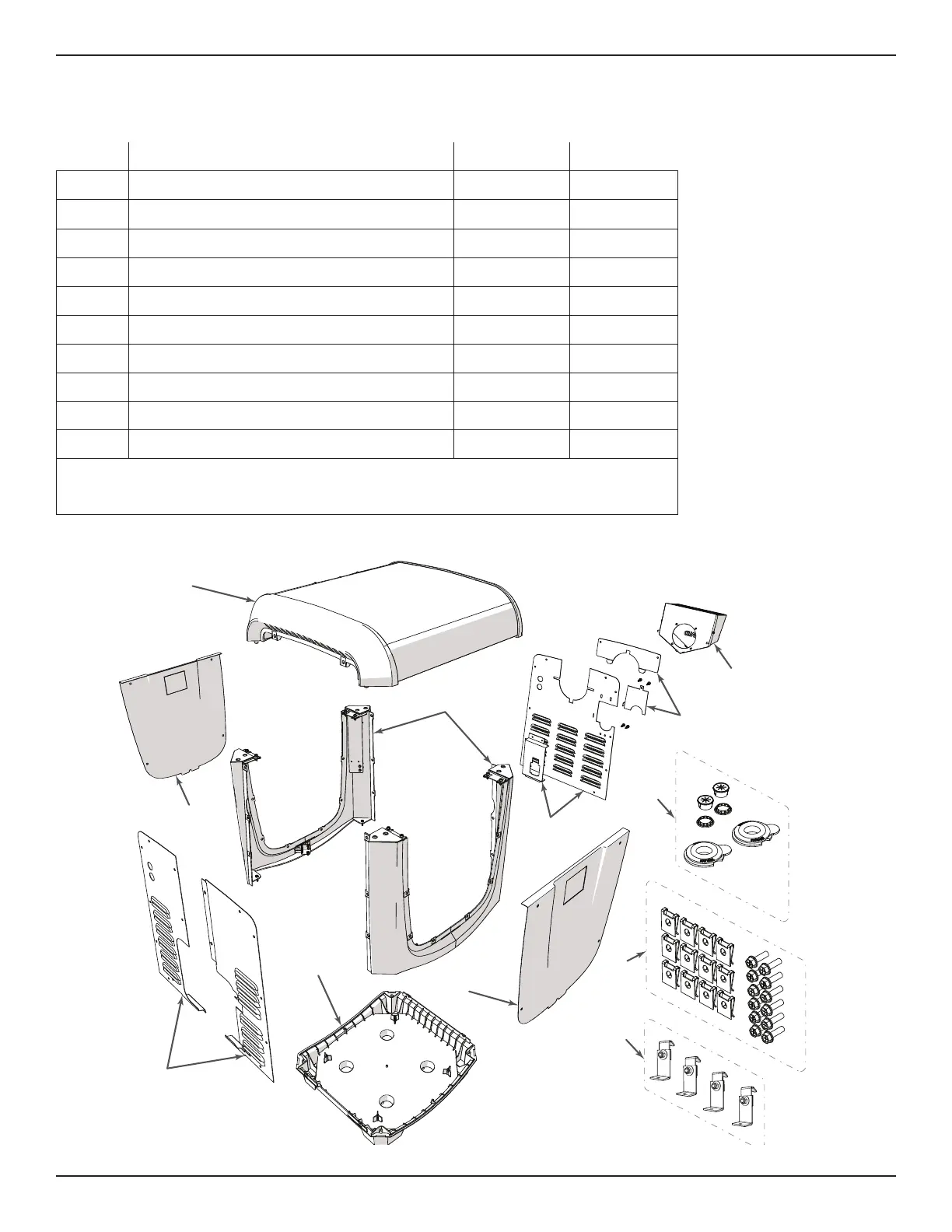

13.4 Cabinet Assembly Spare Parts List and Exploded Parts Diagram
(From Section “12.2 Cabinet Assembly Spare Parts List and Exploded Parts Diagram” on page 50)
Key No Description model 260 model 400
1 Heater Jacket Top Kit (no User Interface) R0592400 R0592400
2 Corner Post Kit, Left/Right (set of 2) R0592500 R0592500
3 Heater Base Kit R0592600 R0592600
4 Front or Back Panel Kit R0592700 R0592700
5* Side Panel Kit R0821000 R0821000
6 Vent Terminal Housing Kit R0593100 R0593100
7 Jacket Hardware Kit R0593300 R0593300
8 Anchor Brackets Kit (set of 4) R0593400 R0593400
9 Jacket Hole Plug Kit R0591800 R0591800
10** Complete Replacement Box Packaging Kit R0593600 R0593600
*Includes: Exhaust side panel, top panel closure, anti rotation bracket and access door.
Header side panel LH, Header side panel RH.
** *Not Show in Exploded View
1
2
3
4
4
5
5
5
6
7
8
9
