5

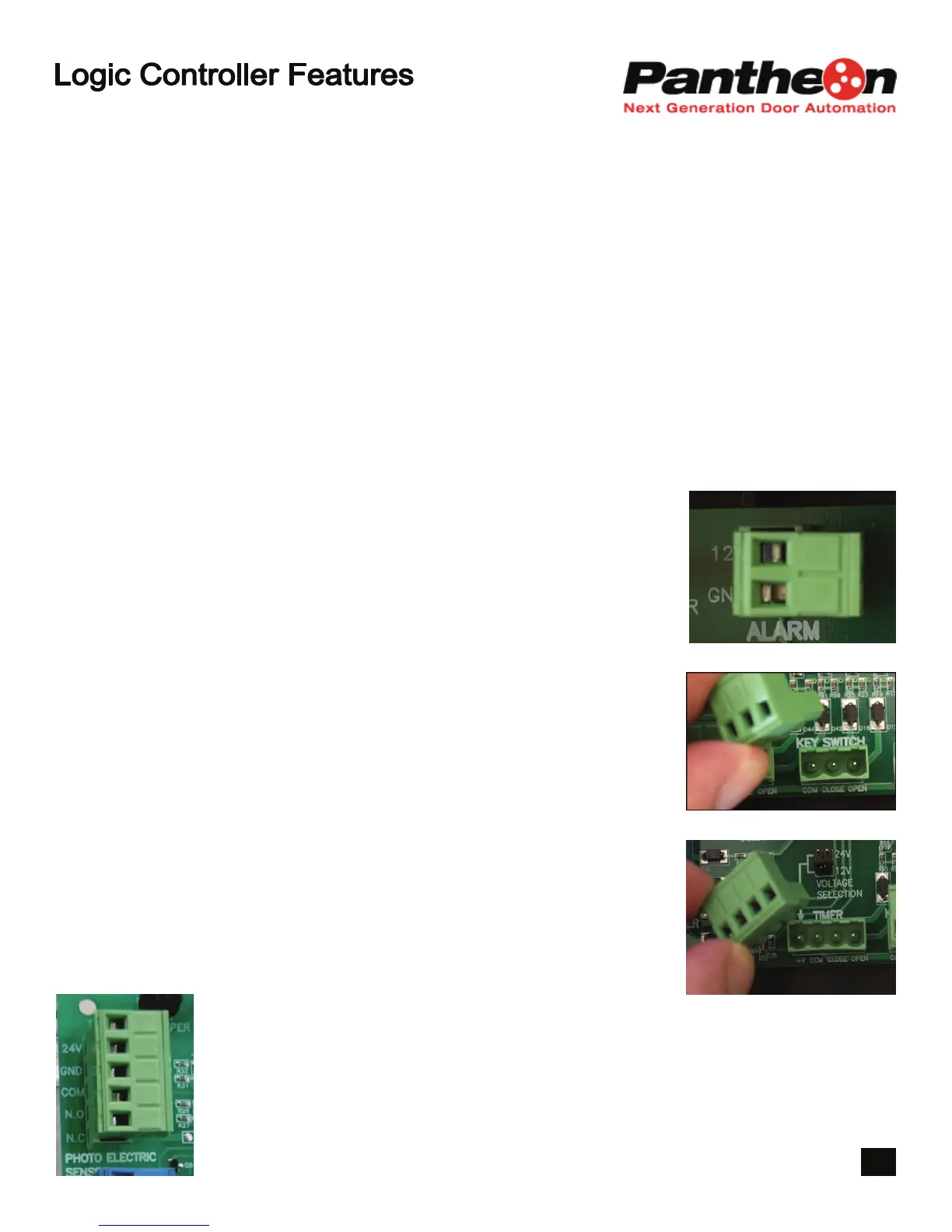

Diagnostic Fault System
• Designed to provide a series of audible “beep” sounds to indicate certain fault conditions
• Simple trouble shooting process intended to quickly identify and resolve fault conditions
• From…No “beep” = check the power is ON
• Right through to Three “beeps” = possible overload condition
Maximum Run Time
• Software will automatically limit the run time of the operator to 60 seconds
• Generally the operating time will be less than 30 seconds
• This feature is intended to prevent damage to the operator in the event of a mechanical problem
with the door or in the unlikely event that the overload or sensitivity software has failed to detect
a fault
Alarm
• Plug in terminal connection provides constant 12 V DC signal in the
event that an attempted forced entry is detected by the operator
• Simple interface with external alarm device—consult alarm manu-
facturers for details
Key Switch—Connection
• Plug in terminal connection for simple wiring of external key switch
device
Timer Device—Connection
• Plug in terminal connection for simple wiring of external timer device
such as may be required to open or close the door automatically during
24 hour (7 day) period
• 12 or 24 V DC power available to suit device
Photo Electric Sensor—Connection
• Plug in terminal connection for simple wiring of photo electric sensor—external
entrapment protection device
