Controls
4

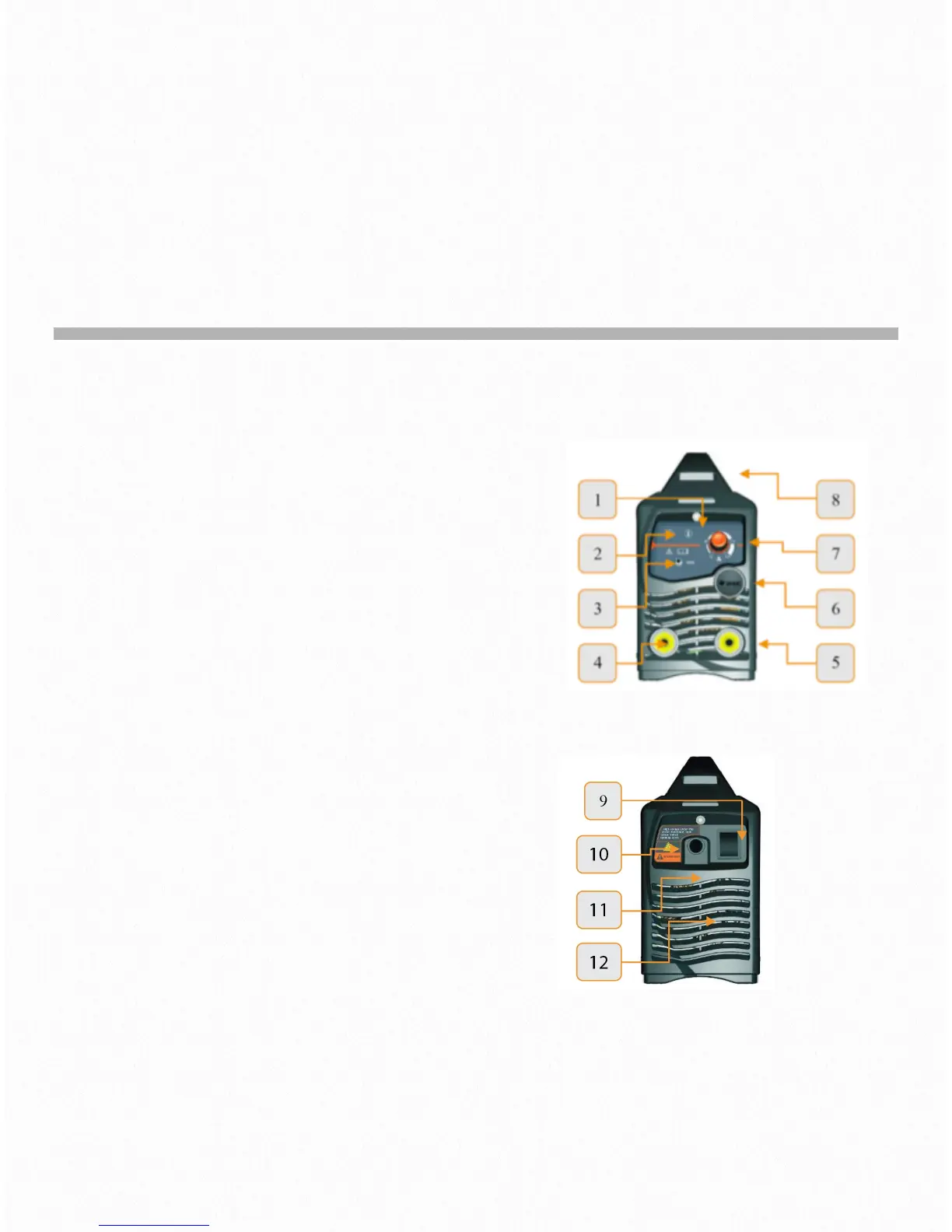

Front view
1. Overheating LED: Overheating LED on indicates that the temperature
inside the machine is too high and the machine is under overheating
protection status.
2. Power LED: Power LED on indicates that the power switch of the
machine is on.
3. MMA/TIG switch: To toggle between MMA and TIG.
4. "+" Output terminal: To connect the electrode holder.
5. "-" Output terminal: To connect the work clamp.
6. Trademark
7. Welding current knob: To adjust the output current.
8. Handle
Rear view
9! Power switch
10! Warning label
11! Input cable gland
12! Cooling fan
