Rack mount Series UPS (1~3kVA) User ‘s Manual
-5-
2 .Structure and Basic Principles
2.1 General Structure
This series UPS 1~3kVA have LED or LCD display for choice. And they could
be used as tower and rack mount type UPS
2.1.1 1~3kVA series Front Panel Structure
1~3kVA series UPS Front Panel have LED or LCD display.

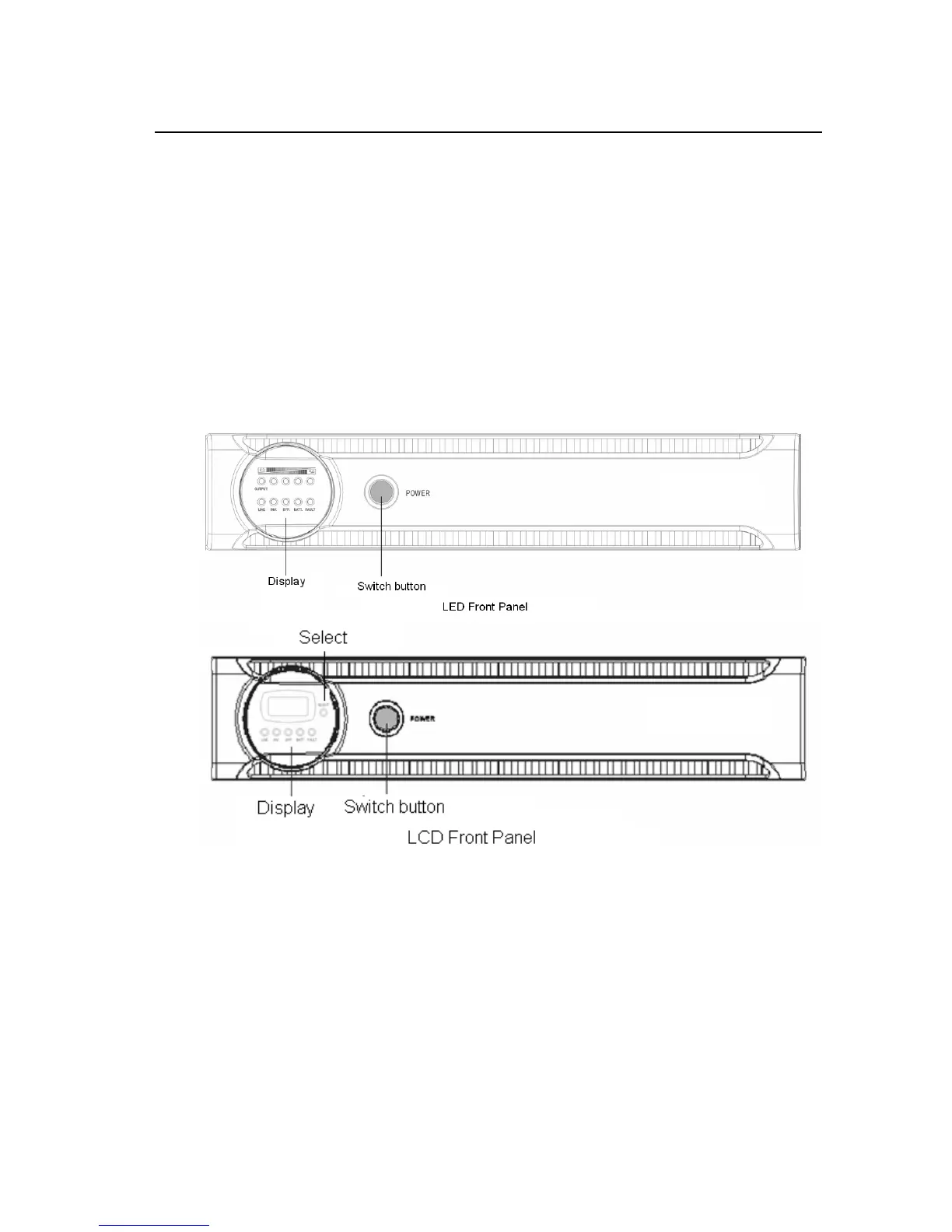

Fig. 2-1 Front Panel
2.1.2 1kVA Rear Panel Structure
1kVA UPS standard type has batteries internal. But for long backup type, the
batteries are external, it has DC input port, please refer to Figure2-2.
