The label listed below should be kept
permanently affixed to your RV:
The RV is equipped with
a master fuel pump
disconnect switch
located on the exterior
of the fuel station. Make
sure this switch is
turned “OFF” when the
fuel station is not in use.
A grounding clip is
attached to the fuel
nozzle. This clip MUST be attached to the
component or vehicle being fueled in order to
ground it to the RV. Do not continue adding fuel
after the fuel pump’s automatic shut off stops
dispensing fuel.
To dispense fuel
Be sure the fuel tank has fuel in it prior to
operating the fuel pump. Ensure the fuel is not
contaminated with debris.
1. Attach the
grounding clip to the
item or vehicle being
fueled.
2. Pull on the master
fuel pump
disconnect switch
located on the
exterior of the fuel
station to turn it
“ON”.
3. Turn “ON” the fuel pump with the lever
located on the pump.
4. Insert the nozzle into the receiving tank
and squeeze the nozzle handle.
5. When done, release the nozzle handle to
stop the flow of fuel.
6. Turn “OFF” the fuel pump with the lever
located on the pump.
7. Push in the master fuel pump disconnect
switch to turn it “OFF”.
The following warning label should be kept
permanently affixed inside the fuel station
compartment.
Fuel filler cap
Remove the fuel filler cap by slowly turning it
counterclockwise and waiting for any “hiss”
noise to stop. Then unscrew the cap all the
way. To close the fuel filler cap, securely turn
the cap clockwise until you hear clicking
sounds. If you need to replace the fuel tank
filler cap, use only a cap specified for your RV.
44
SECTION 7
FUEL SYSTEM
WARNING
LL PILOT LIGHTS, APPLIANCES, AND
THEIR IGNITERS (SEE OPERATING
INSTRUCTIONS) SHALL BE TURNED
OFF DURING REFUELING OF MOTOR
FUEL TANKS AND/OR L.P. - GAS
CONTAINERS.
JA-123

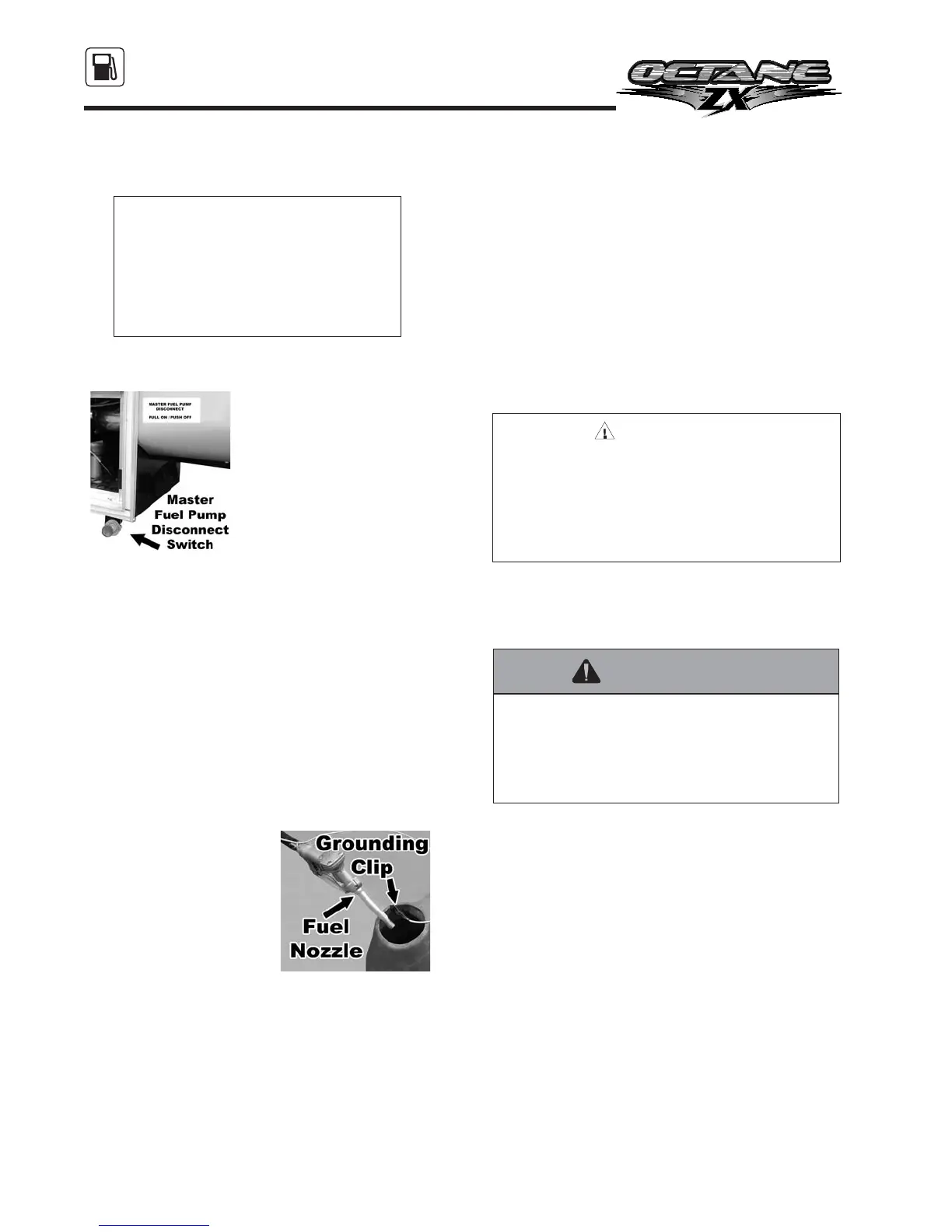

Fig. 7.2 Re-fueling warning label
Fig. 7.3
Fig. 7.4
Grounding clip
DANGER
NO SMOKING.
BEFORE DISPENSING OF FUEL TURN OFF ALL ENGINES,
FUEL BURNING APPLIANCES AND THEIR IGNITERS (SEE
OPERATING INSTRUCTIONS). GROUND THE RV. DO NOT
DISPENSE FUEL WITHIN 20 FEET OF AN IGNITION SOURCE
OR WITHIN 10 FEET OF ANOTHER RECREATIONAL VEHICLE
OR STRUCTURE.
FAILURE TO COMPLY COULD RESULT IN FIRE, DEATH OR
SERIOUS INJURY.
Fig. 7.5 Before dispensing fuel label
WARNING
Do not replace the fuel fill cap with one of a
different type. Use of a substitute cap may
create excessive fuel system pressure,
resulting in fuel station damage and
improper operation in a collision.
