Jayco 2008 Octane ZX User Manual

OEM WHEEL LUG TORQUE CHART

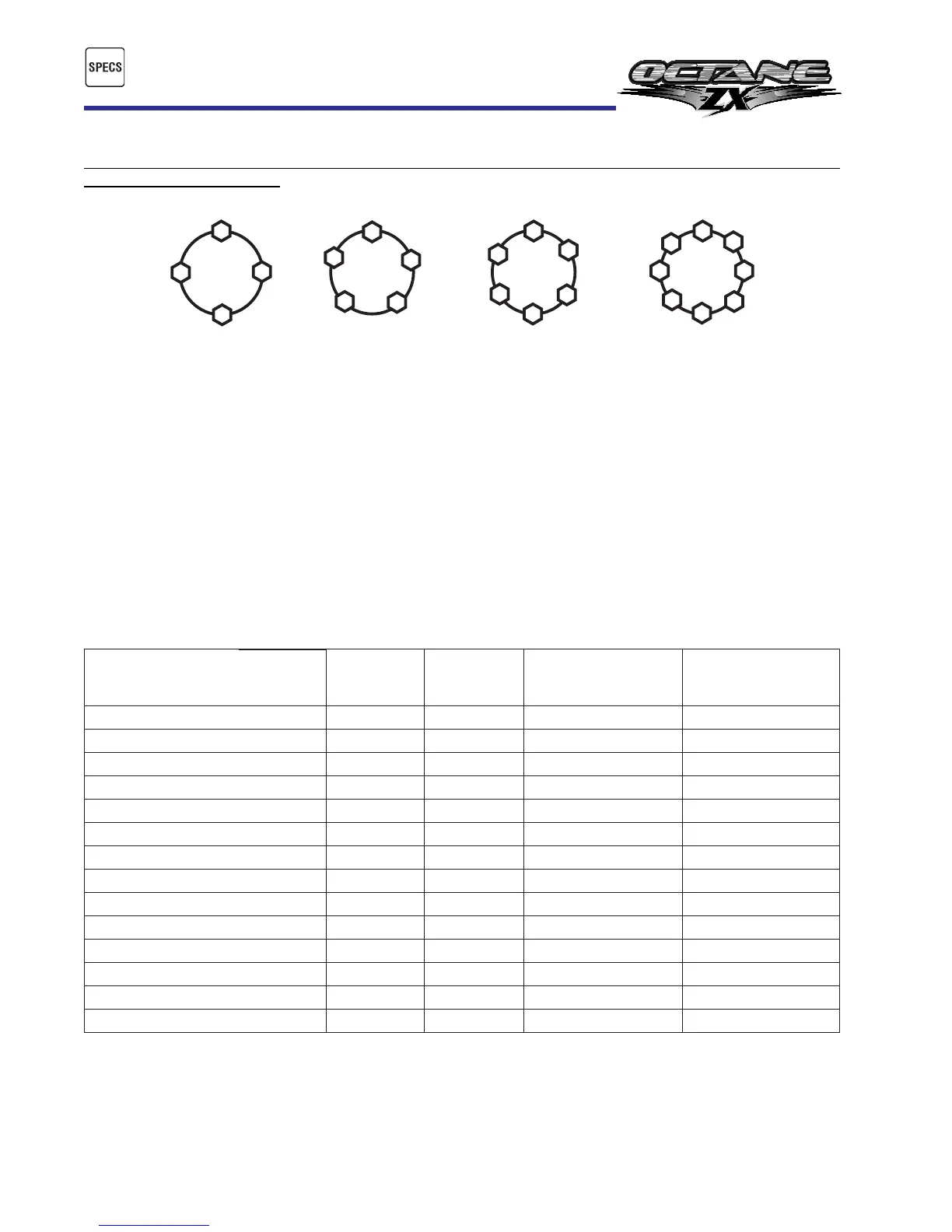

Wheel Lug Nut Diagrams:
Wheel Torque Instructions: *All torque wrenches mentioned below must have settings visible for auditing purposes.
1. Start lug nuts with fingers on studs to avoid cross threading.
2. Stage 1, Torque: Impact lug nuts in a star pattern* until snug to rim. –See Wheel Lug Nut Diagram
3. Stage 2,Torque: Use properly calibrated torque wrench to torque each lug nut, in a star pattern, to
the values indicated. Wheels must remain stationary during torquing process for control purposes.
–See Wheel Lug Nut Torque Chart and Wheel Lug Nut Diagram
4. Stage 3, Torque: Use properly calibrated torque wrench to torque each lug nut, in a star pattern, to
the values indicated. Wheels must remain stationary during torquing process for control purposes.
–See Wheel Lug Nut Torque Chart and Wheel Lug Nut Diagram
Lug Nut Rim Type Stage 1 Stage 2
Stage 3
Recommended Final
Torque Range
Acceptable
Torque Range
4-Lug Nuts 12" Steel 20-25 ft/lbs 30-50 ft/lbs 65-75 ft/lbs 50-75ft/lbs
5-Lug Nuts 13" Steel 20-25 ft/lbs 30-50 ft/lbs 65-75 ft/lbs 50-75ft/lbs
5-Lug Nuts 13" Chrome 20-25 ft/lbs 30-50 ft/lbs 65-75 ft/lbs 50-75ft/lbs
5-Lug Nuts 14" Steel 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
5-Lug Nuts 14" Chrome 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
5-Lug Nuts 14" Aluminum 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
5-Lug Nuts 15" Chrome 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
6-Lug Nuts 15" Steel 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
6-Lug Nuts 15" Aluminum 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
6-Lug Nuts 15" Chrome 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
6-Lug Nuts 16" Steel 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
6-Lug Nuts 16" Chrome 20-25 ft/lbs 70-90 ft/lbs 110-120 ft/lbs 90-120 ft/lbs
8-Lug Nuts 16" Steel 20-25 ft/lbs 70-90 ft/lbs 120-130 ft/lbs 110-130 ft/lbs
8-Lug Nuts 16" Aluminum 20-25 ft/lbs 70-90 ft/lbs 120-130 ft/lbs 110-130 ft/lbs
92
SECTION 12
SPECIFICATIONS & GLOSSARY
1
2
3
4
1
2
3
4
5
1
2
3
4
5
6
4-Lug Nuts
5-Lu
g
Nuts
6-Lug Nuts
1
2
3
4
5
6
7
8
8-Lug Nuts

Jayco 2008 Octane ZX Specifications

General

Brand	Jayco
Model	2008 Octane ZX
Category	Utility Vehicle
Language	English
