SECTION 8-PLUMBING SYSTEMS JAYCO TOWABLE
Refer to the Outside Utility Center section for details.

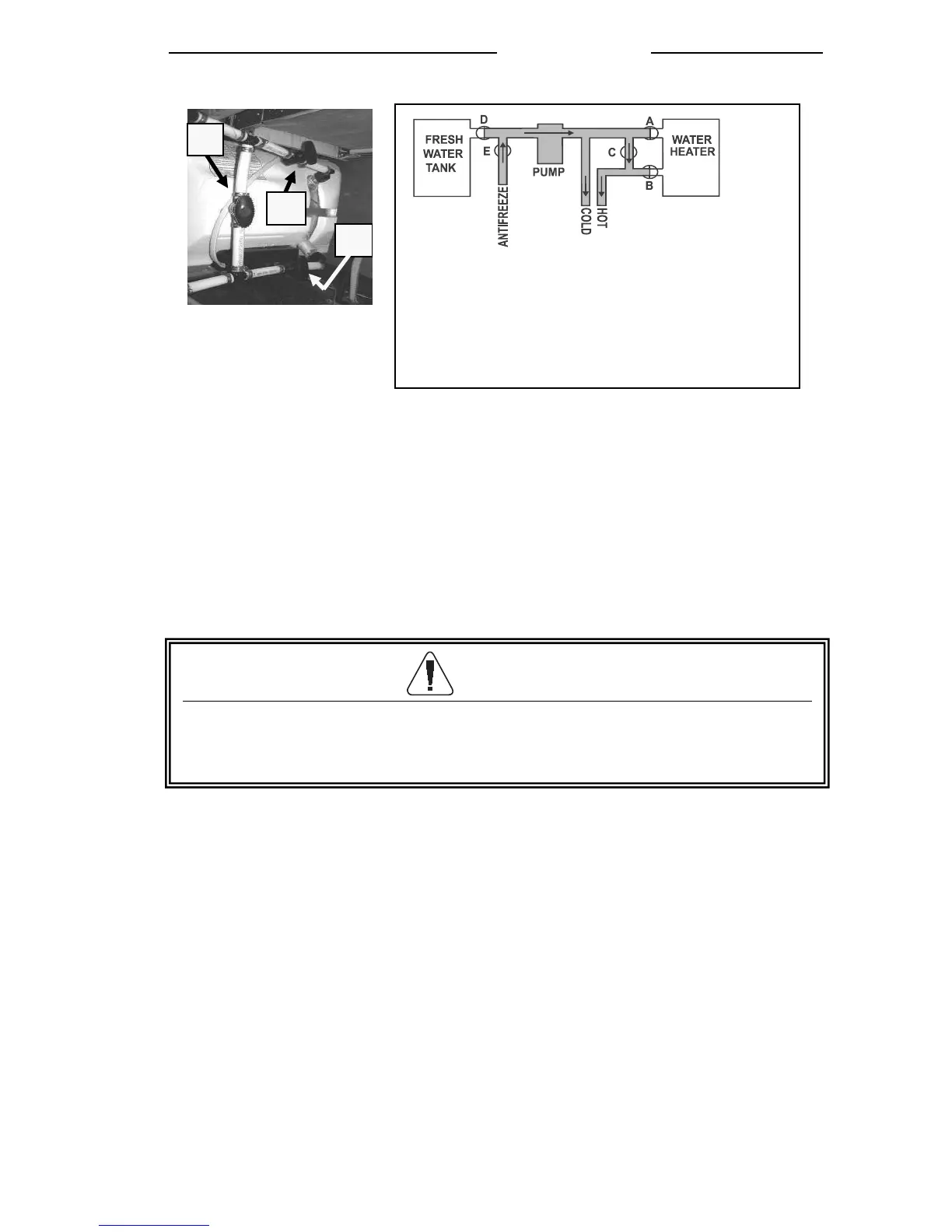

NOTE: In the Water Heater Bypass Diagram, valve D is the fresh water tank shutoff.
Valve E is used to introduce RV antifreeze into the lines when winterizing the system and
has a clear hose attached to it. See Winterizing the Plumbing System in this manual.
Valves D & E are typically located in the vicinity of the water pump which can be under a
dinette bench, kitchen island, or bed.
Water heater switches (if so equipped):
The water heater switches are located on the monitor panel. Refer to the Monitor Panel
section of this manual for function details.
FAUCETS
The faucets operate much the same way as the faucets in your home. Make sure there is
sufficient water available and, if dry camping, the 12-volt water pump is turned ON before
operating.
To open the faucets, turn the hot and cold knobs ON and adjust the temperature to your
comfort level. Close the faucets when a sufficient amount of water is released, turn the
water pump OFF if dry camping.
BATHROOM TUB / SHOWER
The shower faucet includes a vacuum breaker for the shower. There are two purposes for
this breaker:
To prevent siphoning water through the hose from another fixture.
To prevent water from being retained in the hose.
The showerhead DOES NOT have a complete shut-off valve (the complete shut-off is at
the faucet). The showerhead may drip slightly in the OFF position after use; this is normal
and does not indicate a leak or defect.
WARNING
Water temperatures over 125°F (49°C) can cause severe burns instantly or death from
scalds; therefore, be careful when using hot water. Always test the water temperature
before showering or washing.
