SECTION 6-ELECTRICAL SYSTEMS JAYCO TOWABLE
COMMAND CENTER
The command center is typically a panel located just inside the entrance door or in the
living area of the recreation vehicle, and contains switches and controls for electrical
functions for the RV. Depending on your model, the command center may be a panel
complete with switches, or it can be a group of switch pods mounted to a recessed panel
inside a cabinet. The systems monitor (which indicates tank levels and battery charge)
may be included on this panel (Refer to the Monitor Panel section). Some models may
have the switches/controls mounted directly to the wall in the living area or vicinity of the
entrance door.
Command Center Panel:
Typical items found on this panel include (may vary depending on model):
 Fuel gauge and hour meter with switches for fuel pump and fuel levels
 Lighted red pump switch, lighted red water heater switches (electric & LP gas)
 Generator start / stop switch
 Tank heater switches
 Light switches for porch lights, exterior security lights, interior lights, awning
LED lights, front cap LED accent lights
 Cargo bed red lighted master control switch
 Slideout control switches (press and hold to extend / retract)
 Awning control switches (press and hold to extend / retract)
Command Center Panel with Switch Modules:
Items may include separate switch modules and controls that are mounted to a recessed
plastic panel.
Typical items found on this panel include (may vary depending on model):
 Systems monitor with LED indicators for tank levels and battery charge status
 Systems monitor includes lighted red switches for pump and water heater
 Slideout switches (press and hold to retract / extend slideouts)
 Light switches for porch lights, exterior security lights, interior lights, awning
LED lights, power entry step

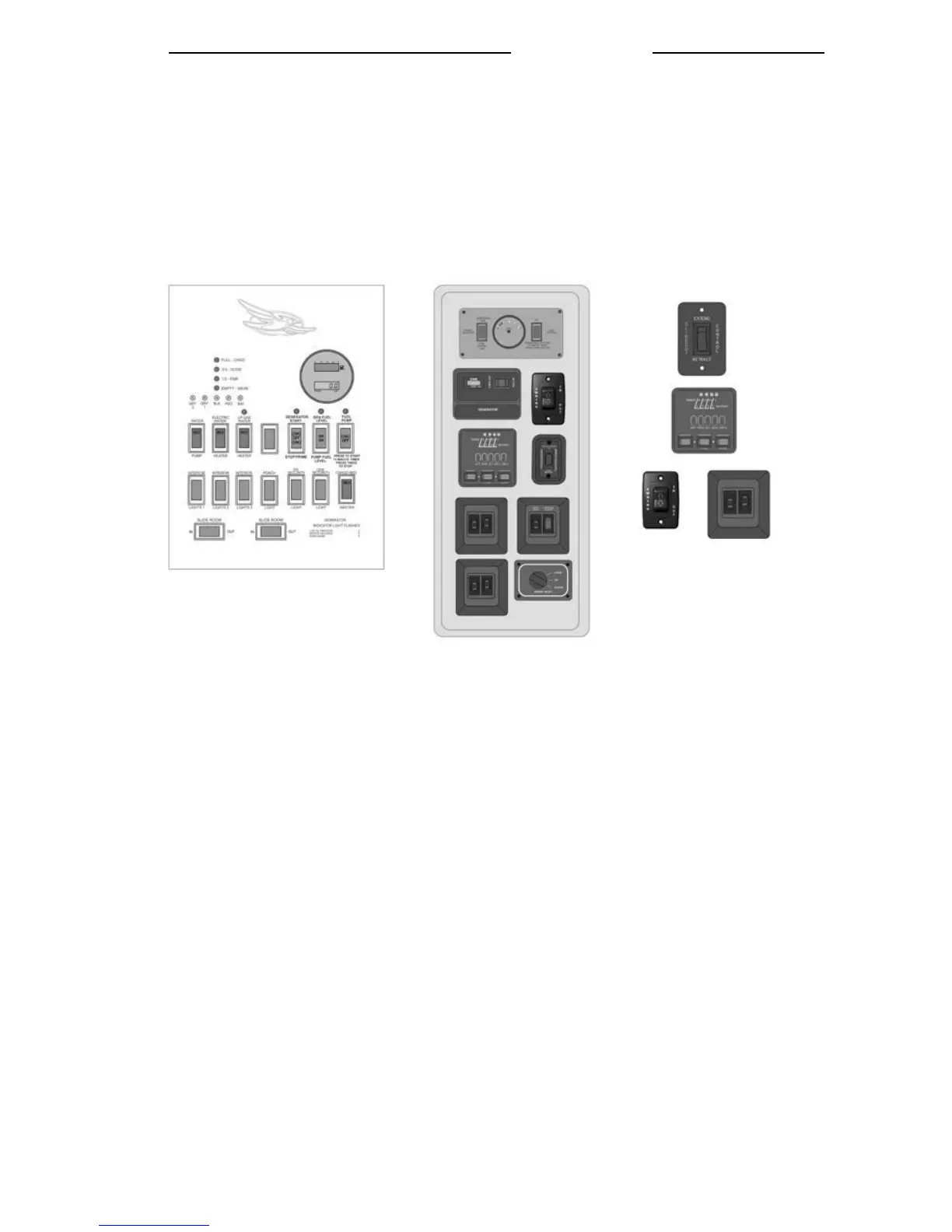

Command Center Panel
W/Switch Modules
Command Center Panel
Mounted to wall
