SECTION 7-PROPANE SYSTEMS JAYCO TOWABLE

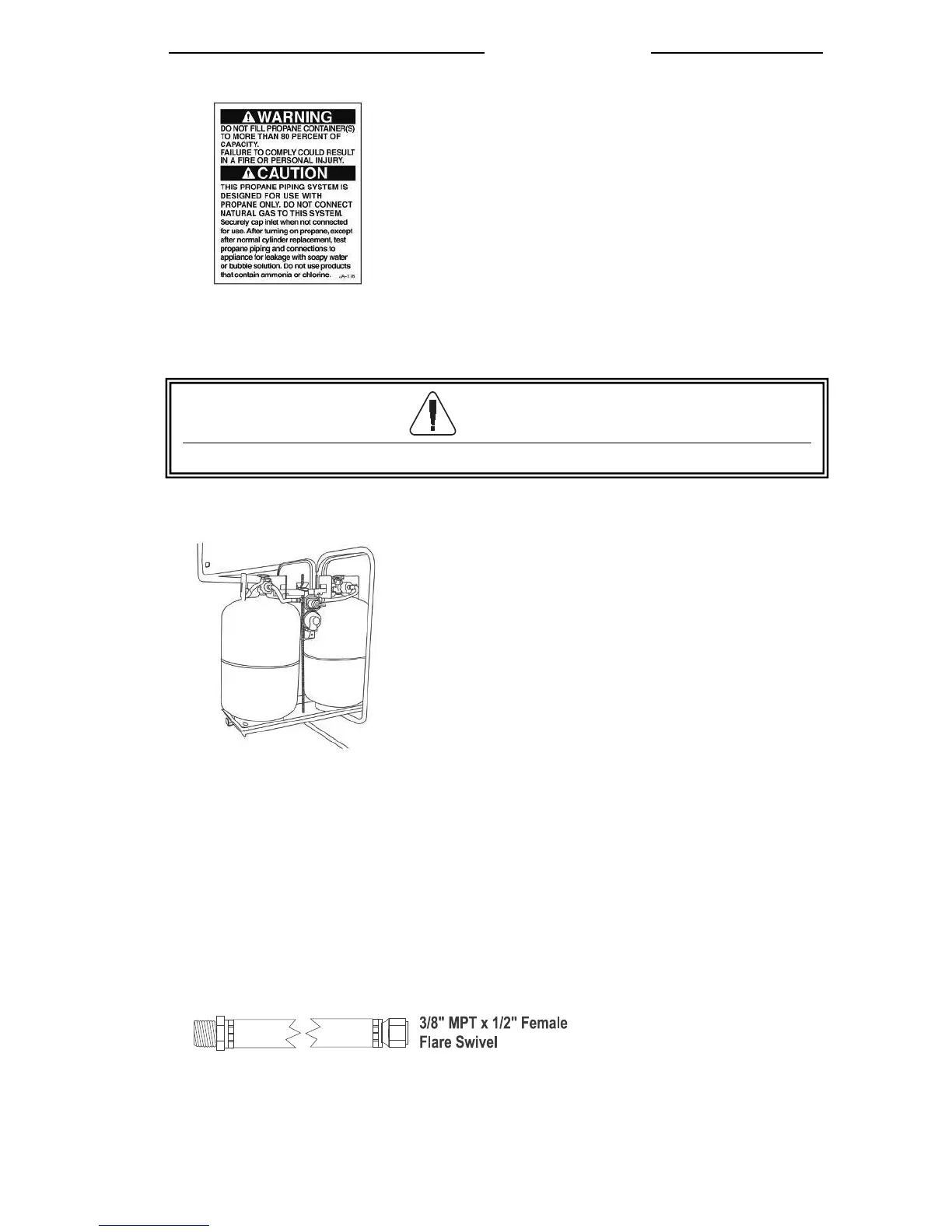

The following label should be kept permanently affixed to your RV.
“Do not fill to more than
80%” label
(Label appearance may not be exact)
Refer to your Warranty Packet for more information on the LP gas system components.
INSTALLING PROPANE CYLINDER(S)
Located in a recessed compartment or housing (if so equipped)
Two propane cylinders
1. Connect the 3/8” low-pressure hose to the outlet of the two-stage regulator.
2. Place the cylinder on the bracket in the recess compartment or housing and secure
them so the outlets of the cylinder valves are facing the “sidewalls” of the
compartment or housing (opposite of each other).
3. Mount the regulator on the center back wall of the compartment or housing so the
vent is pointed downward.
4. Attach the 1/4” inverted flare x 18” Type-1 pigtail hose to the regulator inlet and the
right hand swivel nut to the cylinder valve.
Main Supply Hose – Low Pressure
Attach the main supply hose from the regulator to the brass manifold fitting in the frame of
the trailer. The swivel brass nut on the main hose will be your final attachment.
Main supply
hose
