12. Insert canvas by folding the hard edge of tent over 180º and inserting this portion
into channel of screen door, starting at the bottom. This assures the best possible fit.
13. On units without slideout, set up kitchen flip top and attach the stove grate.
14. Exit unit and pull bed flaps over corners of bed until flaps are extended under the
bed. Securely attach Velcro.
WARNING: Ensure that all Velcro fasteners are mated and securely fas-
tened. Loose areas could result in openings large enough for an infant, child
or adult to fall through. Never leave small children in the camper unattended.
CAUTION: The roof has a weight limit of 350 pounds in the travel mode. The
maximum weight that can be lifted is 250 pounds. The items in the soft storage
compartments will need to be included in this final total. Remove all soft storage
compartments before lowering or raising the roof. Weights for the soft storage
compartments are as follows:
SofStor™ Overhead Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 lbs.
SofStor™ Wardrobe Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 lbs.
SofStor™ Organizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 lbs.
Kid Stuf Cargo Bunk Organizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 lbs.

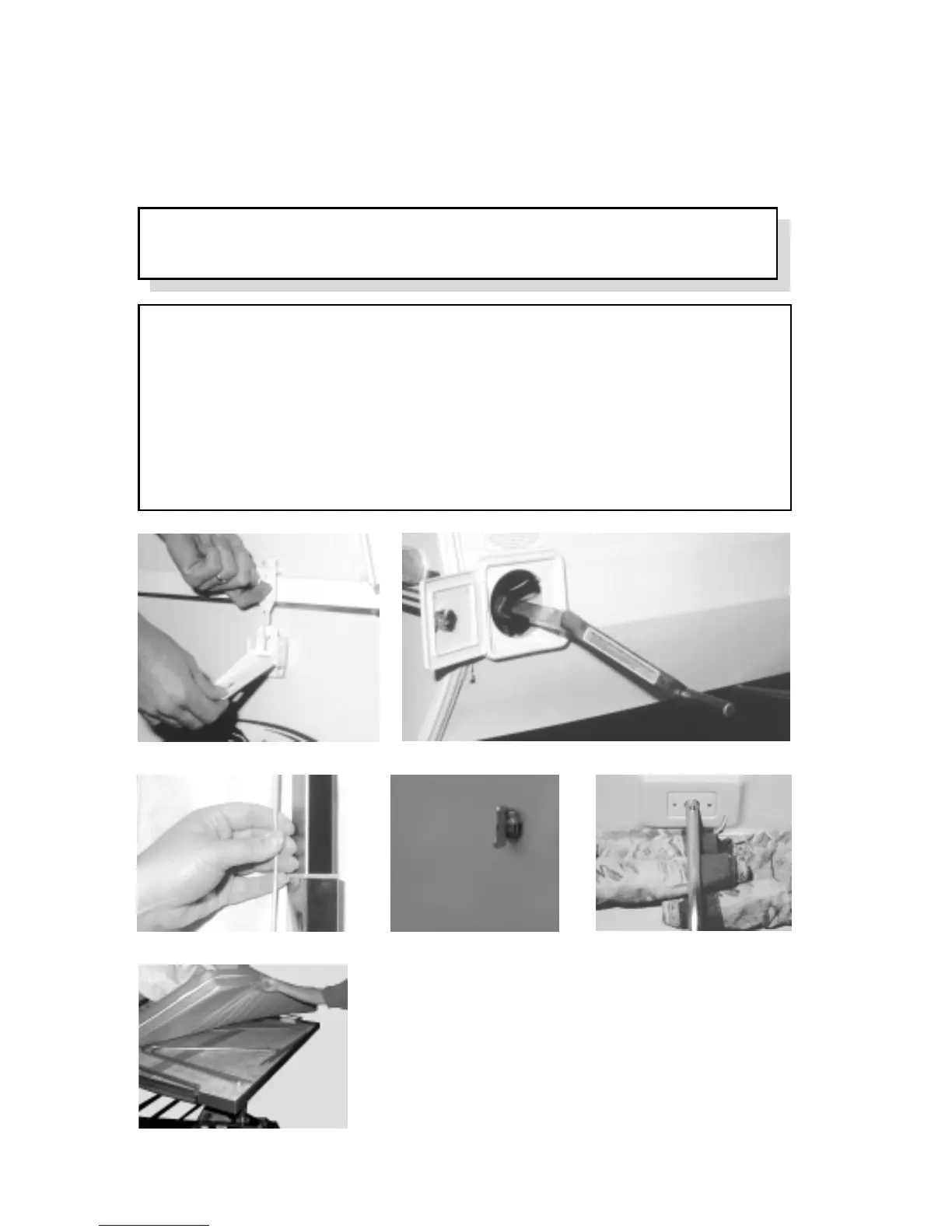

Fig. 3-2 Fig. 3-3
Fig. 3-4 Fig. 3-5 Fig. 3-6
Fig. 3-7
