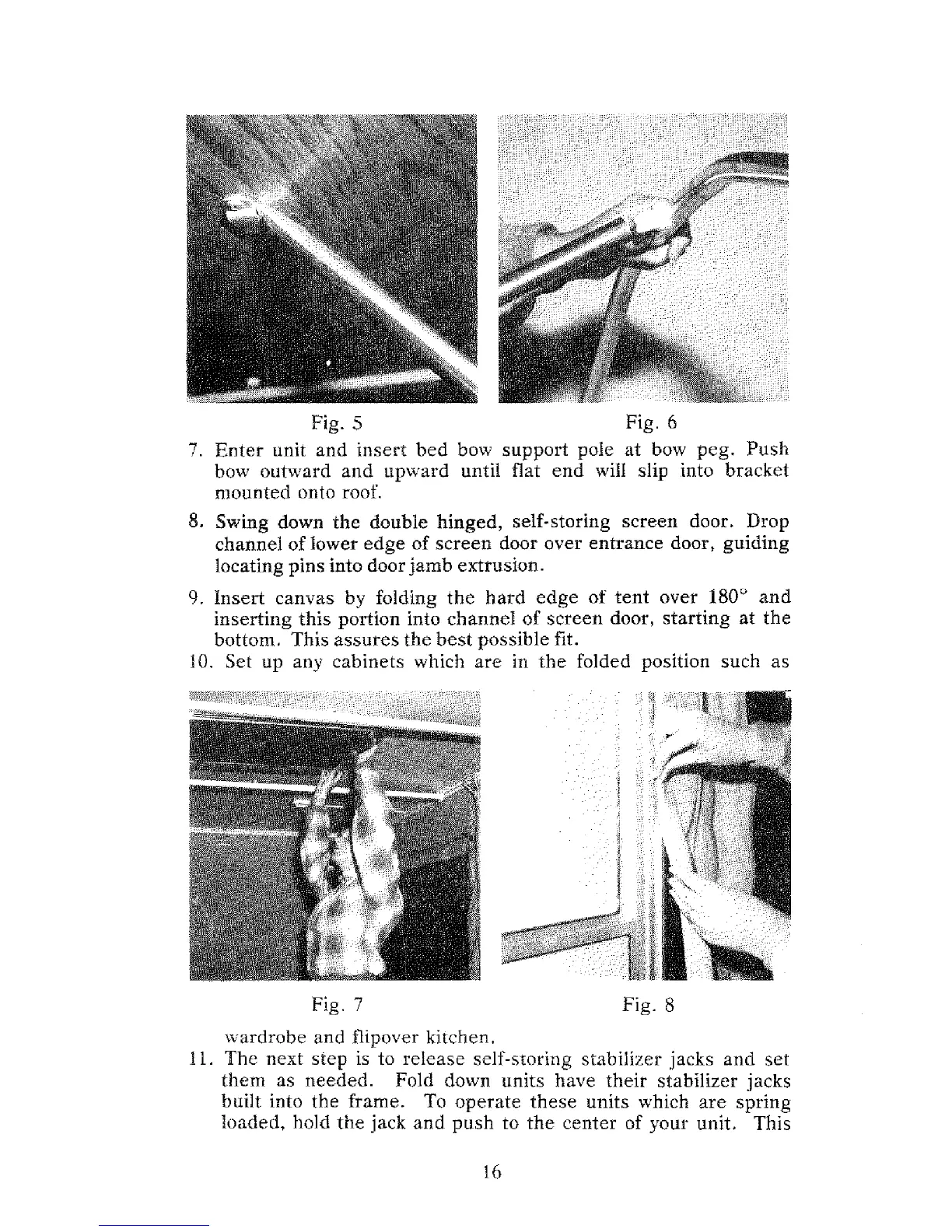

Fig.
5
Fig.
6
7.
Enter
unit
and
insert bed bow support
pole
at
bow
peg.
Push
bow
outward and
up~vard
unril flat end will slip into bracket
mounted onto roof.
8.
Swing
down
the
double
hinged,
self-storing
screen door.
Drop
channel of
lower
edge
of screen door over entrance door, guiding
locating
pins
into
door
jamb
extrusion.
9.
Insert canvas
by
folding
the
hard
edge
of
tent
over
180"
and
inserting this
podion
into
channel
of
screen door,
starting
at
the
bottom. This assures the best possible
fit.
10.
Set
up
any
cabinets which
are
in
the
folded
position such
as
Fig.
7
Fig.
8
wardrobe and flipover kitchen.
11.
The
next
step
is
to release self-storing
stabilizer
jacks
and
set
them
as
needed.
Fold
down
units
have
their stabilizer
jacks
built
into
the frame.
To
operate these units which
are
spring
loaded,
hold
the jack and push to the center of
your
unit.
This
