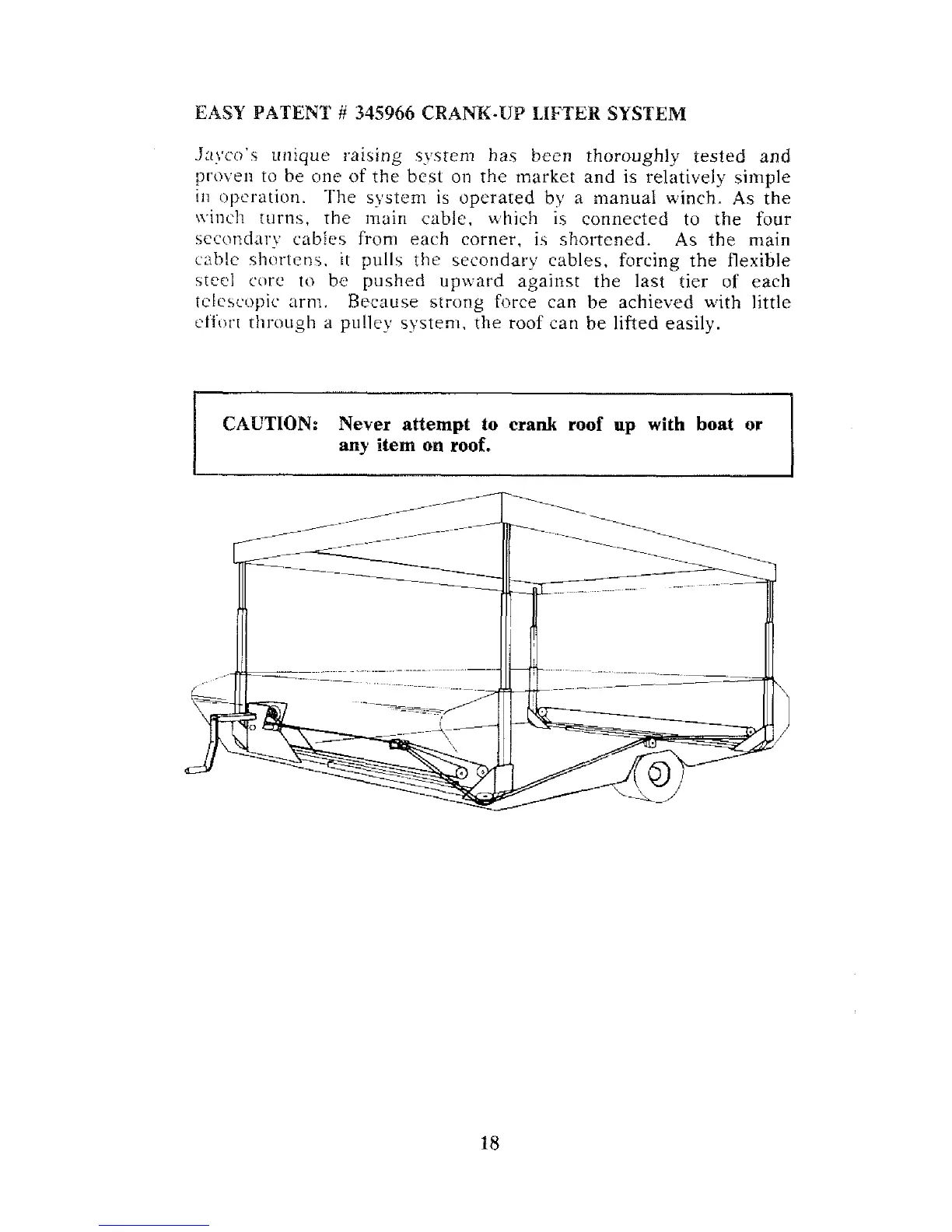

EASY PATENT # 345956 CRANK-UP LIFTER SYSTEM
J:I,.CO'S unique raising sysfem has been thoroughly tested and
proven to be one of the best on the market and is relatively simple
in operation. The system is operared by a manual winch. As the
n.inc11 [urns, the main cable, which is connected to the four
sccondarv cables from each corner, is shortened. As the main
cable sl-i&zcns, it pulls the secondary cables, forcing the flexible
stccl cwrc to be pushed upward against the last lies of each
rclcscopic arm. Because srrong force can be achieved with little
ct'l'otr through a pullc system. the toof can be lifted easily.
CAUTION:
Never attempt to crank roof up with boat or
my item on roof.
