65
The Electrical System
The RV electrical system is comprised of two independent electrical systems. One operates
o of 12-volt DC power and the other o of 120-volt 60hz AC power. All installations have
been made in compliance with industry standards applicable on the date of manufacture.
Because the electrical equipment and associated circuitry are engineered into a dedicated
system specic to your RV, do not make unauthorized changes or add xed appliances to it.
Service and/or modication of the electrical system should only be performed by qualied
electrical technicians using approved materials, components, and methods meeting current
safety and code requirements. Consult your dealer’s service department for assistance.
To read more about the various components incorporated into the RV electrical system,
please refer to the information contained in your Warranty Packet.
For motorized vehicles, consult the Chassis Guide for information pertaining to the chassis
drivetrain electrical system.
Before working on the electrical system:
Make sure the inverter/charger (if so equipped) is turned “o” before disconnect-
ing batteries.Disconnect the shore power cord.
If equipped with a generator, turn o the generator and disable the automatic gen-
erator start functionality.
Turn o the battery disconnect switch (if so equipped).
Turn o the 120V main circuit breaker.
Disconnect the negative 12VDC battery terminal from the battery.
Use caution when using metal tools. If a tool contacts a battery terminal or
metal connected to it, a short circuit could occur which could cause personal
injury, explosion or re.

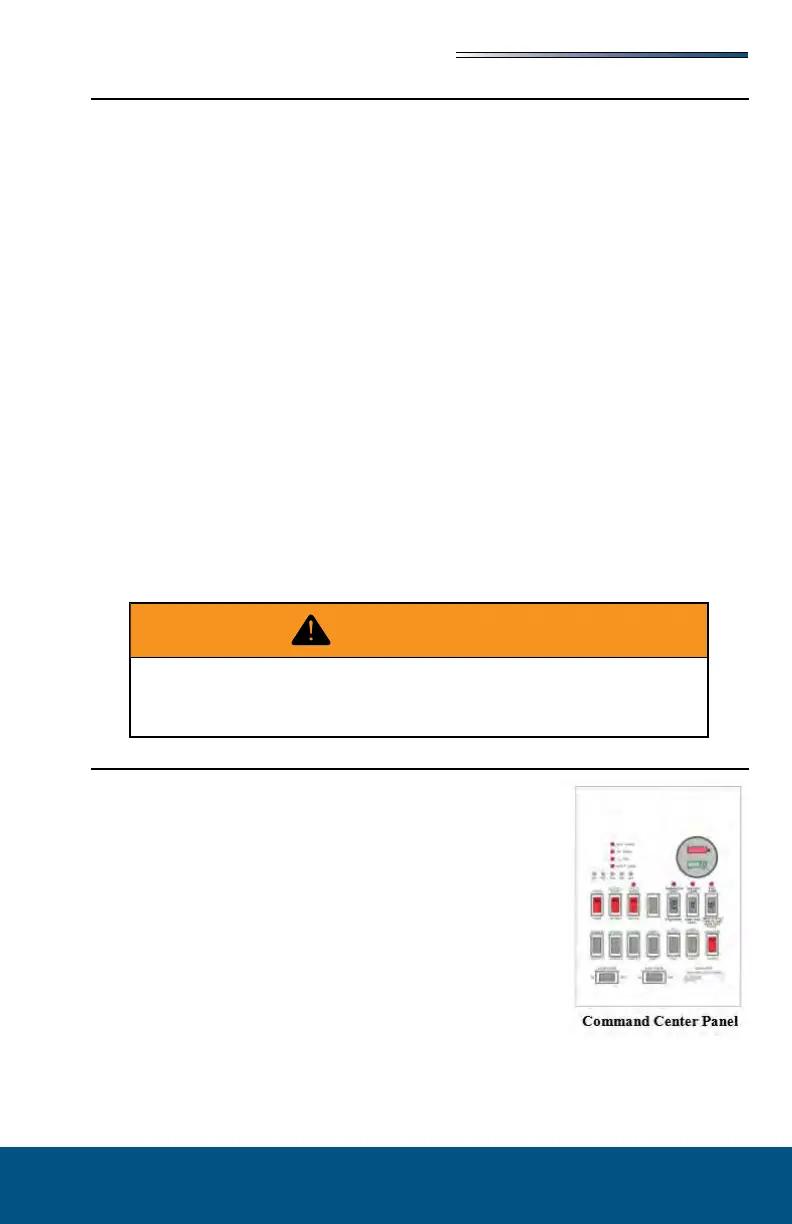

Command Center
The command center is typically located inside the entrance door
or in the living area of the RV, and contains switches and controls.
Command center applications, congurations and components
may vary by model.
Items found on these panels may include:
Fuel gauge and hour meter with switches for fuel pump
and fuel levels; fuel station (if so equipped) on/o
switch
Lighted red pump and water heater switches (electric
and LP gas)
Generator start / stop switch; may include hour meter
Tank heater switchesLight switches for porch lights, exterior security lights, in-
terior lights, awning LED lights, front cap LED accent lights, power entry step
Cargo bed red lighted control switch
Slideout control switches (press and hold to extend / retract)
