Trailer Hitch Plug
All exterior vehicle lights are 12-volt DC and wired in accordance with the standard
accepted color code:

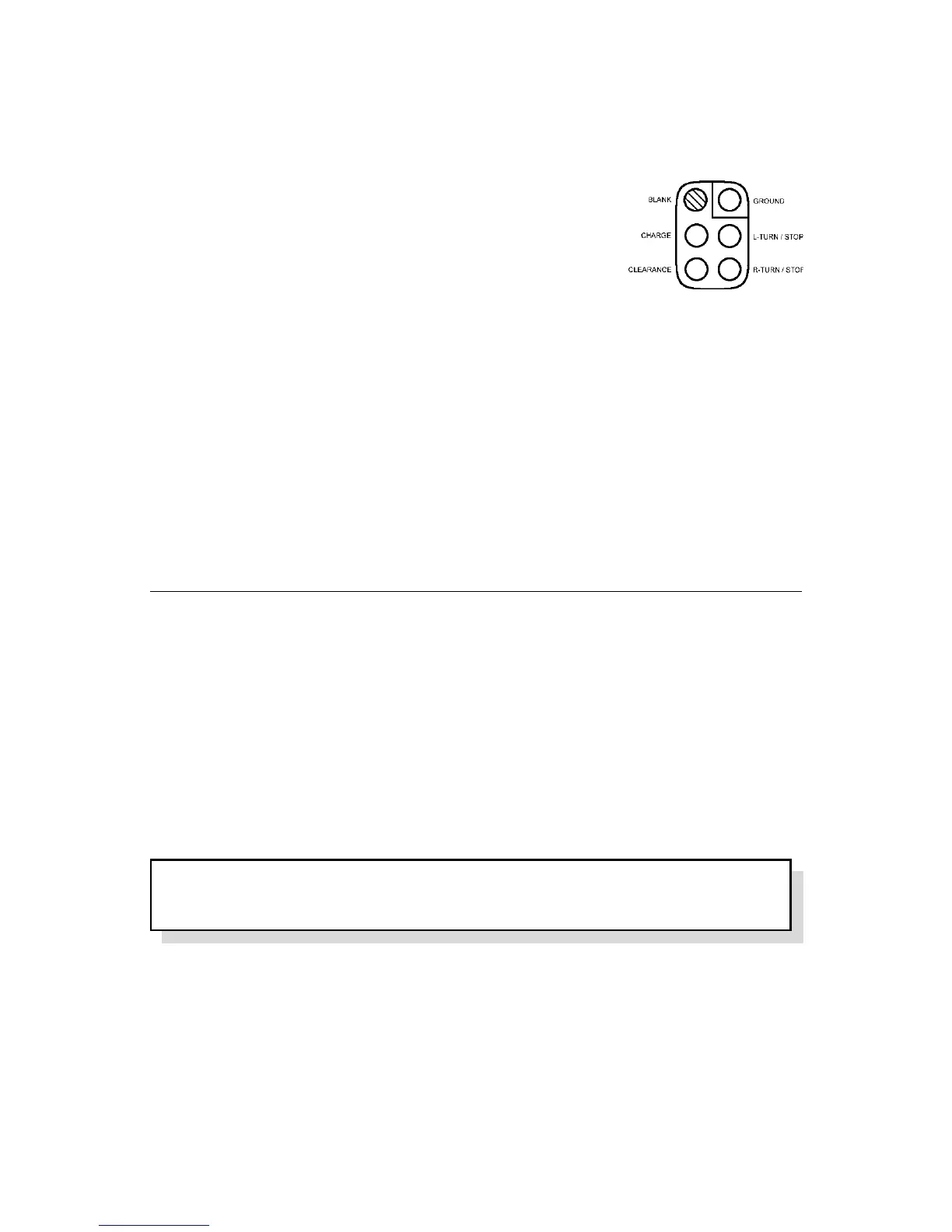

6-Way Poly Mold with Cover
10G WHITE Ground
16G RED A LH Turn/Brake
16G BROWN RH Turn/Brake
10G RED Charge Line
16G GREEN Running
12G LIGHT BLUE Brake
The connector between tow vehicle and trailer may build up corrosion over a period of
time. This is caused by weather elements, and should be cleaned occasionally to insure
good electrical contact.
For the electric brake option, a brake controller must be installed to power the blue wire
when the brakes are applied. Included is a brake-away switch for emergency stopping.
See your dealer for installation.
Fuse and Bulb Chart
FUSES
Circuit
Operation Location Number Fuse Size Type
Interior Lights, Water Pump in converter 1 15 Blade
Refrigerator in converter 2 15 Blade
Furnace in converter 3 15 Blade
Battery Pac (exterior) in line by battery 4 20 Blade
LP Detector behind LP N/A 1 Blade
Some components listed above are options.
BULBS
Exterior Porch Light #912
Exterior Tail Light / Signal #1157
Exterior Clearance #194
Interior Interior Ceiling #921
WARNING: Do not replace circuit breakers or fuses with a higher current
rating than those supplied with the new camper. Over-fusing can cause a
fire hazard by overheating the electrical wiring.
When attaching wire leads to a tow vehicle, carefully insulate all connections for protec-
tion. Follow the instructions on instruction sheet provided with covered harness.
