Jaytech 600N - Installation (steel track)

- 5 -

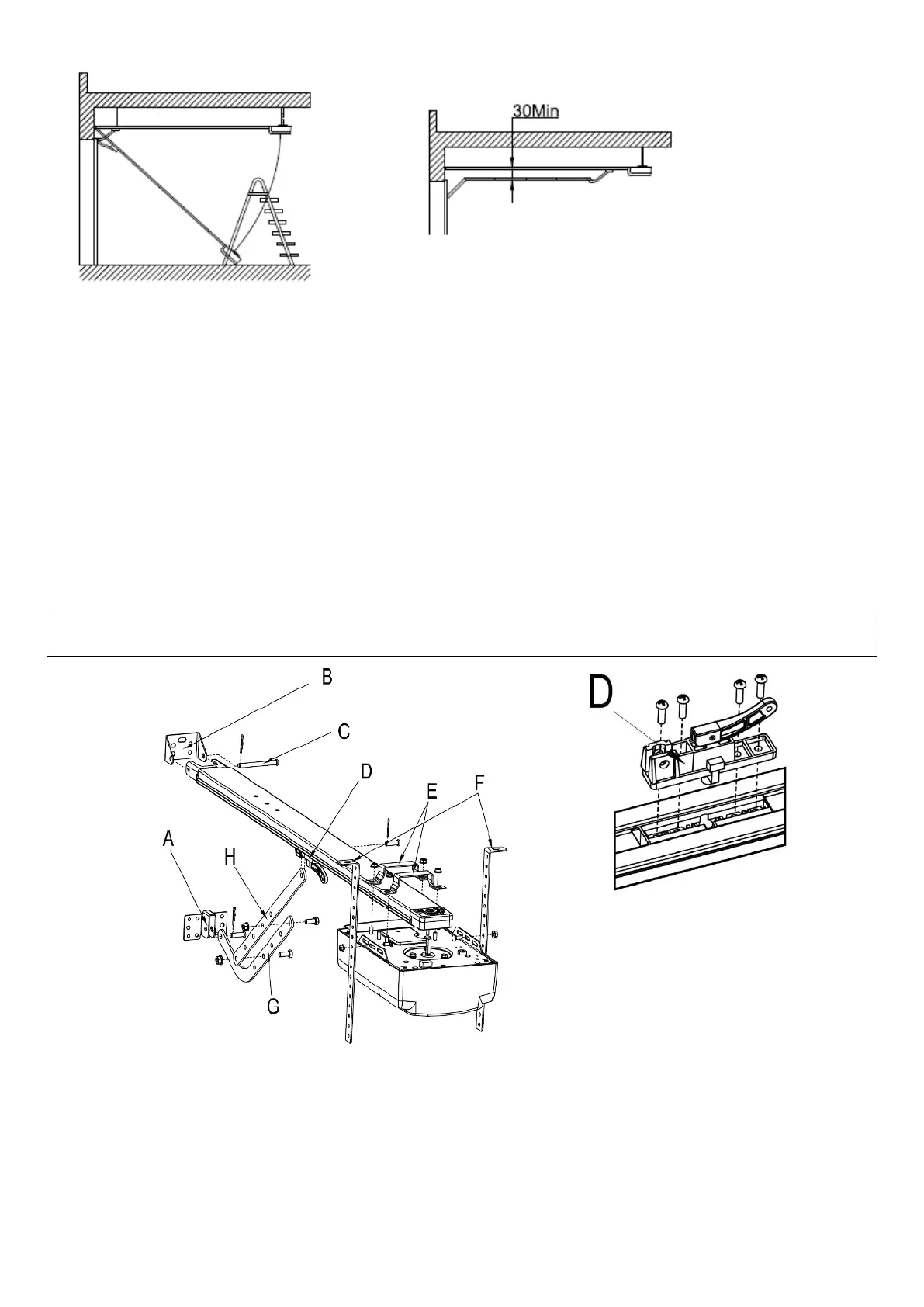

Maintain a minimum gap of 30mm between the top panel and the bottom of the rail (Fig. 4).
Make sure the track is horizontal. Place a spirit level on the track if required. Make sure the connection of the hanging
bracket is firm and secure (Fig.5, F)
Warning: Make sure the opener is affixed to a solid mounting point or joist and not to plasterboard. Failure to have a
safe and secure fixing can lead to opener falling and may cause serious damage and/or personal injury.
Installation (steel track)
1. Fix the wall bracket(B) to the wall 2cm-15cm above the torsion shaft or spring and central to the door.
2. Fix the steel track to the wall bracket using axis pin Φ8x80 (C) and cotter pin. (Fig. 5)
3. Fix garage door opener to the track using 2 x U brackets supplied(E). Then fasten using M6 nuts x4 supplied.
4. Fix the hanging bracket(F) to the edge of the opener as in Fig. 5 using M6x16 carriage bolts and/or rail hanger
supplied. If using rail hanger, bend tabs down after fixing to the track to secure.
Fig.3
Fig.4
Fig.6
Fig.5
