Special functions, optional parts
introduction and application

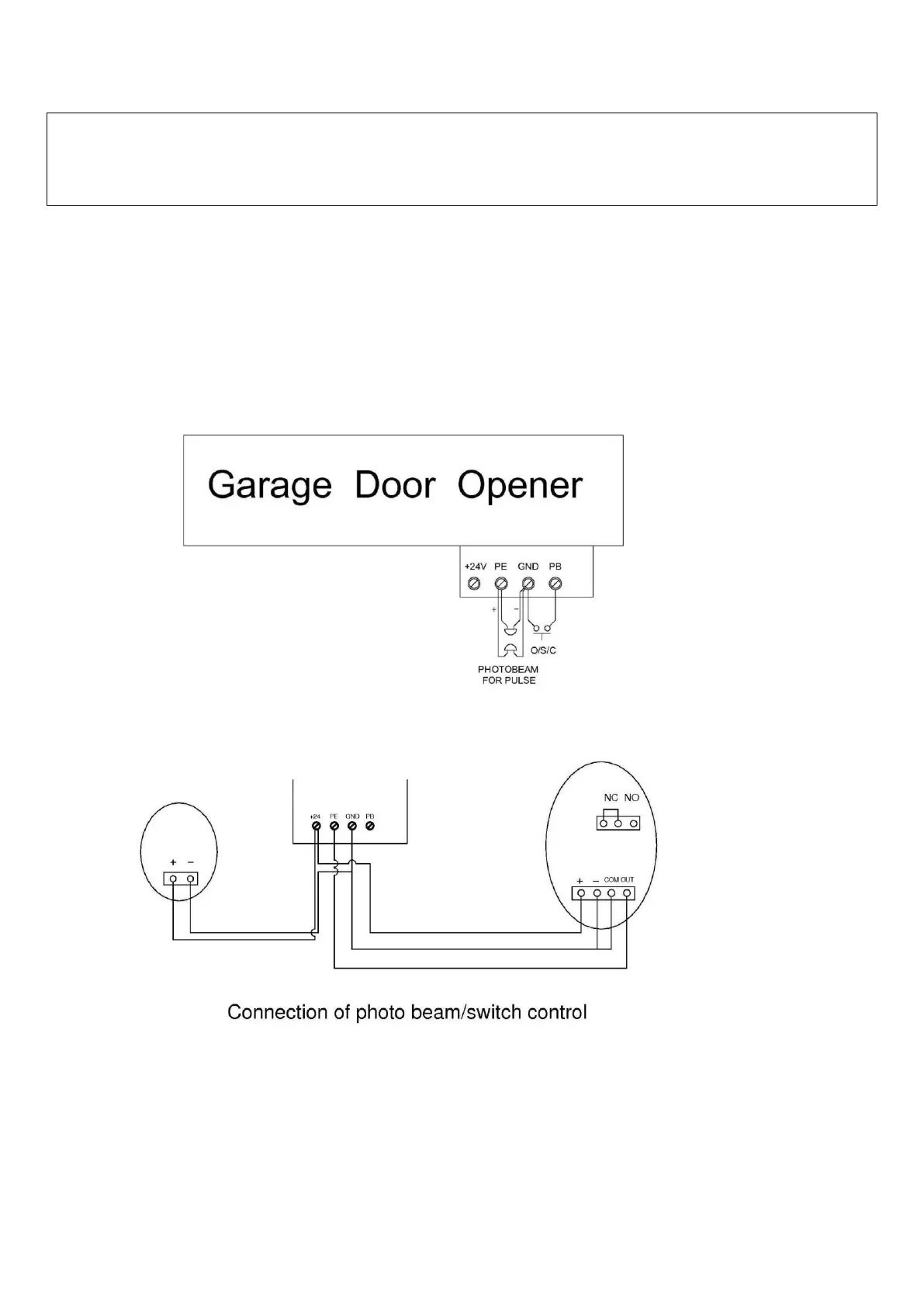

Photo beam/switch control connection (Fig.11, Fig.12)
Flashing light (optional)
There are corresponding interfaces for this function and provide 24v-35v flashing light
voltage. Connect the flashing light with DC 24v-28v, current≤100mA. When using AC 220V
power flashing lights, please match an adapter, and wiring as required (Fig.13).
Pass door (SD) protection (optional)
This function ensures that the door can’t be opened unless a small pass door is closed.
Connect according to Fig.14 .
