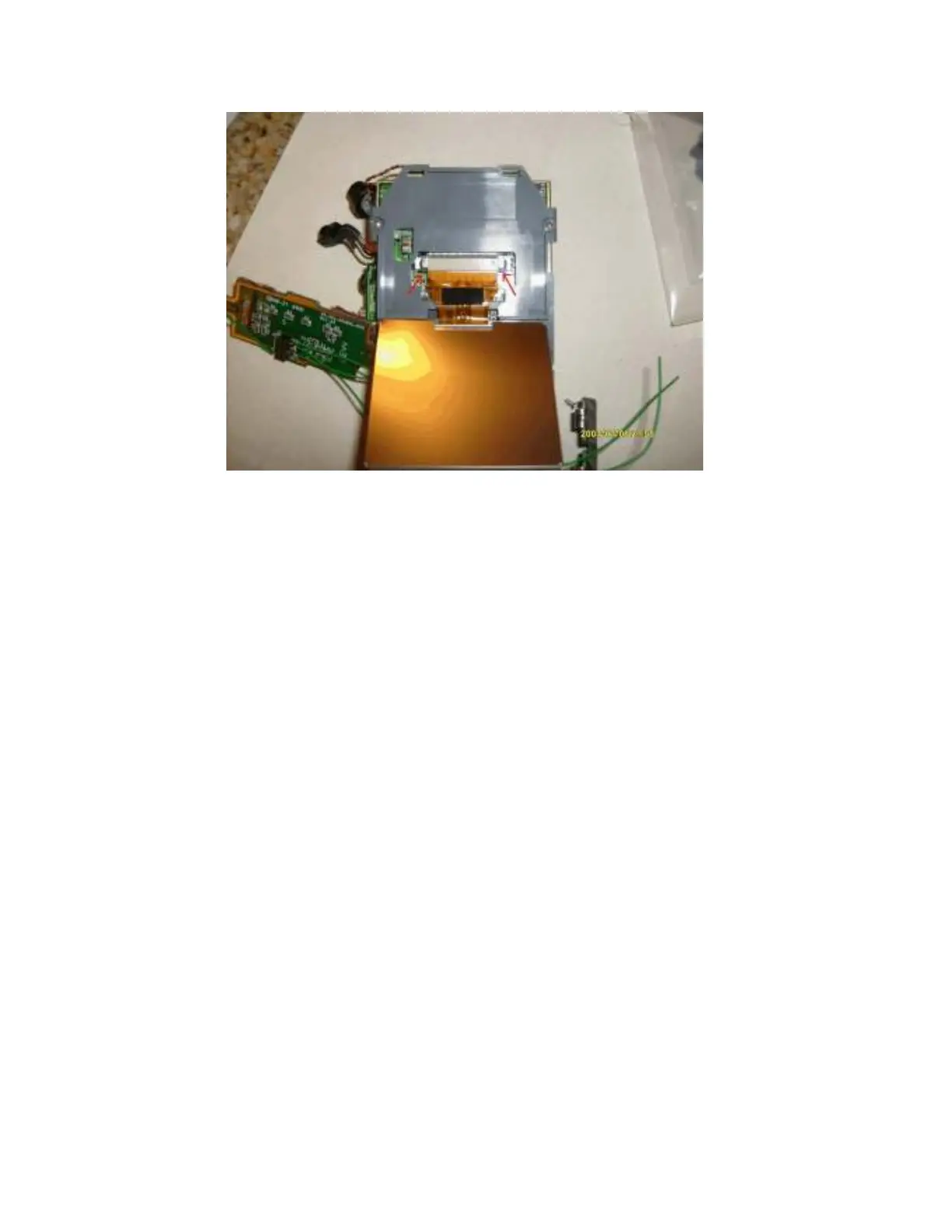

14)Now, flip the board over and remove the 4 screws which attach the gray lcd holder to the

main board.

15) Now you will see the two screws that hold the lens holder in place. Remove them and

remove the lens. BE CAREFUL NOT TO SCRATCH THE CMOS SENSOR ELEMENT

WHICH IS UNPROTECTED!!!
