REPAIR PARTS FOR DV-3E, DV-4E AND DV-6E
Current chrome cover will fit older black
ELIMINATOR models.
Black hammertone cover
no longer available
18
3
2
1
3
2
1
13
12
20
17
21
11
8
14
15
16
18
19
10
9
7
5
6
4

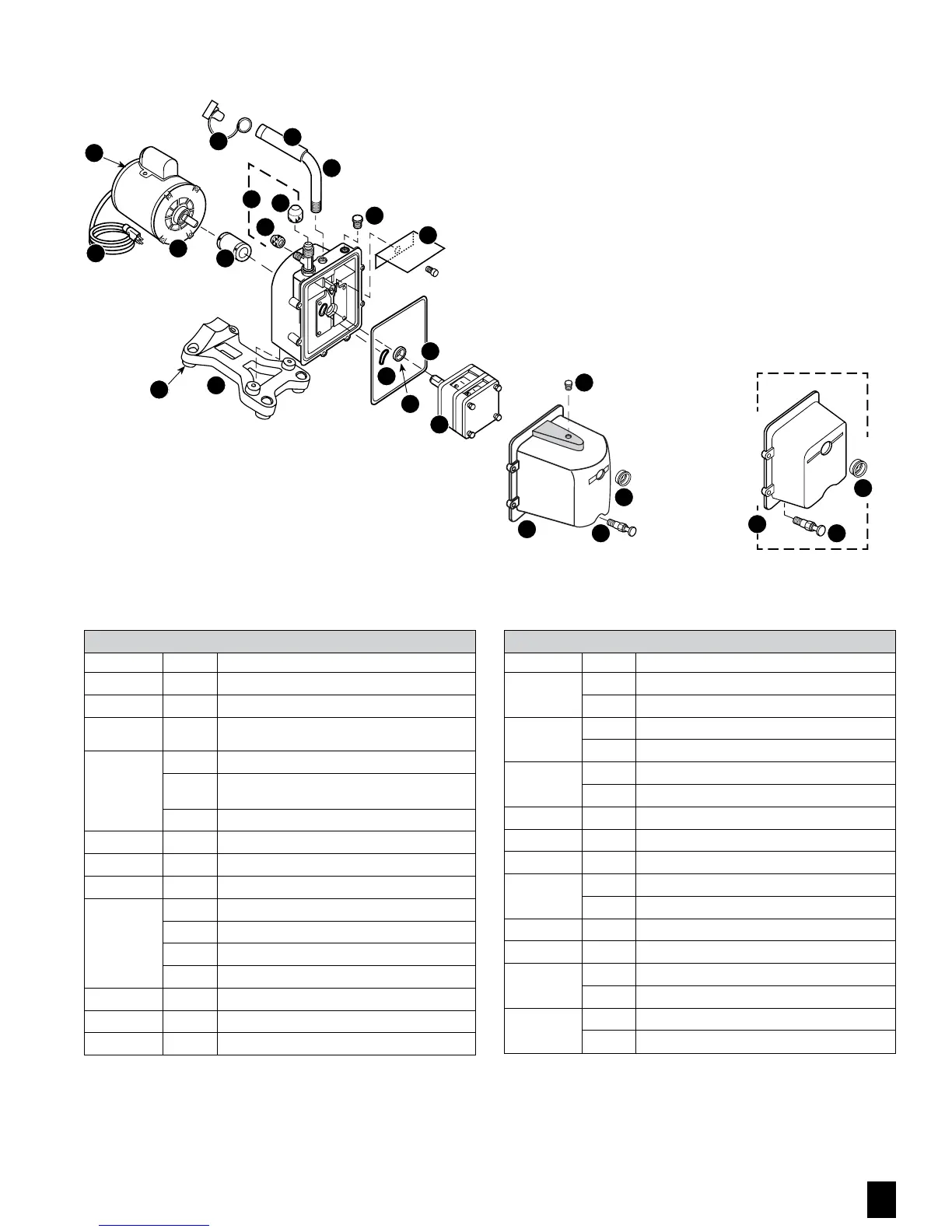

ELIMINATOR SERIES REPAIR PARTS
REF. NO. PART NO. DESCRIPTION
11
PR-207 1/2 HP, 115/230v, 50/60Hz motor w/line cord and switch
PR-206 1/2 HP, 115v/60Hz motor w/line cord and switch
12
PR-31 6' Line cord (Emerson
®
motor)
PR-58 6' Line cord (Marathon
®
motor)
13
PR-35 Rocker-switch 115v Marathon Motor (prongs)
PR-54 Rocker-switch 115v Emerson Motor (wire leads)
14 PR-63 Intake tee w/cap
15 NFT5-4 1/4" O-ring cap
16 NFT5-6 3/8" O-ring cap
17
PR-500 3/8" Rubber grip and cap
PR-501 1/2" Rubber grip and cap
18 PR-22 Oil fill plug w/o-ring
19 PR-40 Stainless steel splash guard w/screw
20
DV-EP6 3/8" Red tethered safety exhaust cap
DV-EP8 1/2" Red tethered safety exhaust cap
21
PR-205 3/8" Cushioned handle
PR-65 1/2" Cushioned handle
ELIMINATOR SERIES REPAIR PARTS
REF. NO. PART NO. DESCRIPTION
1 PR-1 Sight glass*
2 PR-2 Oil drain valve*
3 PR-10
DV-3E, DV-4E and DV-6E cover assembly w/sight glass, drain
valve and oil fill plug
4
PR-403 DV-3E Cartridge complete w/o-rings and cover seal
PR-404 DV-4E Cartridge complete w/o-rings and cover seal
PR-406 DV-6E Cartridge complete w/o-rings and cover seal
5 PR-217 Cover seal
6 PR-3 Shaft seal
7 PR-315 Trap intake o-ring
8
PR-208 2-1/2" Flexible coupler*
PR-308 7/8" Middle section; used w/PR-208 flexible coupler*
PR-6 2-1/4" Flexible coupler
PR-77 1-5/8" Middle section; used w/PR-6 flexible coupler
9 PR-62 Pump base w/rubber feet and screws (4)
10 PR-59 Rubber pump foot (1)
Not Shown PR-18 Cartridge valve repair kit
Repair parts can be ordered from your local JB wholesaler.
When ordering please provide the following information:
• Model number
• Serial number
• Part number and description
Emerson
®
is a registered trademark of US Motors. Marathon
®
is a registered trademark of Marathon Electric.
* Coat with thread sealant when replacing.
