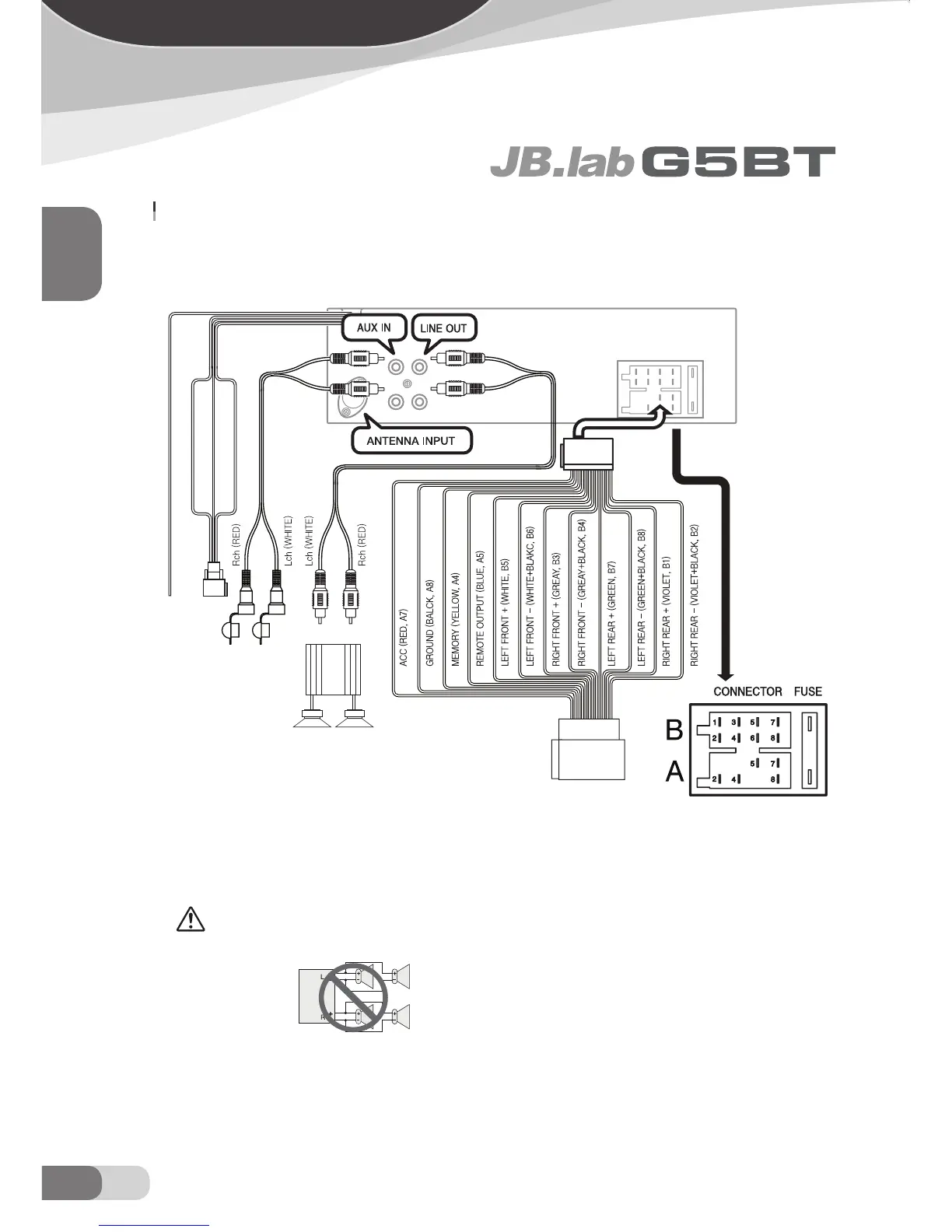

G5BT WIRING DIAGRAM
ENGLISH
06 EN
WIRING
Final Check
- Make use that all wires are properly connected and insulated.
- Make sure that the main unit is securely held in the mounting collar.
- Turn on the ignition to check the unit for proper operation.
- If you have difficulties, consult your nearest authorized professional installer for assistance.
CAUTION
Do not connect more than one speaker to one
set of speaker leads.
WHEEL GROUND (BLACK)
WHEEL KEY2 (BROWN)
WHEEL KEY1 (GREY)
AUTO ANTENNA (PINK)
AMP
To Next Page
