 Select one of the automatic, sound or static color modes on the master (the first COB-4BAR in the
DMX chain)
 Set all the other bars in SLAVE mode
 The projectors will now follow the program of the master COB-4BAR so they all work synchronously.

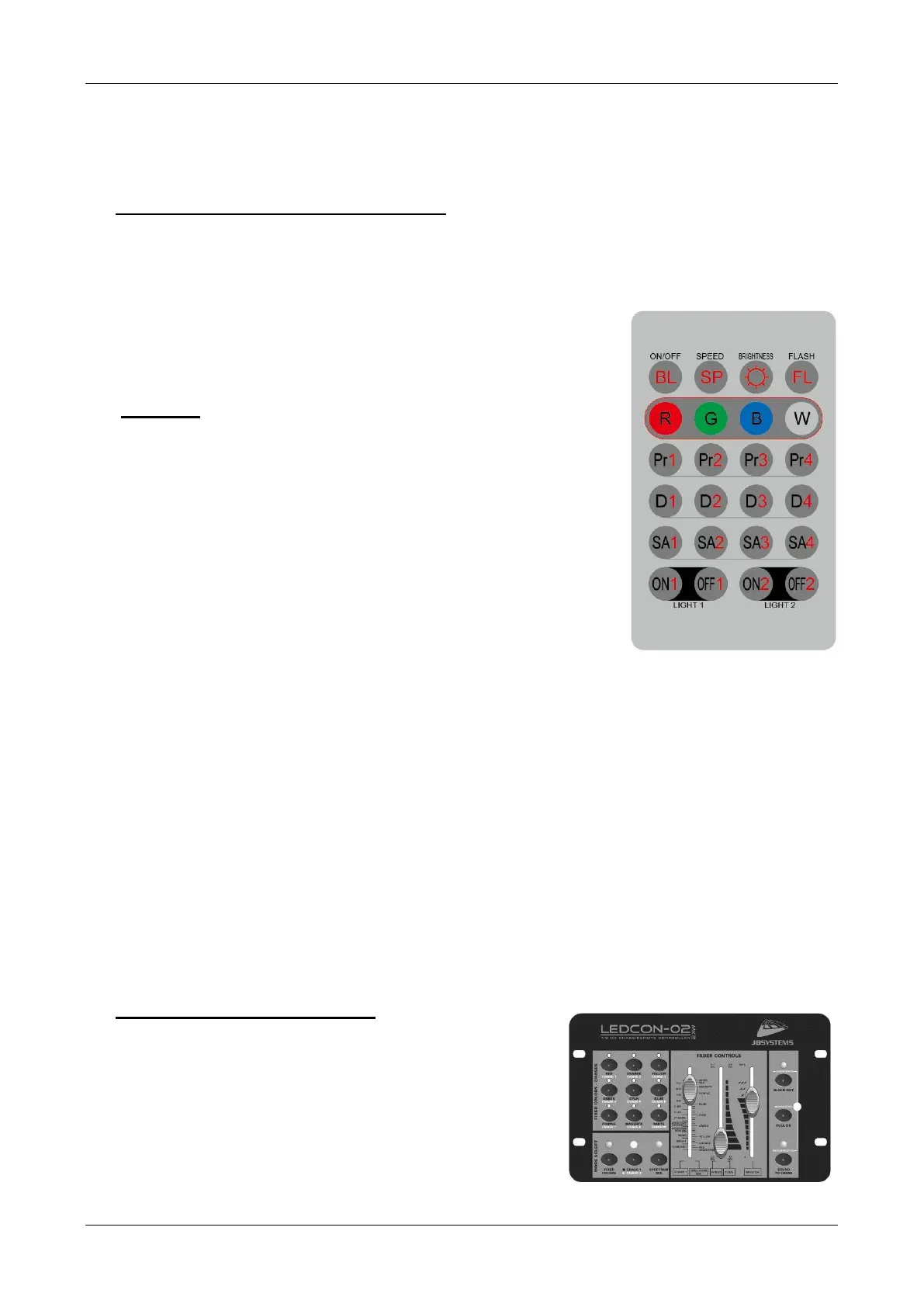

C. Controlled by the wireless remote controller:
To be able to use the wireless remote control, you need to enable this option in the 4BAR:
 Press the MODE button until IR ACTIVE is shown on the display.
 Press the ENTER button to be able to change the setting
 Use the DOWN and UP buttons to enable or to disable the remote control option (ON = remote control
enabled, OFF = remote control disabled).
 Press the ENTER button to confirm
 Press the MODE button until SLAVE & FOOT CONTROL is shown
on the display.
 Press the ENTER button to confirm
Functions:
 BL: is used to switch the LEDs off/on
 SP: is used to set the running speed when you are using the color
change or the color fade modes. Press this button several times to
select one of the 4 preprogrammed speeds. (Slow, medium, fast, off)
 BRIGHTNESS (Master Dimmer): is used to set the General
brightness of your projectors. Press this button several times to select
one of the 4 preprogrammed brightness levels. (50%, 75%, 100%,
off)
 FL: is used to activate the strobe (Flashing) mode. Press this button
several times to select one of the 4 preprogrammed flash
frequencies. (Slow, medium, fast, off)
 R is used to set the intensity of the Red LED source. Press this button
several times to select one of the 4 preprogrammed brightness levels.
(50%, 75%, 100%, off). Don’t forget that the brightness is also
influenced by the master dimmer ! (= BRIGHTNESS button)
 G is used to set the intensity of the Green LED source. Press this button several times to select one of
the 4 preprogrammed brightness levels. (50%, 75%, 100%, off). Don’t forget that the brightness is also
influenced by the master dimmer ! (= BRIGHTNESS button)
 B is used to set the intensity of the Blue LED source Press this button several times to select one of
the 4 preprogrammed brightness levels. (50%, 75%, 100%, off). Don’t forget that the brightness is also
influenced by the master dimmer ! (= BRIGHTNESS button)
 W is used to set the intensity of the White color (Red + Green + Blue together) Press this button
several times to select one of the 4 preprogrammed brightness levels. (50%, 75%, 100%, off). Don’t
forget that the brightness is also influenced by the master dimmer ! (= BRIGHTNESS button)
 Pr1, Pr2, Pr3, Pr4: These buttons are used to run the built-in color chase programs. Brightness, speed
and flash rate can be adjusted with the buttons BRIGHTNESS, SP and FL
 D1, D2, D3, D4: These buttons are used to run the built-in color fade programs. Brightness, speed and
flash rate can be adjusted with the buttons BRIGHTNESS, SP and FL
 SA1, SA2, SA3, SA4: These buttons are used to run the built-in sound controlled chase programs.
Brightness and flash rate can be adjusted with the buttons BRIGHTNESS and FL
Note: Maximum distance between the wireless remote and the fixture = +/- 10m
D. Controlled by the LEDCON-02 Mk2:
Follow the steps below to control the bar using the
LEDCON-02 Mk2
1. Select the specific LEDCON-02 setup in the default
modes:
 Press the MODE button until DEFAULTS is shown on the
display.
 Press the ENTER button to go into the Defaults mode.
 Use the DOWN and UP buttons till LEDCON-02 appears on
the display
