The bodypack transmitter operates in UHF band frequency with PLL synthesized control. UHF 16
preprogrammed selectable frequencies to avoid interference. Uni-directional condenser capsules
with different characters for various choices. Use 1.5V x 2 AA size batteries for low operating
cost.

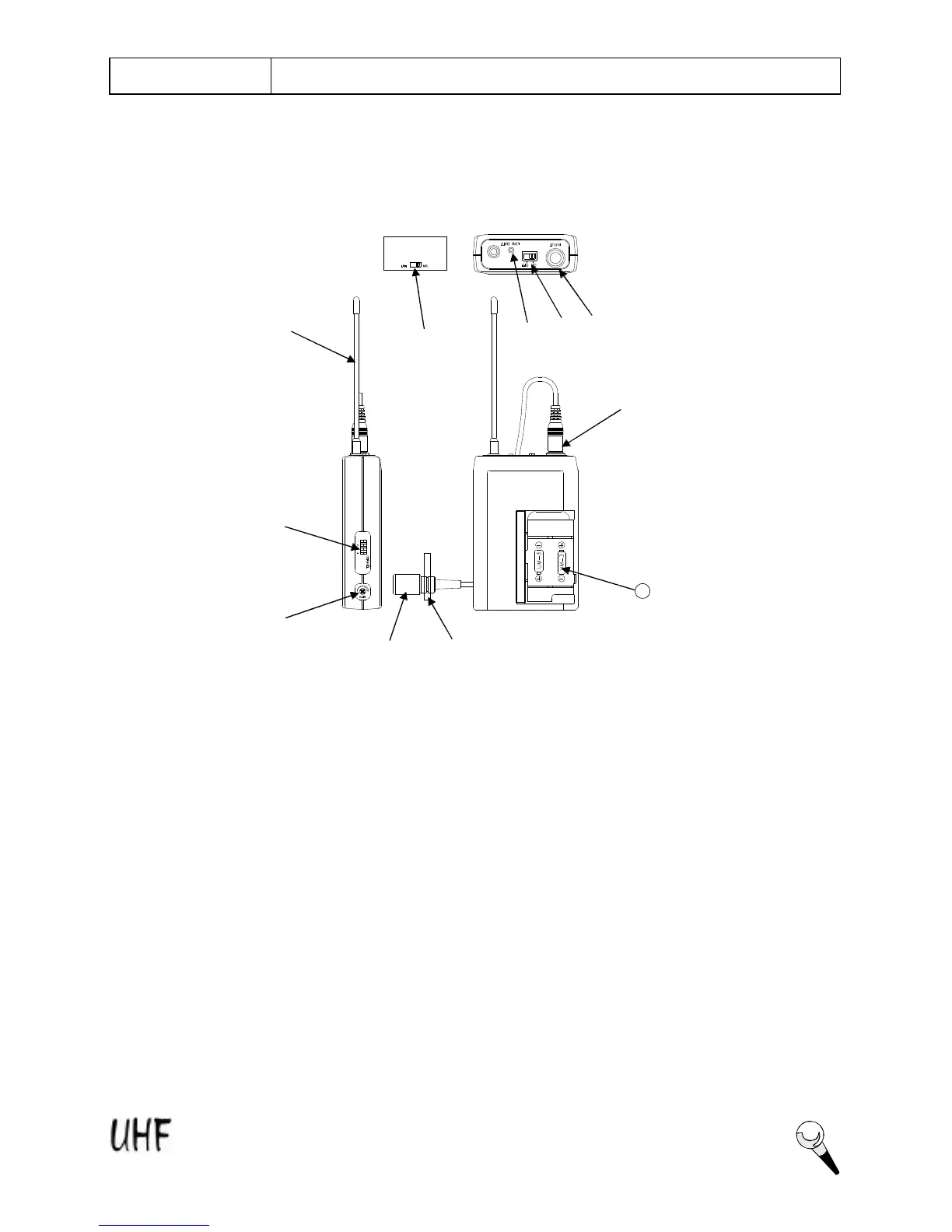

connector: The included electret lapel microphone is inserted into the
connector on transmitter.
2. On/Off Switch: Turns transmitter power on and off.
3. Low Battery LED: LED indicates battery life status. Switching the power to "ON", the LED
flashing once indicates that the transmitter has sufficient power. If the LED stayed on, it
indicates that the battery has insufficient power and should be changed soon. If the status
LED fails to flash, the battery is either dead or not positioned correctly, and you should correct
the positioning or change the battery.
4. Mic/Line Selector (optional for use with mini XLR connector) : The switch sets the
audio input either to microphone level or line level.
5. Antenna: Permanently connected, helical antenna.
6. Channel Selector: Changes transmitter Channel setting.
7. Gain: The rotary control adjusts the sensitivity of the transmitter’s audio to the level of the
connected lapel microphone or instrument.
8. Mic Unit: The uni-directional electret condenser unit features the wide frequency response
for warm, rich bass and clear sound.
9. Tie Clip: To clip on the tie or lapel for free-movement.
10. Cable: With mini XLR jack or 3.5j screw type plug cable to connect the transmitter.
11. Battery Compartment: Insert two AA batteries into the compartment and make sure that
the polarity of batteries is correct.
