jbc DIR-D Instruction Manual

0
c
P o w er 10%
350
Selected temp 350
o
C
A c t u al t e m p . 180
o
C
Sleep
Tool in the stand
A c t u a l t emp . 20
o
C
Tool in the stand after
sleep, No heat
Hibernation
0
c
Selected temp. 350
o
C
P o w e r 10%
350
4 Counters
5
Program version
Stat ion setti ngs
1 Temp unit Celsius
2 Maximum temp 400
0
C
3 Minimum temp 200
0
C
4 Nitrogen mode OFF
Tool 245
Tool setting s
1 Fix one temp ----
2 Temp levels set OFF
3 Sleep delay 0 min
Ba ck
5 Help text OFF
6
Beep ON
7 Change PIN
Tool 245
Back
4 Sleep temp 180
0
C
5
Hibern delay 30 min
6 Temp adjust +0
0
C
Ma in menu
Exit
1 Reset settings
2
Station settings
3 Tool settings
Tool 245
Count ers
1 Plugged hours 0
2 Working hours 0
3 Sleep hours 0
4 Hibernation hours 0
Ba ck
5 No tool hours 0
6
Sleep cycles 0
7 Desold cycles 0
Menu
Enter
Menu
Enter
Menu
Enter
Menu
Enter
Fixed temp. 350
o
C
Levels ºC 270 350 400
Tool 245
Tool setting s
1 Fix one temp ----
2 Temp levels set OFF
3 Sleep delay
Tool 245
Back
4 Sleep temp 180
0
C
5
6 Temp adjust +0
0
C
4 Counters
5
Program version
Hibern delay
Ma in menu
Exit
1 Reset settings
2
Station settings
3 Tool settings
Pedal Set Up P305
0 min
30 min
OK
350
ºC
Port
1
Power
45%
Temp. Levels
T245
250 350 380
17:14
OK
350
ºC
Port
1
Power
45%
Temp. Levels
T245
250 350 380
17:14
OK
350
ºC
Port
1
Power
45%
Temp. Levels
T245
250 350 380
17:14
· Change temperature
(from 90 to 450ºC)
· Select temperature levels
· Fix one temperature
· Change Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
· Change Hibernation delay
(from 0 to 60 min or no
hibernation)
Operation
The JBC Most Efficient Soldering System
Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user
can work at a lower temperature and improve the soldering quality. The tip temperature is further
reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip.

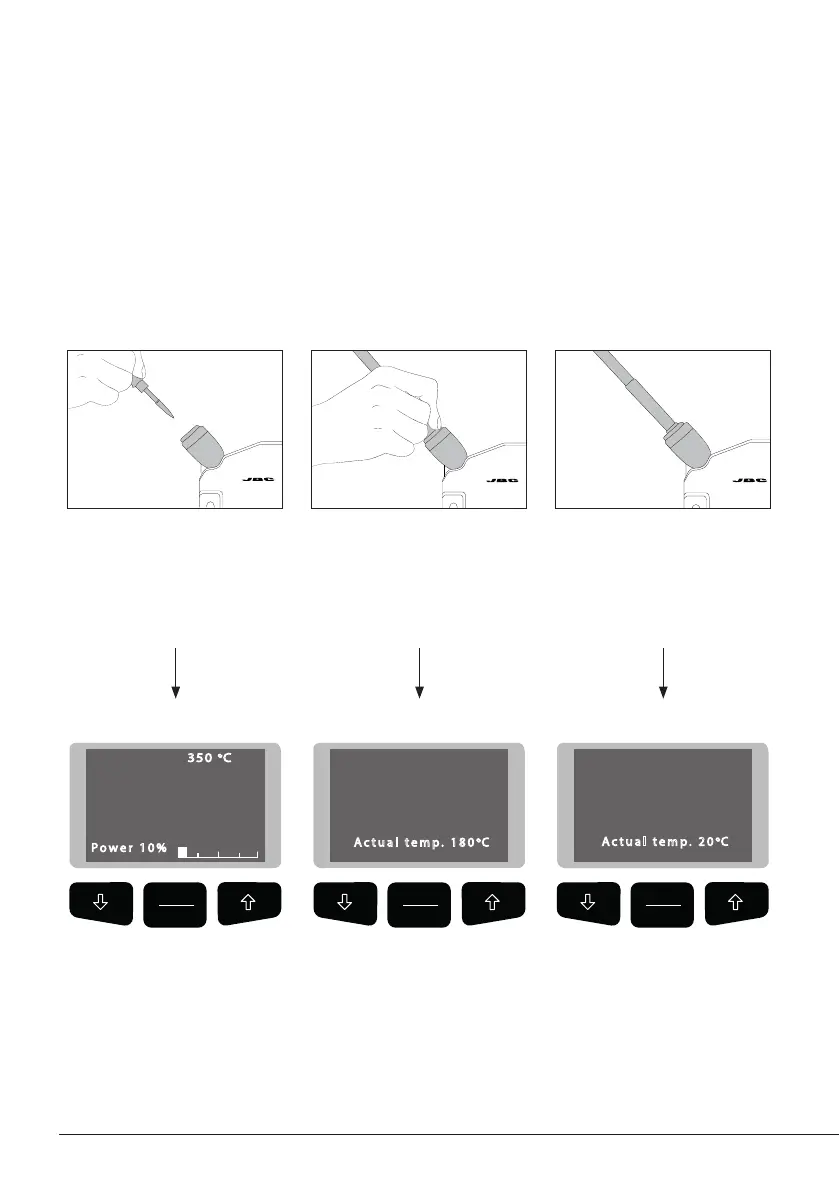

3. Hibernation1. Work 2. Sleep
When the tool is lifted from
the stand the tip will heat up
to the selected temperature.
When the tool is in the stand,
the temperature falls to the
preset Sleep temperature.
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
Long period
in the stand
6
