jbc DIR-D Instruction Manual

OK
TOOL
EARTHING FUSE
AUX
USE ONLY WITH A 250 V FUSE
OK
TOOL
EARTHING FUSE
AUX
USE ONLY WITH A 250 V FUSE
OK
TOOL
EARTHING FUSE
AUX
USE ONLY WITH A 250 V FUSE
Fuse
holder

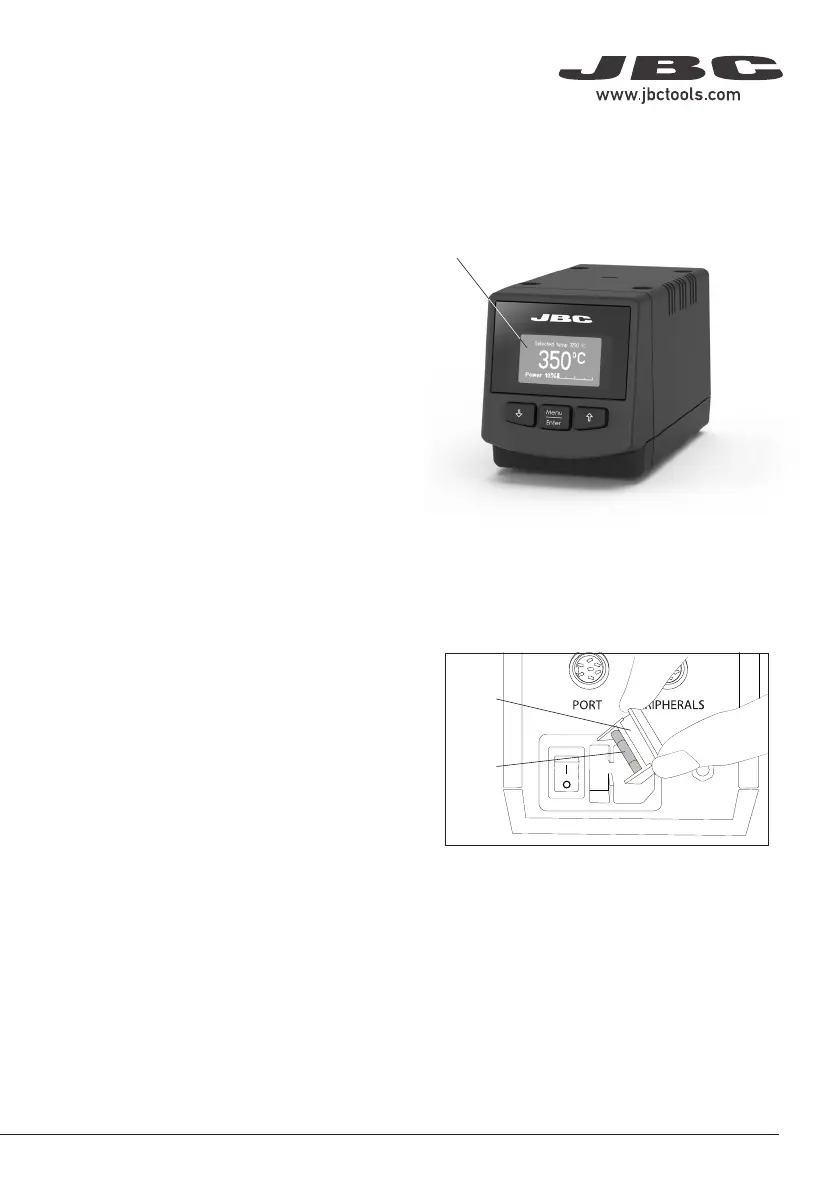

Before carrying out maintenance, always switch the device off and disconnect it from the mains.
Allow the equipment to cool down.
- Clean the station screen with a glass
cleaner or a damp cloth.
- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal parts.
- Periodically check that the metal parts of
the tool and stand are clean so that the
station can detect the tool status.
- Maintain tip surface clean and tinned prior
to storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat
transfer to the solder joint.
- Periodically check all cables and tubes.
- Replace any defective or damaged pieces.
Only use original JBC spare parts.
- Repairs should only be performed by a
JBC authorized technical service.
- Replace a blown fuse as follows:
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Insert the new fuse into the fuse holder
and return it to the station.
Maintenance
- When this warning appears on
the main screen Earthing Fuse must be
replaced
Clean
periodically
EARTH
FUSE
Fuse
holder
clean periodically
Fuse
9
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
