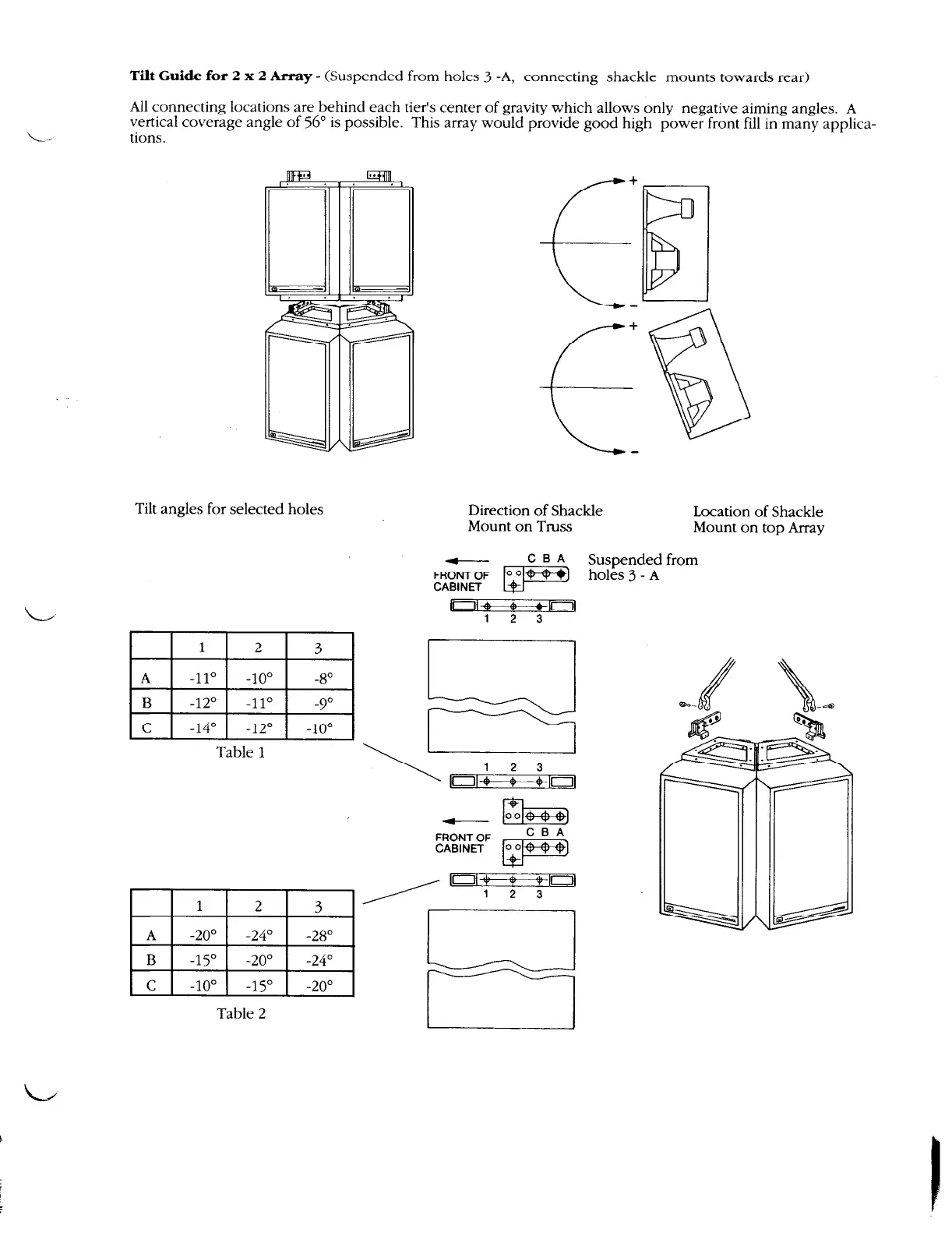

Tilt Guide for 2 x 2 Array -
(Suspended from holes 3 -A, connecting shackle mounts towards rear)
All connecting locations are behind each tier’s center of gravity which allows only negative aiming angles. A
vertical coverage angle of
56”
is possible. This array would provide good high power front fill in many applica-
tions.
Tilt angles for selected holes
Table 1
+
Direction of Shackle Location of Shackle
Mount on Truss Mount on top Array
Suspended from
holes
3 -
A
rob+++u]
1 2 3
1
1 2
3
I
I I
A
-20” -24” -28”
B -15”
-20” -24”
C -10” -15”
-20”
Table 2
