A JBL Professional

two-way studio

monitor is the first to

incorporate a high-

frequency compres-

sion driver with an

acoustic lens.

1962

1965

JBL advances the state of the

solid-state art with T-Circuit,

making high-output solid-state

amplification possible.

1969

JBL powers Woodstock, and

Woodstock changes everything.

Harman International

acquires

JBL, beginning a period of rapid

international growth.

Pro sound comes home. The

popular L-100, derived directly

from JBL Professional studio

monitors, is introduced.

1958

JBL introduces Paragon,

a stereophonic home

loudspeaker that uses a

cylindrical reflecting system

for better stereo imaging.

1976

The U.S. recording industry ranks

JBL studio monitors #1 in a

Billboard

magazine survey.

JBL Professional

ships the industry’s

first four-way

studio monitors.

1973

Paragon

Century L-100

4435

1979

JBL patents a new

diaphragm technology

to control high-frequency

resonances.

1981

JBL introduces studio

monitors with Bi-Radial

horn technology. They

achieve flat power response,

a longstanding goal of the

recording industry.

Pure-titanium-dome

tweeters raise

the bar for high-

frequency response.

1982

1983

Lucasfilm

selects

JBL to develop

commercial

theater systems

that meet rigid

THX standards.

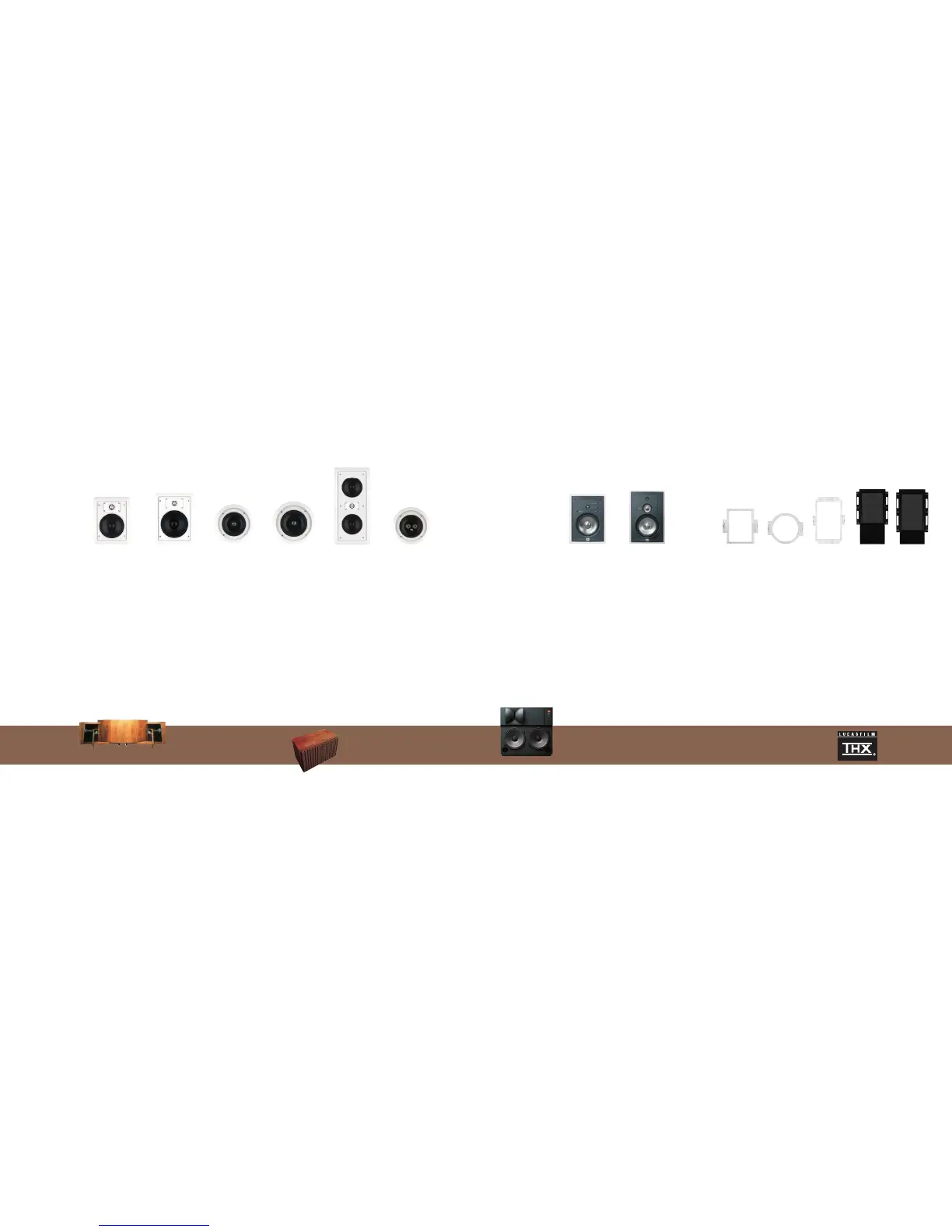

DESCRIPTION SS6 SS8 SS6C SS8C SSLCR SS6DT

2-Way In-Wall Speaker 2-Way In-Wall Speaker 2-Way In-Ceiling Speaker 2-Way In-Ceiling Speaker 2-Way In-Wall Speaker 2-Channel, Dual-Tweeter/Dual-

Voice-Coil In-Ceiling Speaker

FREQUENCY RESPONSE 38Hz – 20kHz (–10dB) 30Hz – 20kHz (–10dB) 40Hz – 20kHz (–10dB) 32Hz – 20kHz (–10dB) 40Hz – 20kHz (–10dB) 40Hz – 20kHz (–10dB)

SPEAKER 6-1/2" Polymer-coated- 8" Polymer-coated- 6-1/2" Polymer-coated- 8" Polymer-coated- Dual 5" polymer-coated- 6-1/2" Polymer-coated-

CONFIGURATION aluminum woofer; aluminum woofer; aluminum woofer; aluminum woofer; aluminum woofers; aluminum woofer;

1" pure-titanium-dome tweeter, 1" pure-titanium-dome tweeter, 1" pure-titanium-dome tweeter 1" pure-titanium-dome tweeter 1" pure-titanium-dome tweeter, dual 3/4" pure-titanium-

EOS waveguide EOS waveguide EOS waveguide dome tweeters

MAX. RECOMMENDED 100 Watts 120 Watts 100 Watts 120 Watts 120 Watts 100 Watts total

AMPLIFIER POWER* (50 WPC)

SENSITIVITY 88dB 90dB 88dB 90dB 88dB 89dB

2.83V @ 1M

NOMINAL IMPEDANCE

8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms

PLATE SIZE 8-1/2" x 11" 10-1/8" x 13-1/8" 9-3/16" (diameter) 10-7/8" (diameter) 15-3/8" x 7-1/2" 9-3/16" (diameter)

(W X H) 216mm x 279mm 257mm x 333mm 233mm 276mm 391mm x 191mm 233mm

MOUNTING CUTOUT SIZE 7-1/8" x 9-11/16" 8-7/8" x 11-13/16" 7-7/8" (diameter) 9-1/2" (diameter) 13-7/8" x 6-3/16" 7-7/8" (diameter)

(W X H) 181mm x 246mm 225mm x 300mm 200mm 241mm 352mm x 157mm 200mm

MOUNTING DEPTH 3-7/8" 4" 4-1/4" 4-1/4" 3-7/8" 4-1/4"

98mm 102mm 108mm 108mm 98mm 108mm

WEIGHT 4.7 lb/2.4kg per speaker 5.5 lb/2.5kg per speaker 4.2 lb/1.9kg per speaker 4.6 lb/2.1kg per speaker 5.7 lb/2.6kg per speaker 4.2 lb/1.9kg per speaker

DESCRIPTION P81 P941

7-1/2", 2-Way In-Ceiling 9", 3-Way In-Ceiling Speaker

Speaker

FREQUENCY RESPONSE 40Hz – 20kHz (–10dB) 32Hz – 20kHz (–10dB)

SPEAKER 1" Pure titanium dome; 1" Pure titanium dome

CONFIGURATION 7-1/2" OCC; SSP (Straight-Line 9" OCC; SSP (Straight-Line

Signal Path

™

) Signal Path

™

)

MAX. RECOMMENDED 15 – 150 Watts 15 – 200 Watts
