If no audio from the wireless subwoofer can be heard, manually
pair the subwoofer:
1. Turn on the soundbar and the subwoofer. If the connection is
lost, the LED indicator on the subwoofer blinks slowly.
2. Press the CONNECT button on the subwoofer to enter pairing
mode. The LED indicator on the subwoofer blinks quickly.
3. Press and hold DIM DISPLAY button on remote control for
5 seconds, followed by short press on BASS+, and BASS-
button in sequence. Panel display will show “PAIRING”
If the pairing succeeds, the LED indicator on the subwoofer
lights up and the soundbar display will show “DONE”.
If the pairing fails, the indicator on the subwoofer blinks slowly.
4. If the pairing fails, r
epeat the steps above.

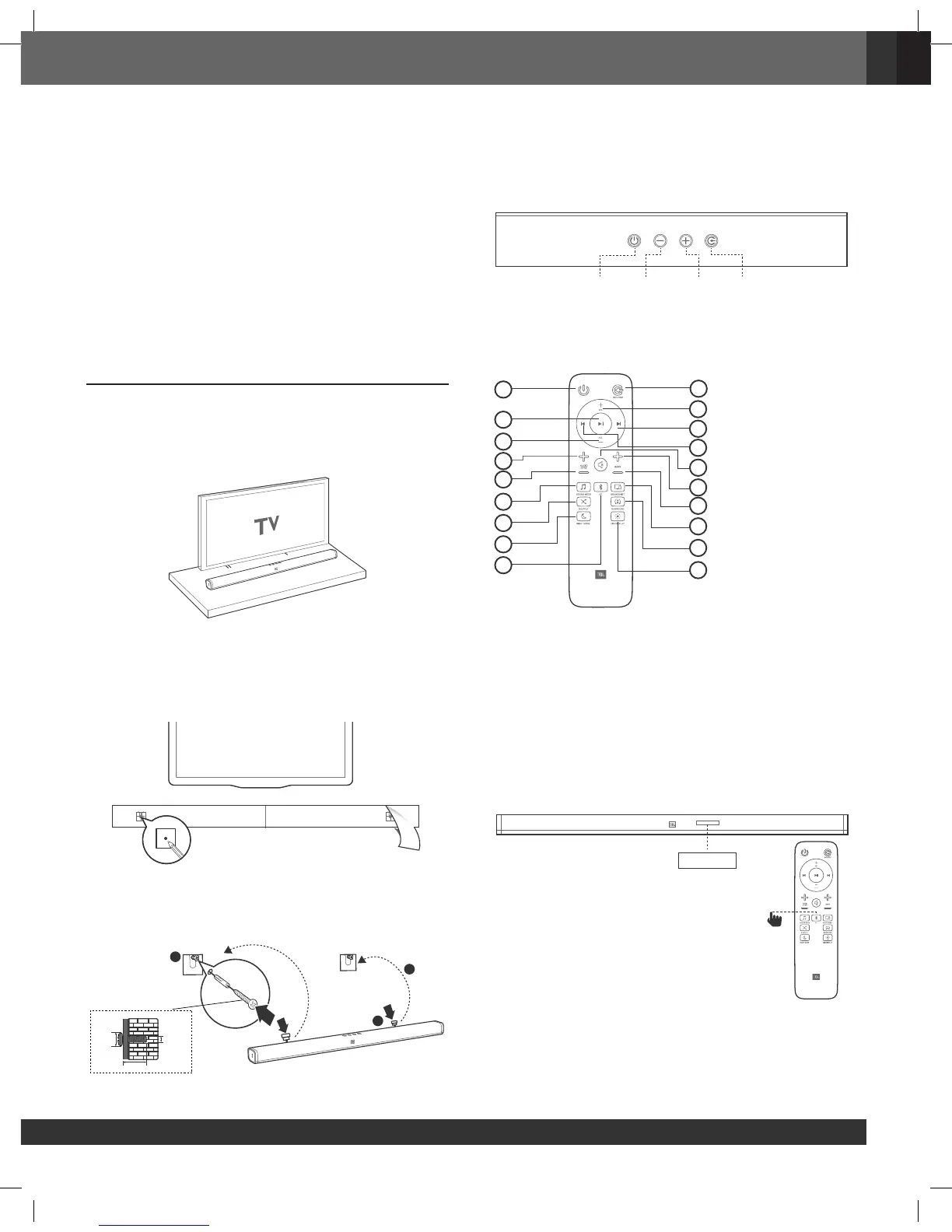

4. PLACE YOUR SOUNDBAR
4a. Place the Soundbar on the table
4b. Wall mount the Soundbar
Use tape to stick the wall-mounted paper guide on the wall, push
a pen tip through the center of each mounting hole to mark the
wall-mounted bracket location and remove the paper.
TV
Screw the wall mount brackets on the pen mark; screw the
threaded mounting post into the back of the soundbar; then hook
the soundbar on the wall.
≤8 mm/
0.31"
4mm/
0.16"
≥35 mm/1.4"
1
2
3
5. USE YOUR SOUNDBAR SYSTEM
1. To Control
a. Top panel
b. Remote Control
7
6
4
2
1
5
3
8
9
13
15
17
19
10
11
12
14
16
18
* Switch between HDMI ARC/ HDMI 1/ HDMI 2/ HDMI 3/ Optical/ AUX/ Bluetooth/
USB
** Switch between Standard/ music/voice/ movie/ sports sound mode or press and
hold 5 seconds to reset default audio setting
*** For USB playback only; switch between shufe/ repeat all/ repeat one/ off
2. To use Bluetooth
2a. Press Bluetooth (BT) button on your remote control
to start Bluetooth pairing
PAIRING
1) Power
2) Source*
3) Play / Pause
4) Volume +
5) Volume -
6) Previous
7) Next
8) Audio Sync +
9) Audio Sync -
10) Mute
11) Bass +
12) Bass -
13) Sound mode**
14) Soundshift On / off
15) Shufe / Repeat***
16) Surround On / off
17) Night mode On / off
18) Dim display
19) Bluetooth
Power Volume
Down
Volume
Up
Source

JBL Bar 3.1 Specifications

General

Audio decoders	-
RMS rated power	450 W
Audio output channels	3.1 channels
Subwoofer included	Yes
Subwoofer sensitivity	103 dB
Receiver included	No
Product color	Black
Frequency range	35 - 20000 Hz
Apple docking compatibility	Not supported
HDMI version	1.2
Bluetooth version	4.2
HDMI ports quantity	3
Connectivity technology	Wired & Wireless
Digital audio optical in	1

Weight and Dimensions

Depth	78 mm
Width	1018 mm
Height	58 mm
Soundbar weight	2300 g
Subwoofer width	305 mm
Subwoofer height	440 mm
Subwoofer weight	12100 g
