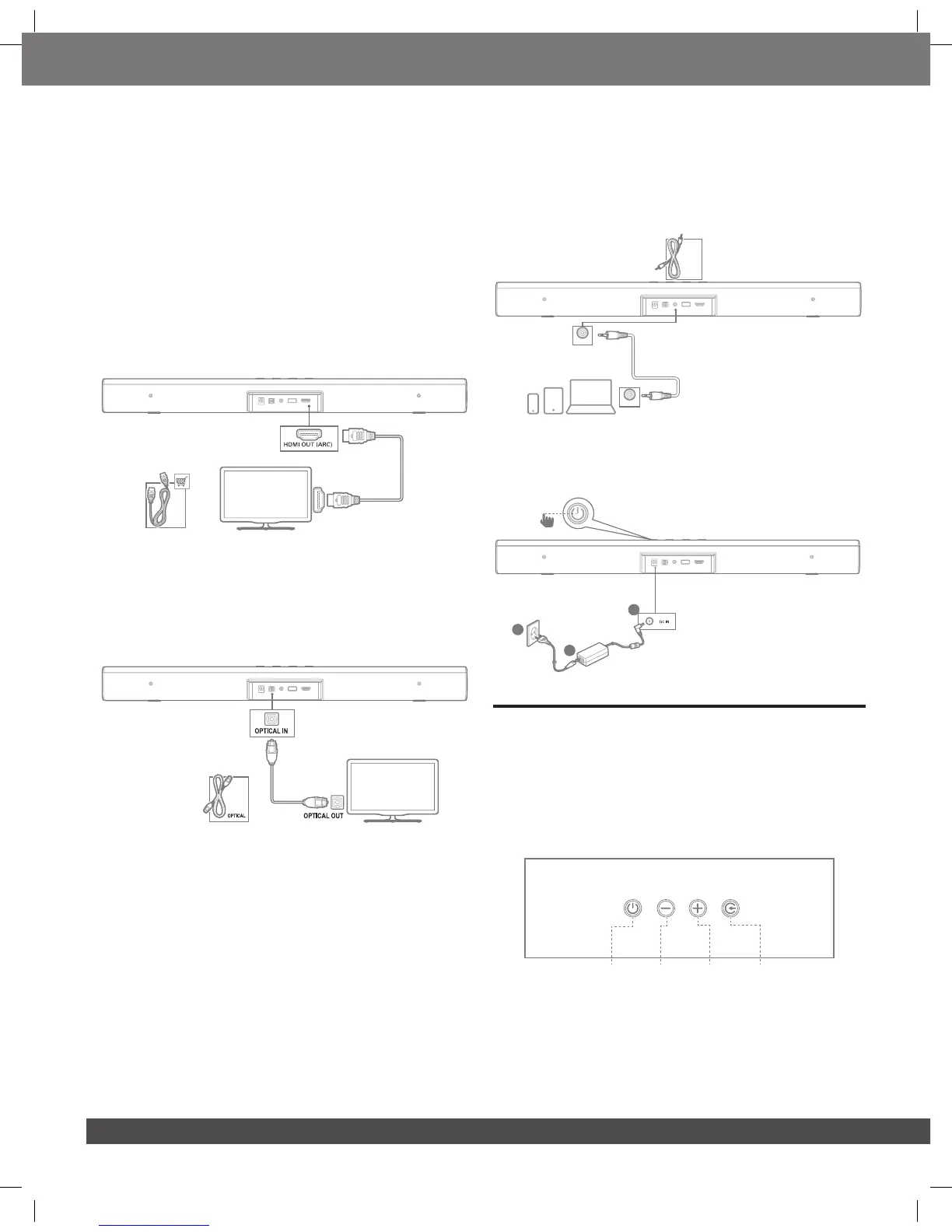

4. CONNECT YOUR SOUNDBAR
This section helps you connect your soundbar to a TV and other
devices, and set up the whole system.
Connect Soundbar to your TV
Connect your soundbar to a TV. You can listen to audio from TV
programs through your soundbar.
Connect to TV through HDMI (ARC)
An HDMI connection supports digital audio and is the best option
to connect to your soundbar. If your TV supports HDMI ARC, you
can hear the TV audio through your soundbar by using a single
HDMI cable.
HDMI (ARC)
HDMI
Note: Do conrm that the HDMI CEC function on your TV
is turned on.
Connect to TV through Optical
An Optical connection supports digital audio and is an alternative
to an HDMI audio connection.
Note: Conrm to set your TV audio settings to support “external
speakers” and disable the built-in TV speakers.
Connect Soundbar to other devices
Connect devices through analog audio cables
Using an analog cable, connect the AUX IN (3.5mm jack) on your
soundbar to the AUX IN/ 3.5mm connectors on your portable
devices.
AUX-IN
AUX-OUT
AUX cable
How to power on your soundbar system
1
3
2
5. USE YOUR SOUNDBAR
SYSTEM
1. To Control
a. How to use top panel controls
Power Volume
Down
Volume
Up
Source

JBL BAR STUDIO Specifications

General

Audio decoders	-
RMS rated power	30 W
Audio output channels	- channels
Surround modes quantity	1
Number of woofer drivers	2
Woofer diameter (imperial)	2 \
Signal-to-Noise Ratio (SNR)	90 dB
Tweeter diameter (imperial)	1.5 \
Subwoofer included	No
Bluetooth	Yes
HDMI version	1.4
Bluetooth version	4.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
Product color	Black
Cables included	AUX, Optical

Weight and Dimensions

Depth	86 mm
Width	614 mm
Height	58 mm
Soundbar weight	1400 g
