JBL CM42 - Component Exploded View; Cabinet and Mounting Components; Grille and Front Assembly; Driver and Baffle Components

CM42/42AW/42V

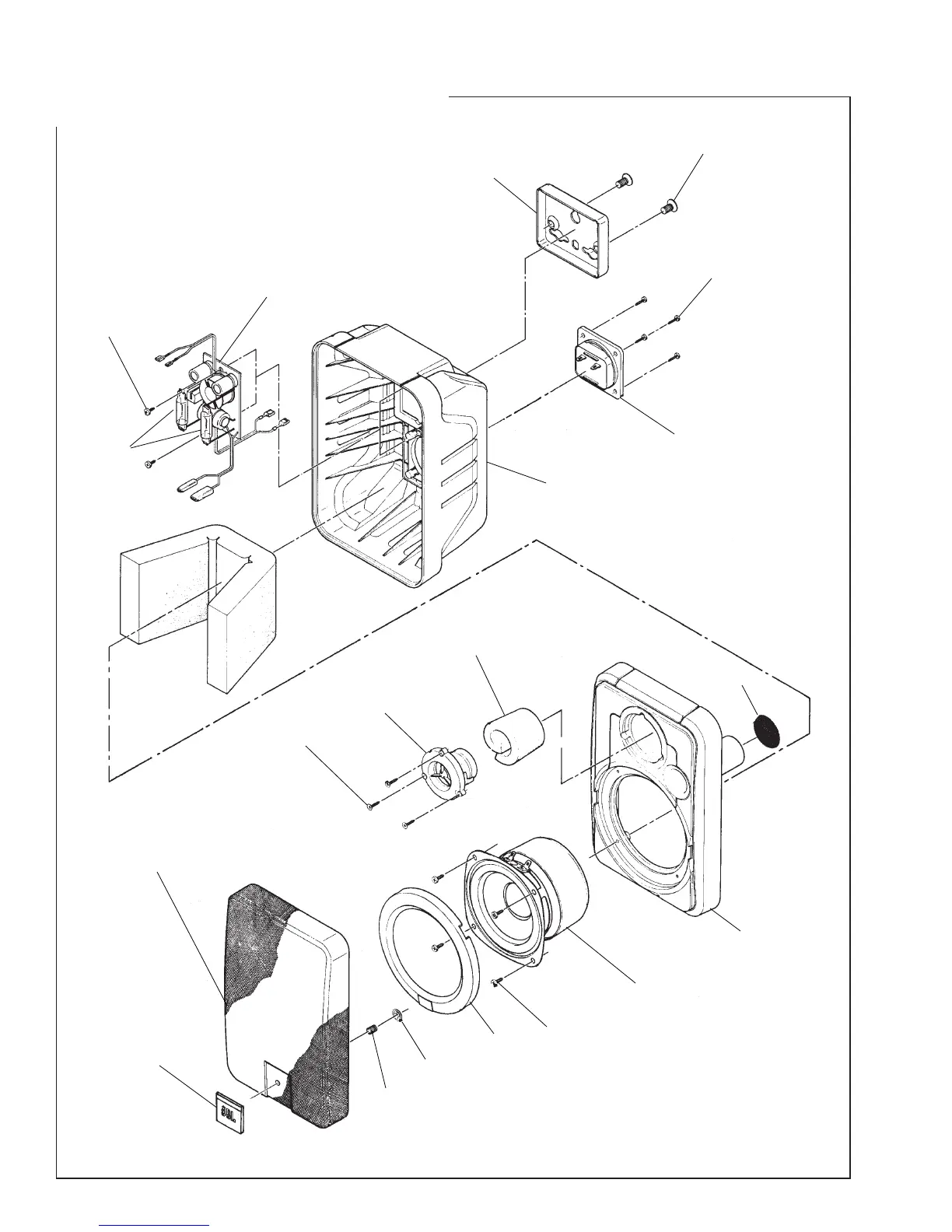

COMPONENT EXPLODED VIEW
Spring
Retainer
Terminal Cup
CM42/42V (T762)
CM42AW (T762-1)
Baffle
(Not For Sale)
Screen
(Ref)
Driver, Low Freq
CM42/42V (CM40WO)
CM42AW
(B10AH85PR-03DW)
Driver, High Freq
CM42/42AW/42V
(DT397TH-2)
Trim Ring
P04067
Lamp (2)
SK3
Cabinet
(Not For Sale)
Logo
SZ532
NOTE: FOR WOOFER REMOVAL, COBALT BLUE TRIM RING MUST BE CAREFULLY
PRIED OUT OF ITS RECESS TO ACCESS MOUNTING SCREWS
Pad
Screw (3)
06-Y31202
Screw (4)
(06-T41202)
No.8 x 1/2
PPH BLK
Screw (2)
(06-M61202)
1/4-20 x 1/2
PPH BLK
Mounting Plate
CM42/42V (BLK) WI0701-B
CM42/42V (WHT) WI0701-W
CM42AW (BLK) WI0701-1B
CM42AW (WHT) WI0701-1W
Screw (2)
(06T-T41202)
No.8 x 1/2
PNHD PH BLK
Network
CM42/42V (WI0722)
CM42AW (WI0727)
Screw (4)
(06-T31202)
No.6 x 1/2
PPH BLK
Grille
CM42/42V (BLK) WI0720-B
CM42AW (BLK) WI0720-1B
CM42/42V (WHT) WI0720-W
CM42AW (WHT) WI0720-1W
CM42/42AW/42V
CM42/42AW.qxd 3/1/99 11:38 AM Page 2
